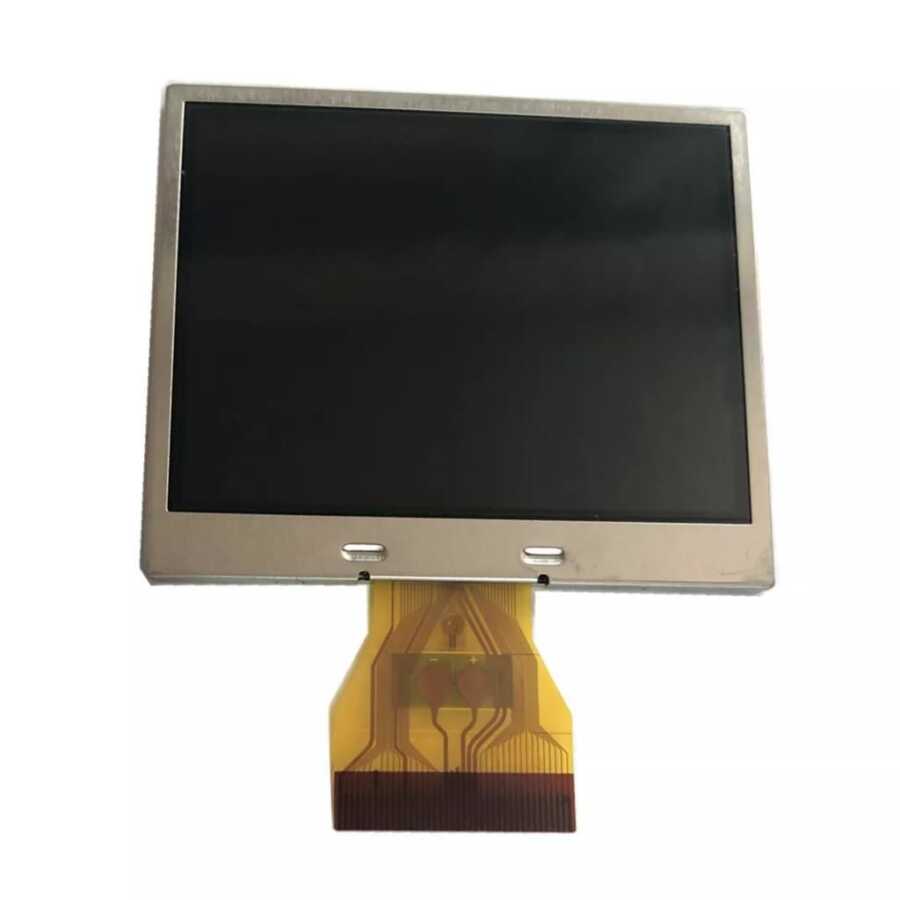

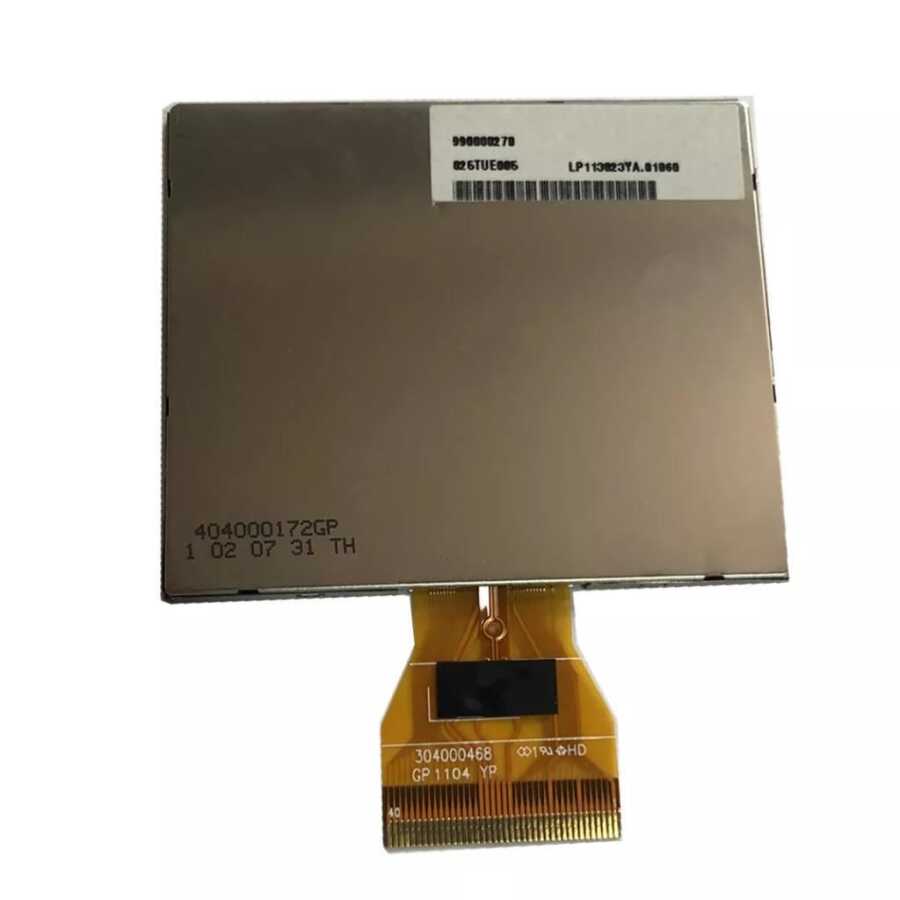

TPO 2.5 Inch TFT LCD Screen 990000270
TPO brand 2.5" TFT LCD Screen. It is an active matrix color TFT screen module. LTPS (Low Temperature Poly Silicone) TFT Both horizontal and vertical scanning are reversible and are controlled by serial interface commands.
This product, which has a 40-pin flat cable output, can be used with Raspberry Pi. It is an excellent product especially for those who want to see high quality images on the screen. This screen with vivid color quality has 8 bit RGB (16 M color) capacity.
Specifications:
- Screen Size: (Diagonal) 2.46 inches
- Image Type Transmissive -
- Active Area (HxD) 49.946 x 37.56 mm
- Number of Dots (HxD) 960 x 240 dots
- Dot spacing (HxV) 0.052 x 0.1565 mm
- Color Arrangement: RGB Delta -
- Color Numbers: 8-bit RGB (16M colors) -
- Outline size: (HxVxD) 56.2 x 47.8 x 2 ,53 mm
You can access the connection diagram and all detailed information about the product from the datasheet link below.
