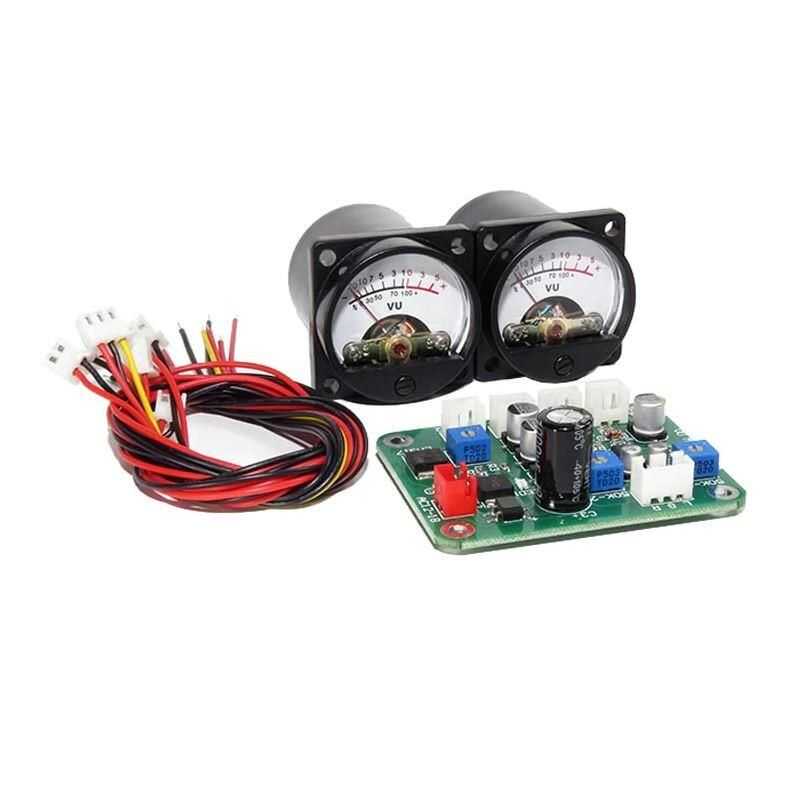

TZT Sound Meter Driver + 2 VU meters
TZT Sound Meter Driver + 2 VU meters. 35 mm for Phone, Computer, Pre-amp, Mp3 It is a VU meter.
When connecting, set the DC12V backlight voltage to the wrong VU Be especially careful not to connect it to the meter, because the current will burn the meter head.
Specifications:
- DC Internal Resistance: 650Ω±15%
- Calibration Position: +5
- Accuracy: Level 5
- DC Current: 500uA±15%
- VU Meter Backlight voltage: AC6V-12V
Wiring Diagram
Dimensions
