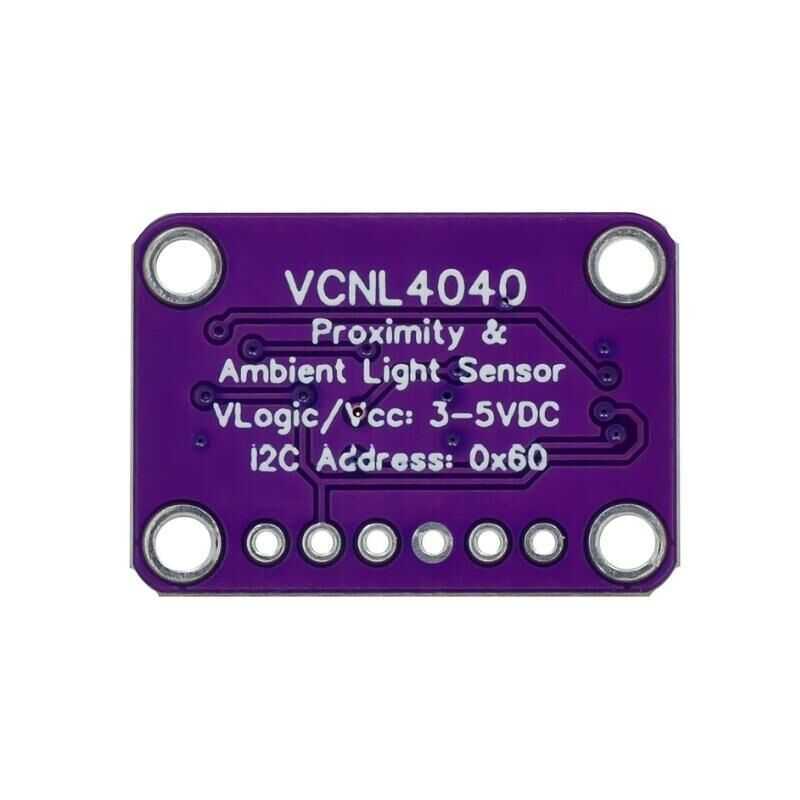

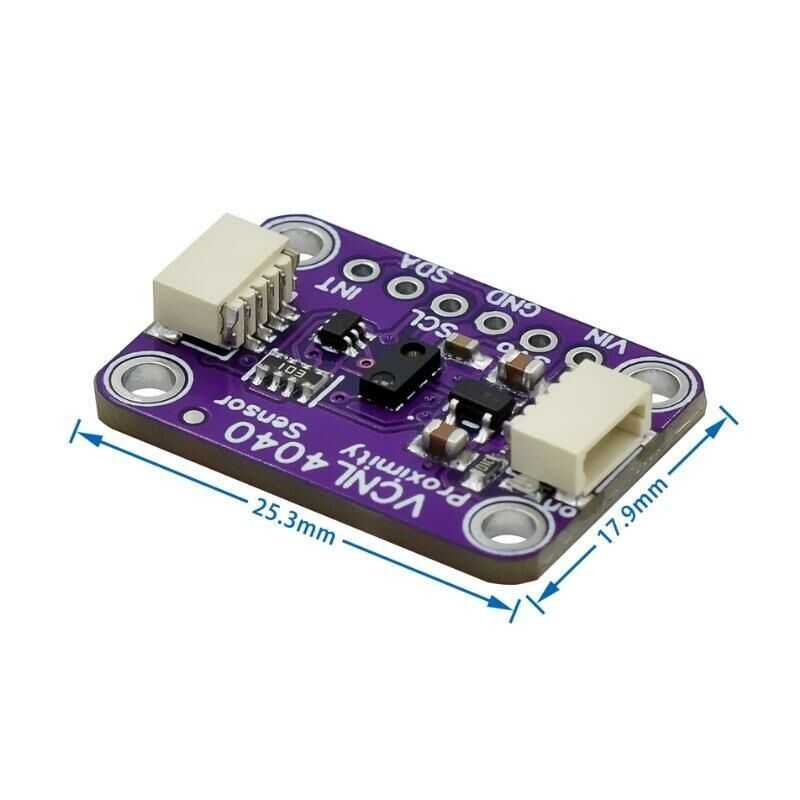

VCNL4040 Proximity and Lux Sensor
VCNL4040 has a proximity sensor that operates from approximately 0 to 200 mm (approximately 7.5 inches) and 0.0125 to 6553 It is a convenient 2-in-1 sensor with a light sensor in the lux range. It is a great sensor for situations where two measurements are required at the same time.
There is a JST-SH connection connector input on the product for those who do not want to solder outside the connection pins.

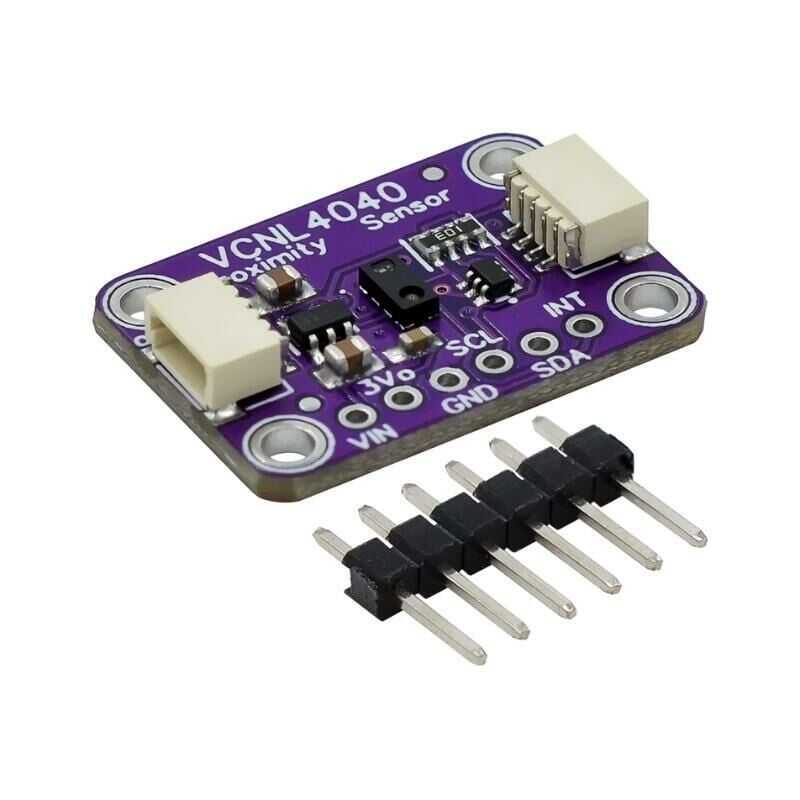

Connection:
- VCC: 2.7V-5V
- GND: Ground
- SCL: I2C clock pin
- SDA : I2C data pin
- 3Vo: This is the 3.3V output from the voltage regulator, you can output up to 100mA if you want.
