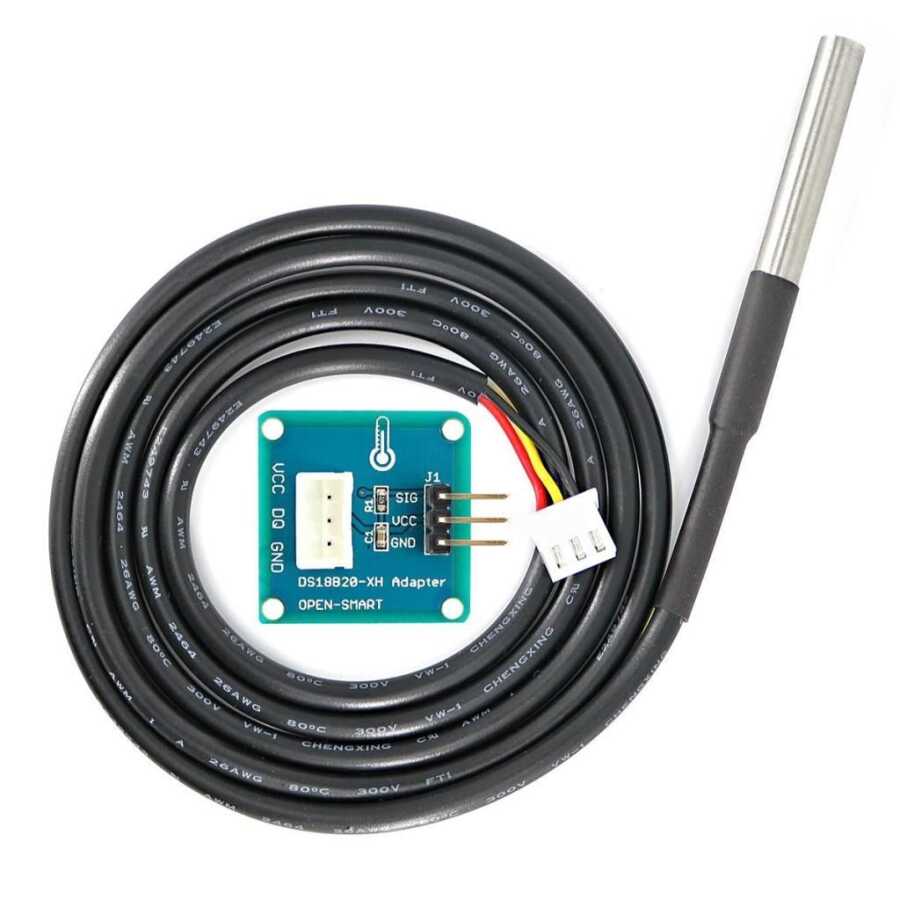

Waterproof DS18B20 Digital Temperature Sensor Module 3-Pin
The kit includes a waterproof digital temperature sensor DS18B20 and a DS18B20 adapter module and Can measure directly in water. With the pull-up resistor on the board, the adapter module can be directly connected to most microcontrollers and is widely used in temperature monitoring for fish tanks, equipment, machinery, greenhouses.
Specifications:
-
Operating voltage: 3.2 ~ 5.25V DC
-
Operating current: 2mA (max)
-
Application: Widely used in temperature monitoring for fish tanks, equipment, machinery, greenhouses
-
Arduino library: OneWire
-
Resolution: 9~12 bit programmable
-
Measurement range: -55 ~ 110'C
-
Measurement accuracy: 0.5'C @ -10~+80'C; 2'C @ -55 ~ + 110'C
-
Output cables: yellow (DATA), red (VCC), black (GND)
-
Output socket of the sensor: XH2.54-3P
- Sensor cable length: 100cm
