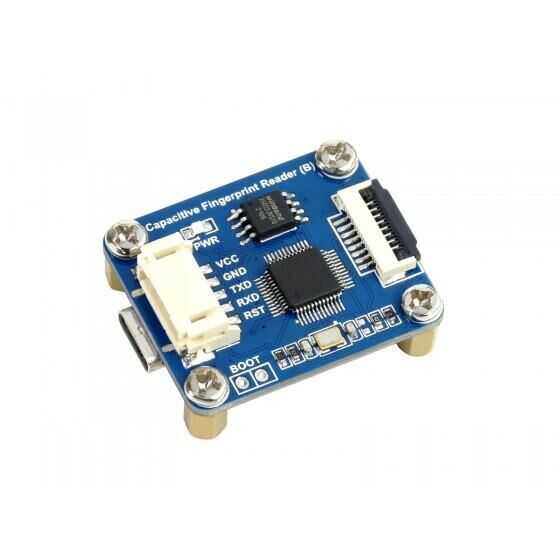

Waveshare Capacitive Fingerprint Reader High Sensitivity (B)
Waveshare Capacitive Fingerprint Reader High Sensitivity (B) is a fast and stable capacitive fingerprint module suitable for integration applications. Combining high-performance Cortex core processor, high-security fingerprint algorithm and advanced semiconductor fingerprint sensor, this module provides fingerprint registration, image processing, template creation and storage, fingerprint matching and searching, etc. It is designed as a smart integration module with functional functions.
Features:
- Operating Voltage: 3.3-5V
- Operating Current : <40mA
- Image Resolution : 208x288
- Detection Area : 14.6x10.6mm
- Fingerprint Capacity : 3000
- Pairing Time : 0.5s
- Connection Port: UART, USB
- Baud (communication) rate: configurable as 9600, 19200, 38400, 57600, 115200, 230400, 460800, 921600bps, default comes as 115200bps .
Pinout :
-
VCC: Power input (3.3V/5V)
-
-
RX: UART data input
-
TX: UART data output
-
RST: Reset pin
Size :
