WF-1180 AC220V Adjustable Voltage Regulator with Temperature Control

WF-1180 AC220V Adjustable Voltage Regulator with Temperature Control

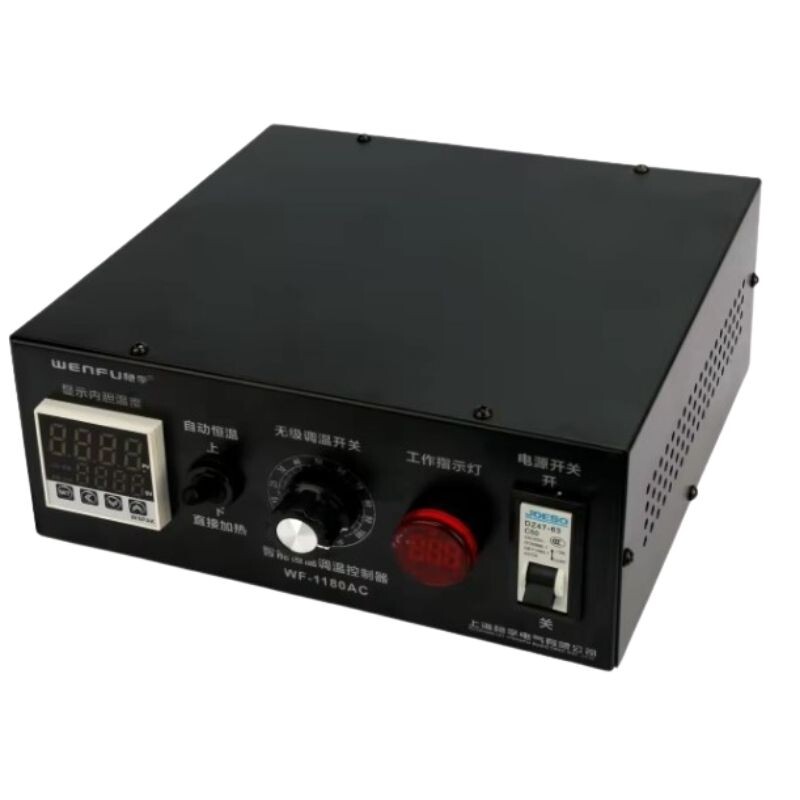

WF-1180 AC220V Adjustable Voltage Regulator with Temperature Control is a voltage regulator with a temperature control card inside. Rated current is 25 amps. It is powered by AC 220V. The device, which works with AC 220V, is generally used in heating furnaces etc. is used with heating equipment.

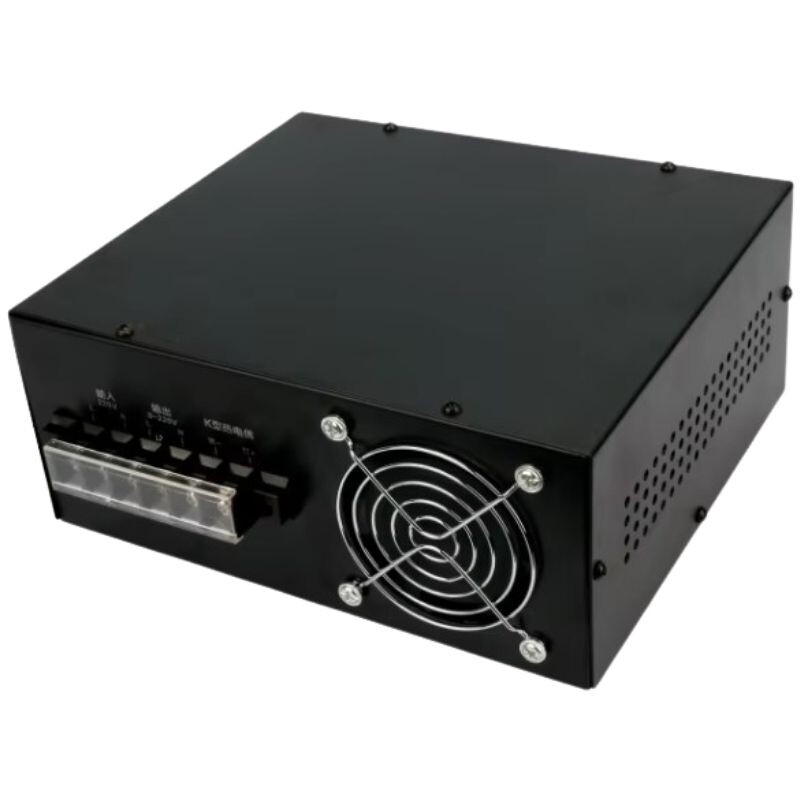

As a connection socket SV 5.5-6 4-6mm insulated cable ends you can use.

Features

• Model: WF-1180
• Input Voltage: AC 220V
• Rated Current: 25A
• Output Voltage 0-220V AC (Adjustable)
• Adjustable Temperature: 0 ~ 999°C
• K-Type Thermocouple Temperature Measurement Range: 0 ~ 800°C
• Peak Power: 5000W
• Dimensions: 23.5x20.5x11.5 cm
• Weight: 2.5 Kg
