Wind speed sensor voltage output 0-4 V Anemometer

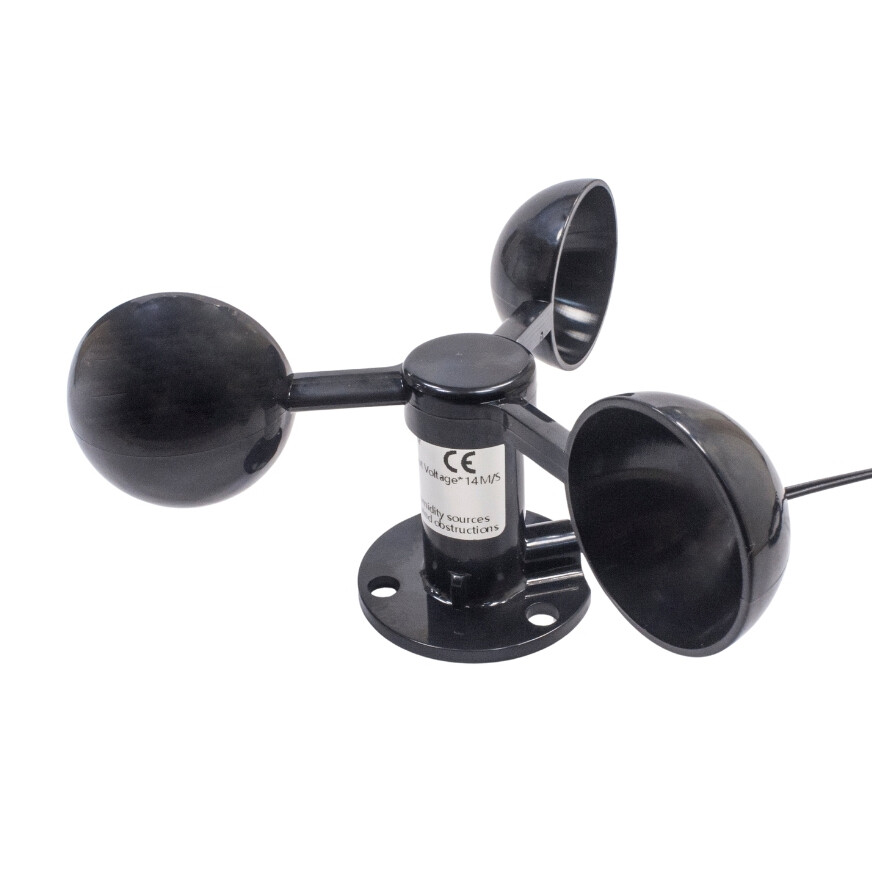

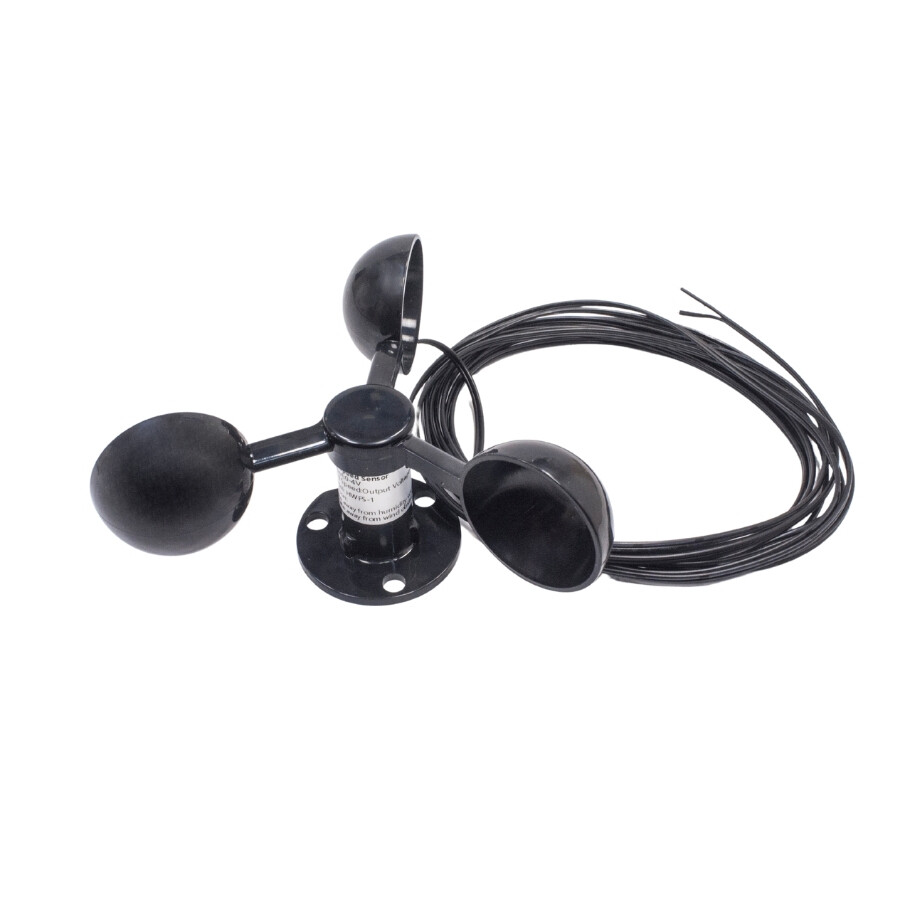

Wind speed sensor voltage output 0-4 V (Anemometer); It is a product that can output voltage up to a maximum of 4V under the influence of wind. The product consists of two parts. The part attached to the upper part rotates with the wind and rotates the DC generator in the lower part, thus obtaining DC voltage. The higher the wind speed, the higher the output voltage. There is approximately a 10% margin of error. There are 3 fixing holes on the product, so the product can be mounted wherever desired.
Note: The product is produced to be used for project purposes with Arduino or different microcontrollers. It cannot be used in professional meteorological measurements.
Link
- Black Cable: Gnd
- Black Striped Cable: Connects to the AD port of the microcontroller
- Cable length: 3m
Features
- Output: 0-4V
- Test Range: 0-56 m/s
- Model: HWFS-1
- Margin of Error: ± 10%
- Height (base to center): 49mm
- Central Canada Distance: 80mm
- Wing Diameter: 40mm
