XH-M122 AC/DC Input Adjustable Voltage Regulator
AC / DC input and Supports output linear power, allows inputting AC/DC 5-16V and output voltage DC0-15V, output current 0-1A. 0V, double potentiometer, one is used to adjust the voltage, the other is used to adjust the current, the adjustment function can be turned OFF. SMD LED indicator shows your working status, designed with constant voltage mode and constant current mode, short circuit protection.
Applications:Suitable for regulating all kinds of voltage producing precision equipment, DIY adjustable power supply and constant current source.
Technical Specifications
Input power: AC / DC 5 ~ 16V
Adjustable output: DC 0 ~ 15V
Adjustable voltage range: 0 ~ 15V (state can be off)
Adjustable current range: 0 ~ 1A (state can be closed)
Output indicator: 2 LED lights
Output current: 1A maximum
Output power: 15W maximum

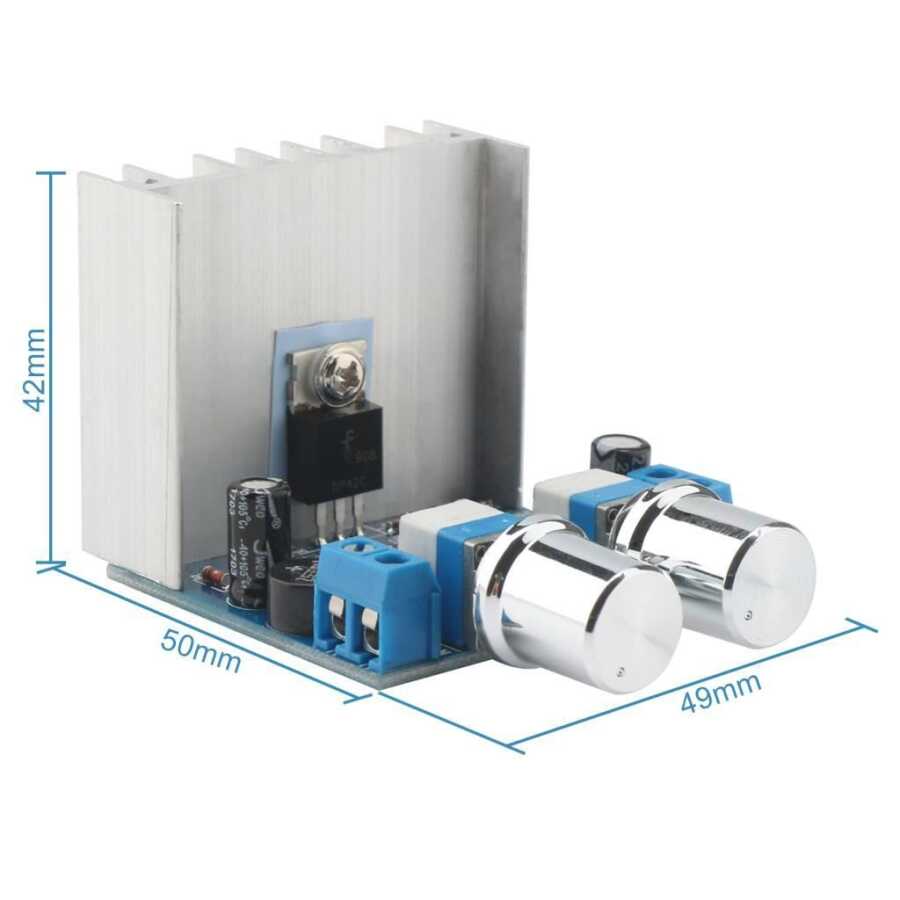

Dimension: 50 x 48 x 42mm (not including potency)
