XH-M405 8A Voltage Reducer Regulator Card 200W

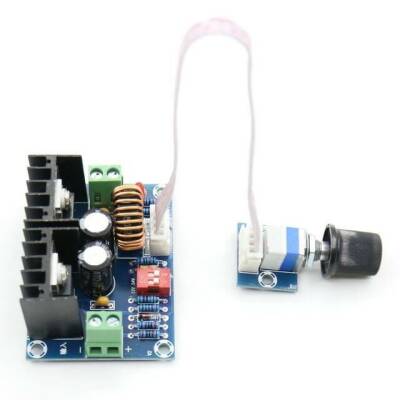

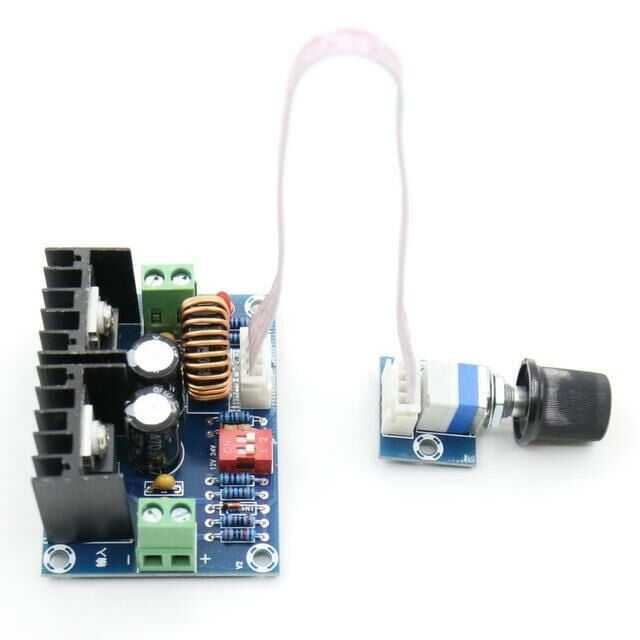

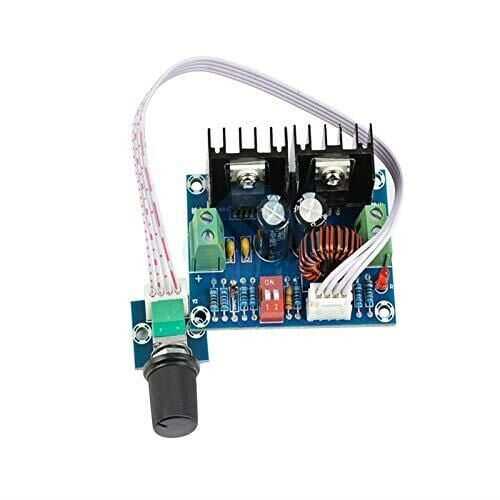

XH-M405 voltage reducer is a step down regulator circuit. It converts the input voltage between 4-40V into adjustable output voltage between 1.25-36V. The maximum power withstand is 200 watts. It is very easy to use with the potentiometer on it. For long-term use above 3A, an extra cooler is required. It can be used with a fan.
Technical Specifications:
- Product number XH-M405
- Voltage regulation method PWM modulation
- Input voltage DC4-40V
- Output range DC1.25-36V
- Maximum current 8A
- Maximum power 200W
- Conversion efficiency 94%

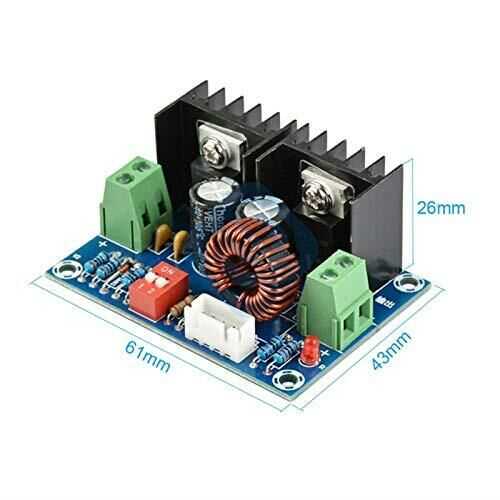

- Physical size 61*43*27mm
