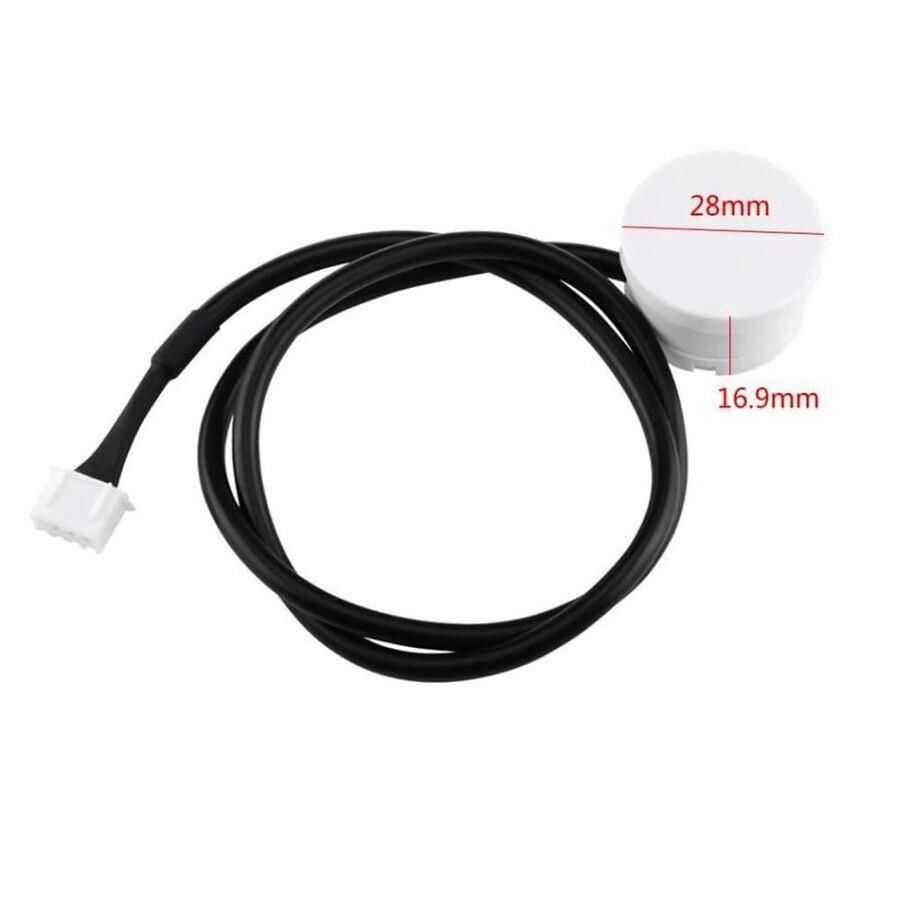

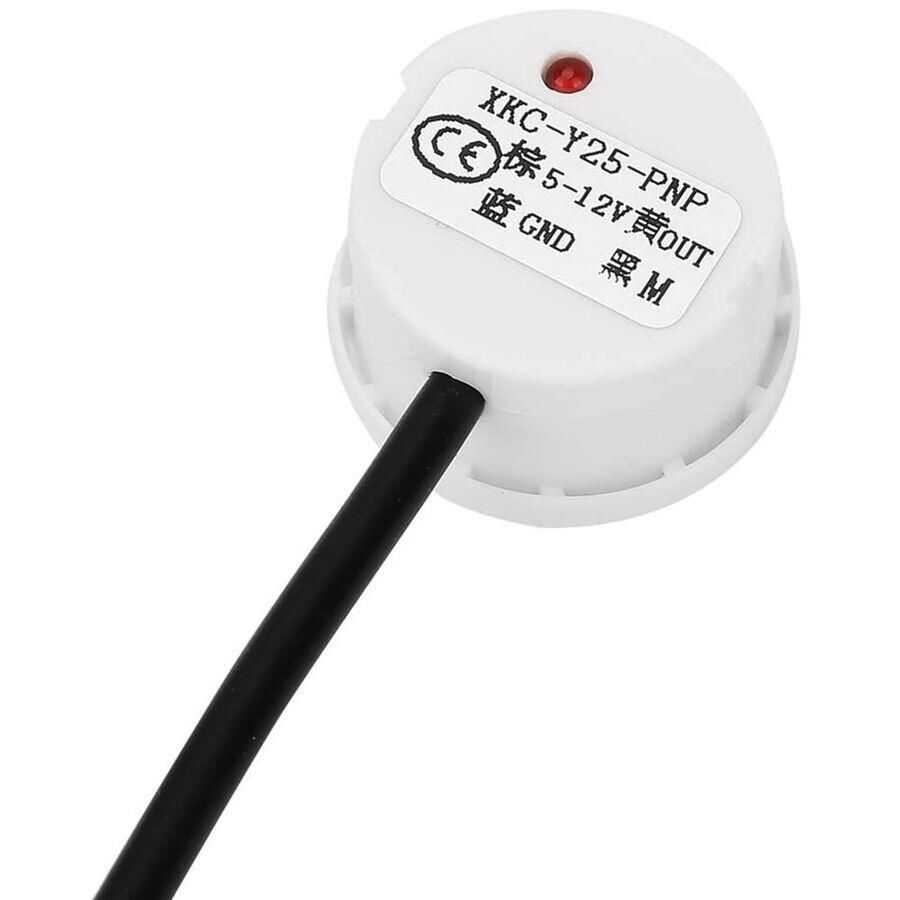

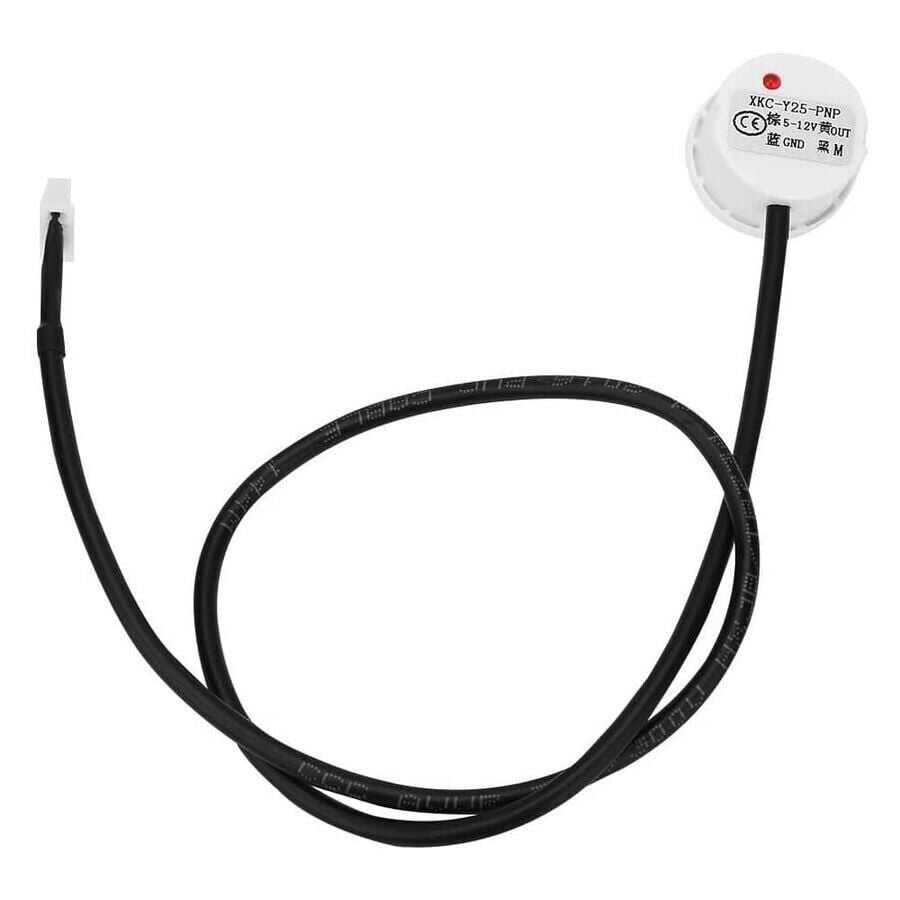

XKC-Y25-PNP Liquid Level Sensor
XKC-Y25-PNP Liquid Level Sensor. It allows you to receive signal output depending on the liquid level in any non-metal container. Since it does not need to come into direct contact with water, it is possible to make measurements with all kinds of liquids.
Features:
- Output: PNP
- Input Voltage (InVCC): DC 5~12V
- Current: 5mA
- Response Time: 500mS
- Operating temperature: 0~105 °
- Induction Thickness (sensitivity): 0~13 mm
- Humidity: 5% ~ 100%
- Material: ABS
- Water Protection: IP67
li>

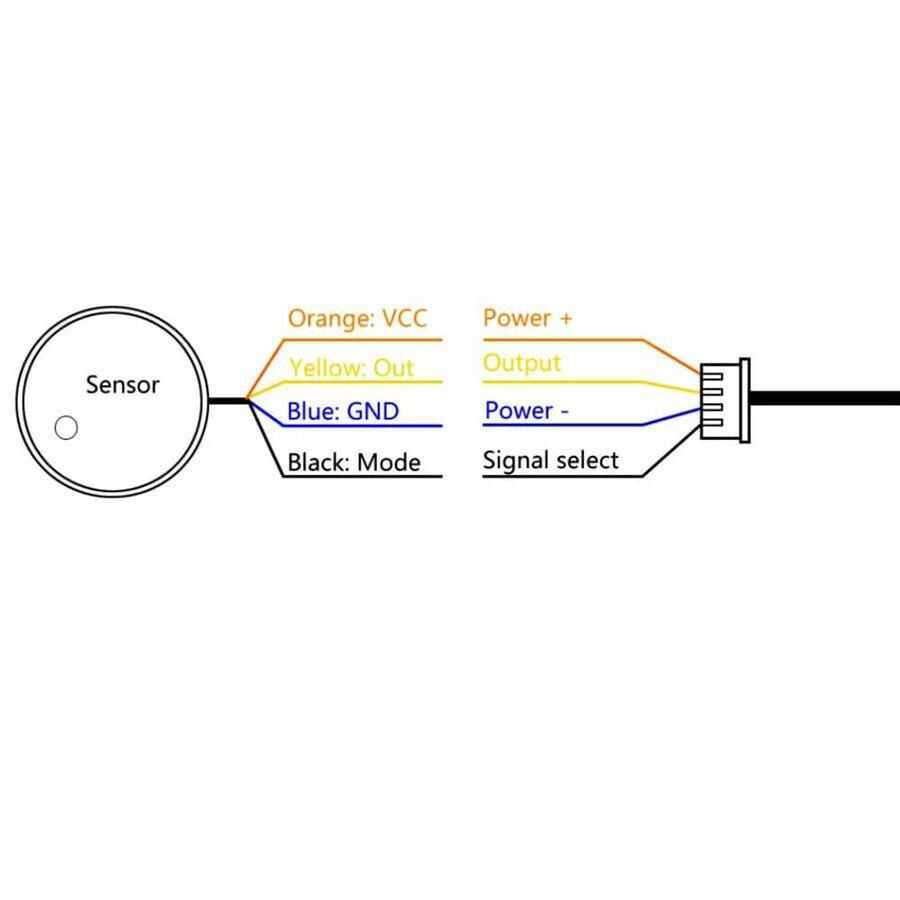

Cable Outputs:
- Orange: Plus
- Yellow: Output OUT
- Blue: Minus ground
- Black: MOD
