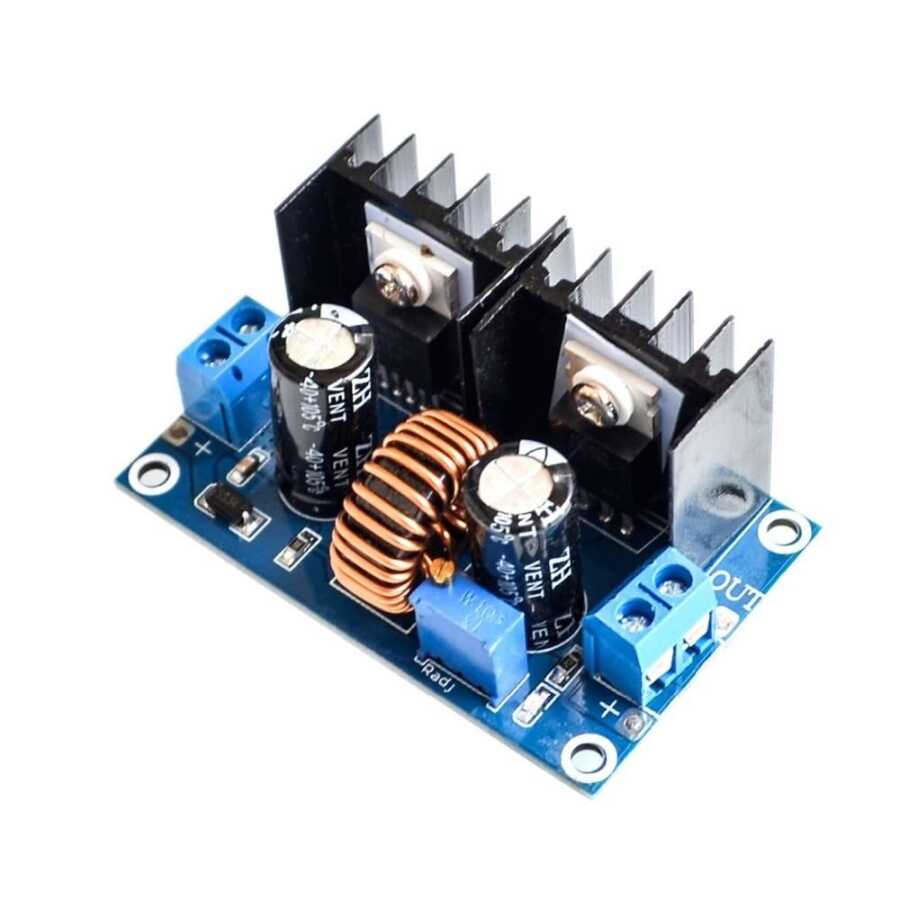

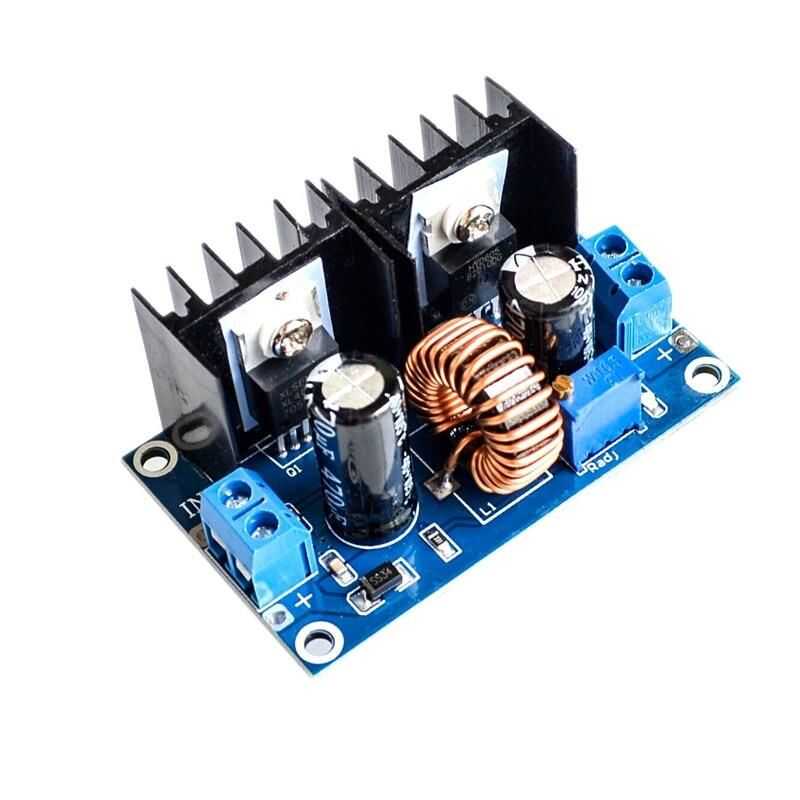

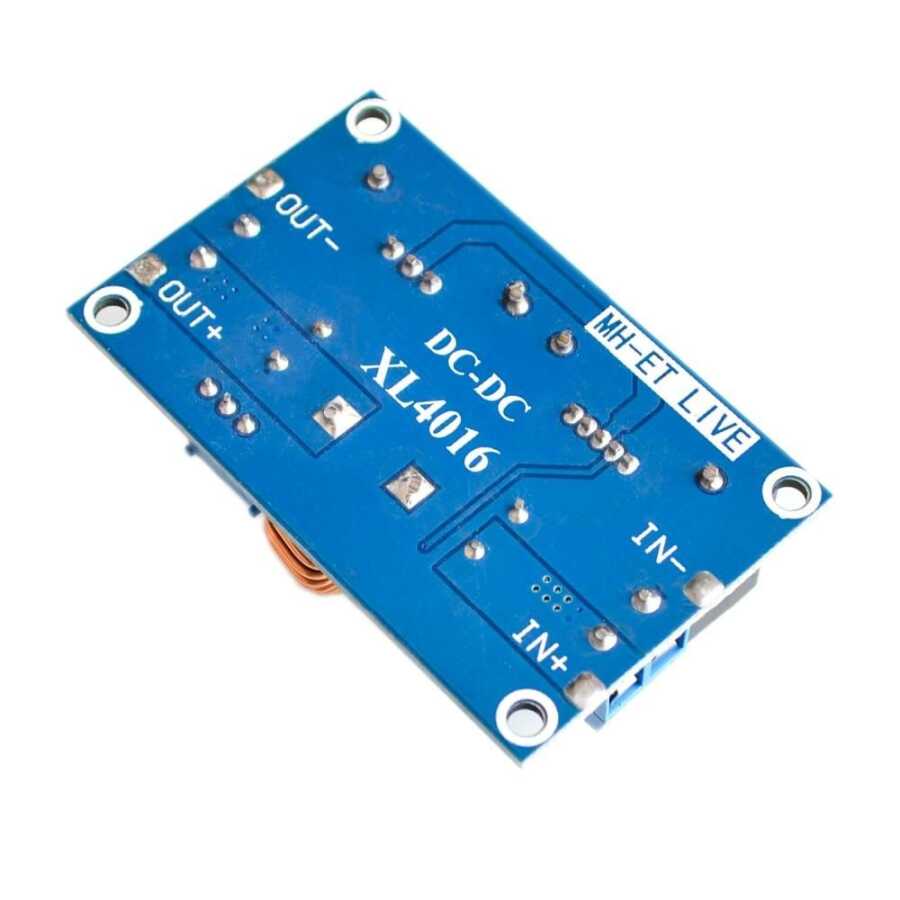

XL4016 8A DC-DC Step Down Voltage Regulator
It is a voltage regulator that can reduce the entered voltage value between 4-38v to a voltage value between 1.5-36v. Voltage adjustment can be easily made with the trimpot on the XH-M401 Voltage reducer. The product is resistant to a maximum of 8 Amperes and 5 Amperes in continuous use. Overcurrent protection, Overtemperature protection and Short circuit protection are available.
Technical Specifications
- Voltage regulation mode: PWM modulation
- Input voltage: DC 4-38 V
- Output voltage: DC 1.25-36 V
- Maximum current: 8A (Add fan and 5a for long-term use should be used at less than )
- Maximum power: 200 W
- Conversion efficiency: 95%
- Switching frequency: 180 KHz
- Working temperature: -45 ~ +85 ℃
- Size: 6x3.7cm/2.36x1.46inch
