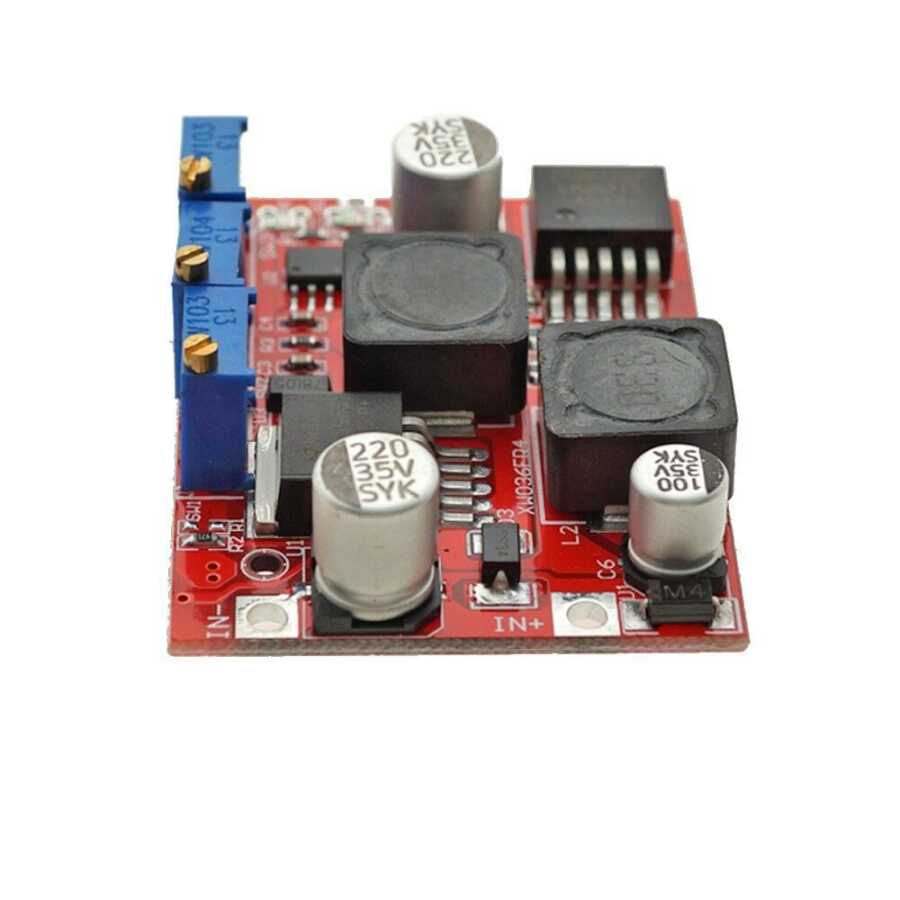

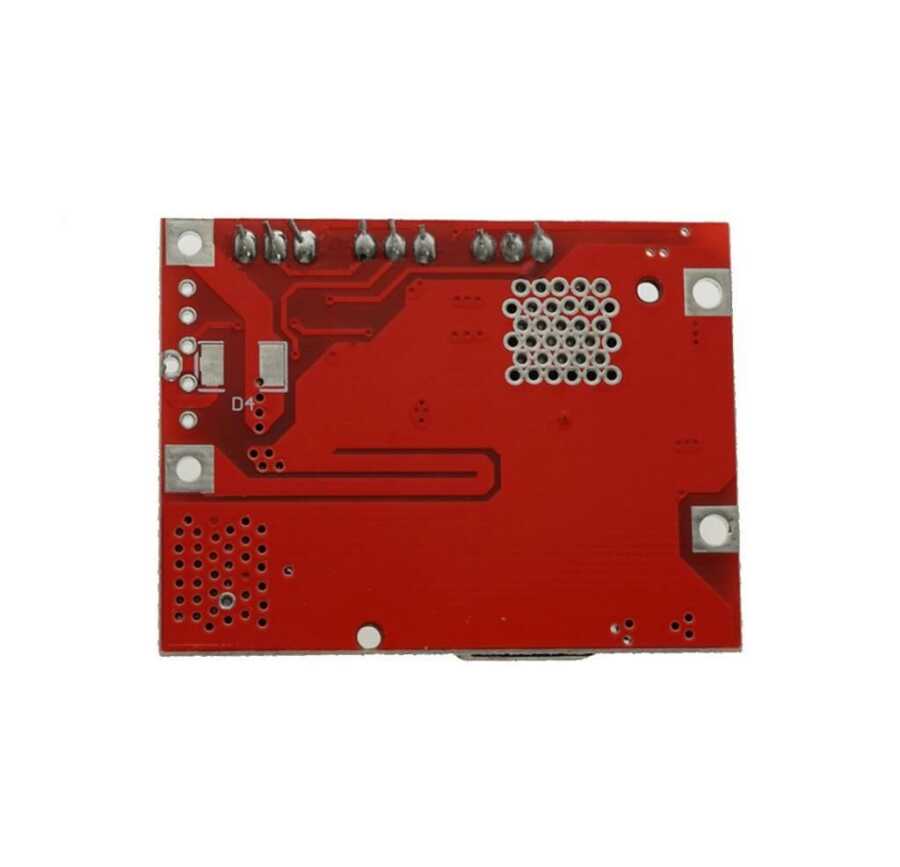

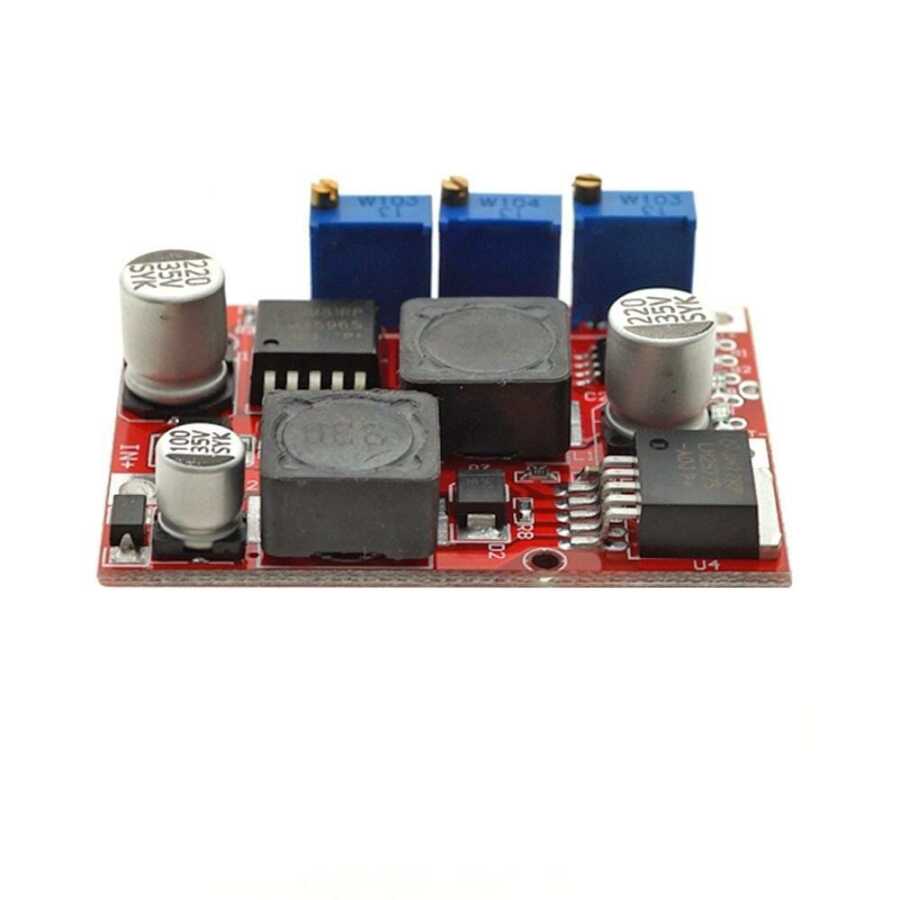

XL6019E1 LM2596S Voltage Step Up and Step Down Regulator Module
With DC-DC Adjustable step up and step down voltage converter, you can switch any 3.5-28V voltage. The output voltage is adjusted between 1.25-26V. For example, your input voltage is 5V, you can adjust the output voltage to any value from 1.25V to 26V. The maximum input and output rated current is 1 A.

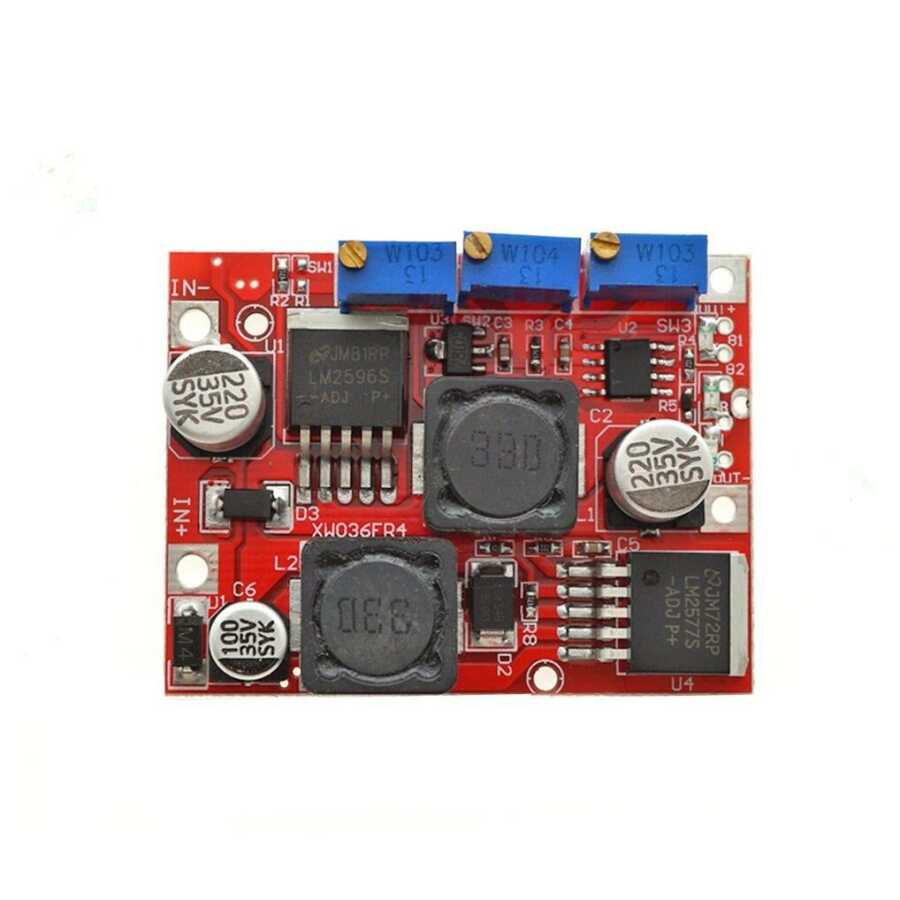

The integrated circuits on this module are LM2596S and XL6019E1.
Technical Features
Input Voltage: 4-35V
Output voltage: 1.25-25V adjustable
Output current: 3A Max (more than 15W if, install cooler)
CC Range: 0-2A (adjustable)
Rotating luminous current: CC value * (1% - 100%), default value 0.1 times
Minimum voltage difference:2V
Conversion efficiency:80% (higher output voltage, higher efficiency)
< DIV>
Input: IN + input Positive, IN input negative
Output: < /SPAN>OUT + output positive, OUT output negative
Module Size: 50 x 37 x 13 mm
