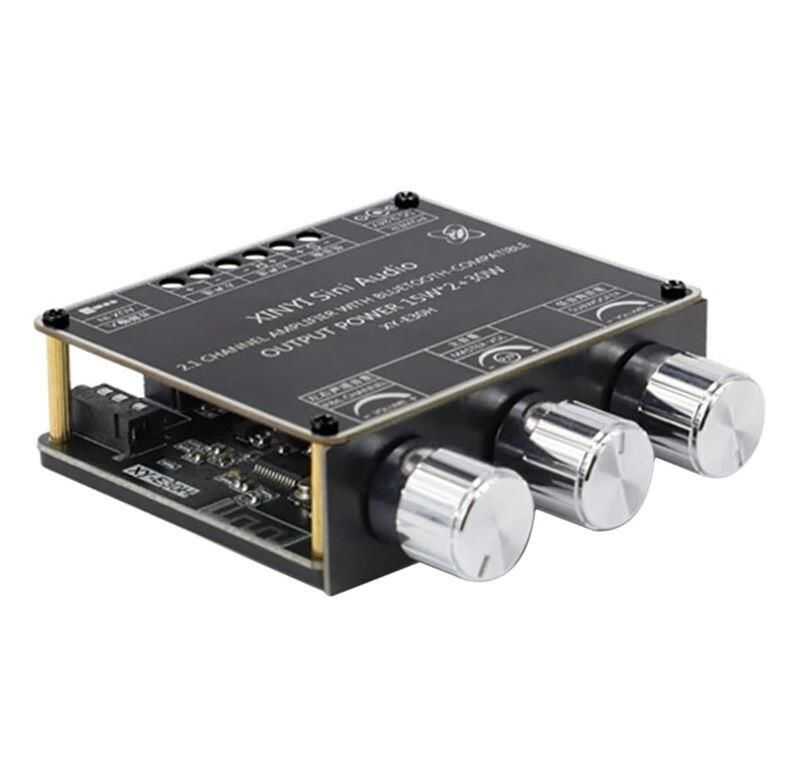

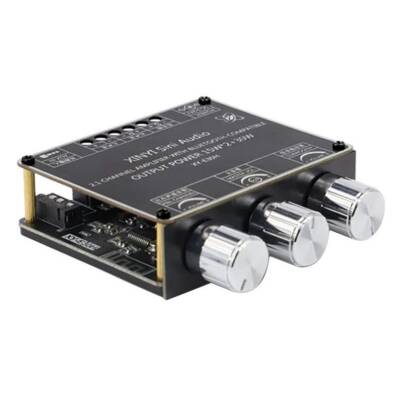

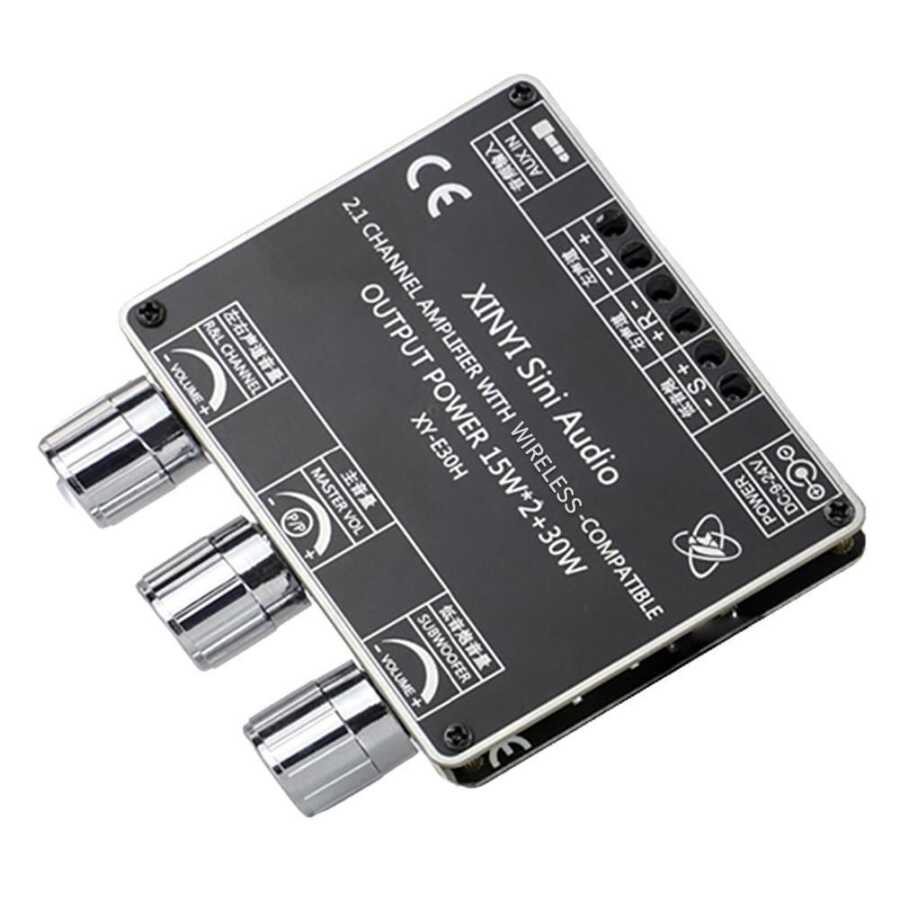

XY-E30H 2x15W + 30W Bluetooth 5.0 2.1 Channel Amplifier Module
XY-E30H 2x15W + 30W Bluetooth 5.0 2.1 Channel Amplifier Module, 2x15W with 5.0 Bluetooth version and 2.1 channels It is an amplifier module with + 30W power. It has short circuit protection, overcurrent and overheating protection. Since it has Bluetooth 5.0 version, it has an unobstructed transmission of up to 15 meters. In addition to Bluetooth support, it also has aux, u disk and USB sound card support.
If you are going to use 4 Ohm Speakers, maximum 12V;
If you are going to use 8 Ohm Speakers, use maximum 24V power.
Technical Specifications:
- Supply Voltage : 9-24 VDC
- Current: 3A
- Output Power: 2x15W + 30
- Audio Input: Bluetooth, AUX
- Audio Output : Left-right channel, subwoofer, 3.5mm interface stereo output
- Frequency Range: 20Hz-30KHz
- Signal-to-Noise Ratio: 92dB
- Bluetooth 5.0
- Speaker: 5-30W 4-16 ohm
- Subwoofer: 5-50W 4-8 ohm
- Input Method: AUX + Bluetooth
- Dimension: 70x73x20mm
- Weight: 67g
