YF-DN40 Water Flow Sensor Flowmeter G11/2 5-150L/Min 3.5-24VDC

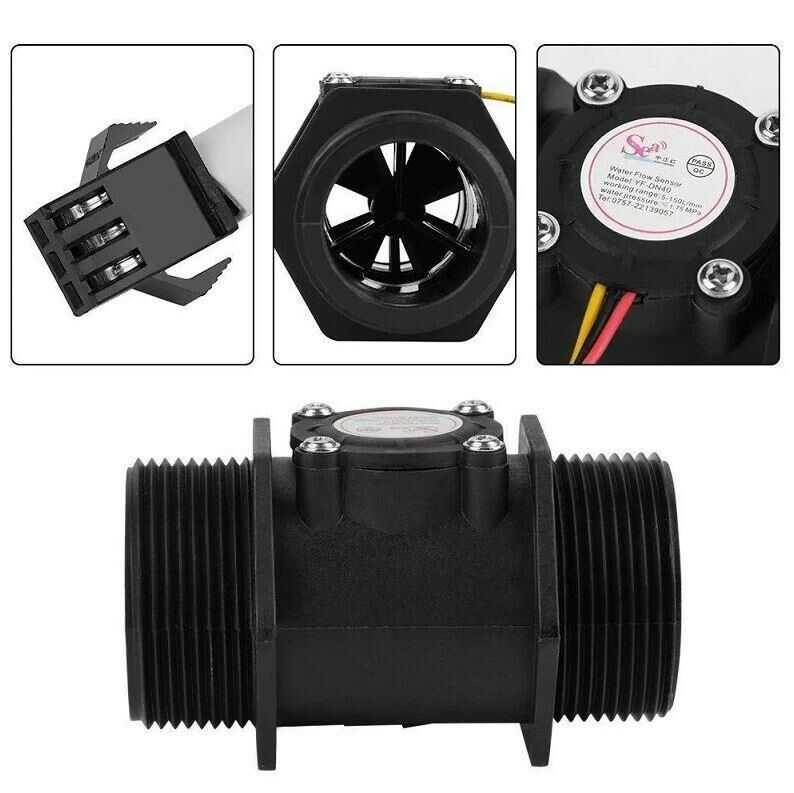

YF-DN40 1.5 inch, one water It is a plastic body water flow sensor containing a rotor and hall-effect sensor and used for flow measurement for industrial applications. As water flows through the rotor, the rotor rotates and its speed changes with a different flow rate. The Hall effect sensor outputs the corresponding pulse signal. The output of the flow sensor is proportional to the water flow. The more water flows, the greater the pulses.
*5 ~ 150 L/MIN ± 2% in-line accuracy
*Flow pulse characteristics F = (0.45 * Q) Q = L / Min welcome
*Low temperature test at -20'C after 72 hours, 1 hour at room temperature, initial measurement accuracy inline ±5% at
*High temperature test temperature at 85'C after 72 hours, 1 hour at room temperature, initial measurement accuracy at ± 5%
*11/2″ DN40 flow rate at 5 ~150L/min Plastic Hall Turbine flow sensor meter switch valve control liquid flow sensor
*Inlet Diameter: Inner: 36mm;Outer: 44mm
*Outlet Diameter: Inner: 33mm; External: 44mm

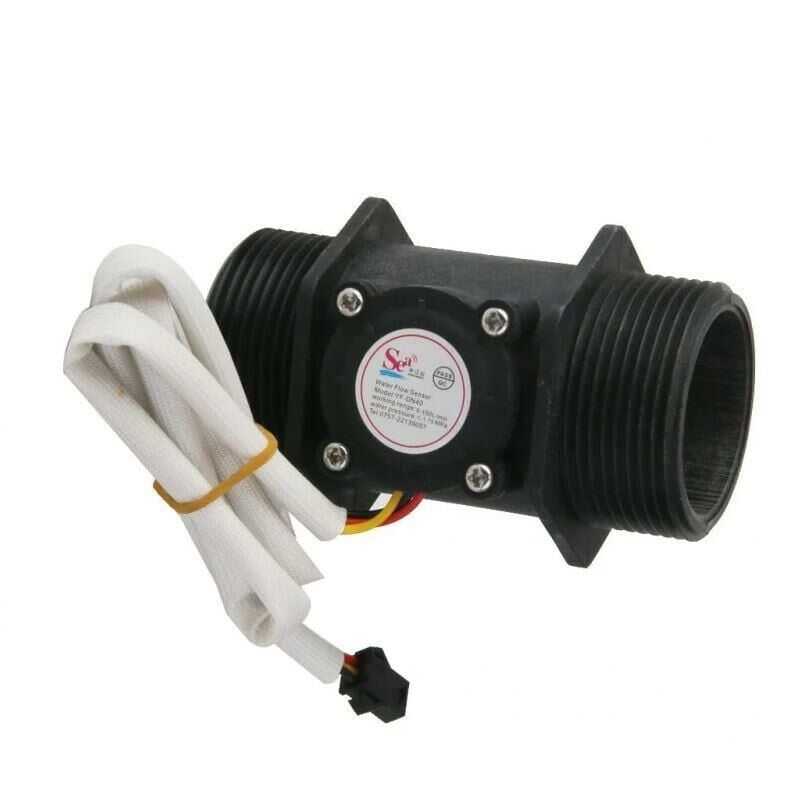

*Cable Length: 50 cm
Technical Specifications
-
Model: YF-DN40
-
Material: Plastic
-
Hydrostatic pressure: ≤ 1.75 MPa
-
Operating voltage range: 3.5 ~ 24V
-
Insulation resistance: > 100M
-
Cable Length: 50 cm
-

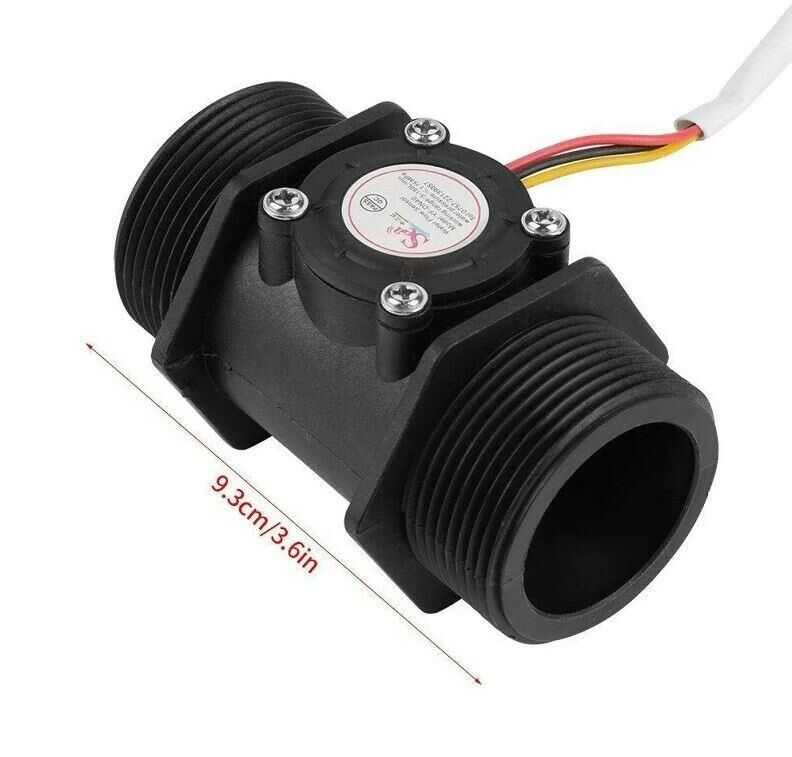

Length (mm): 92
