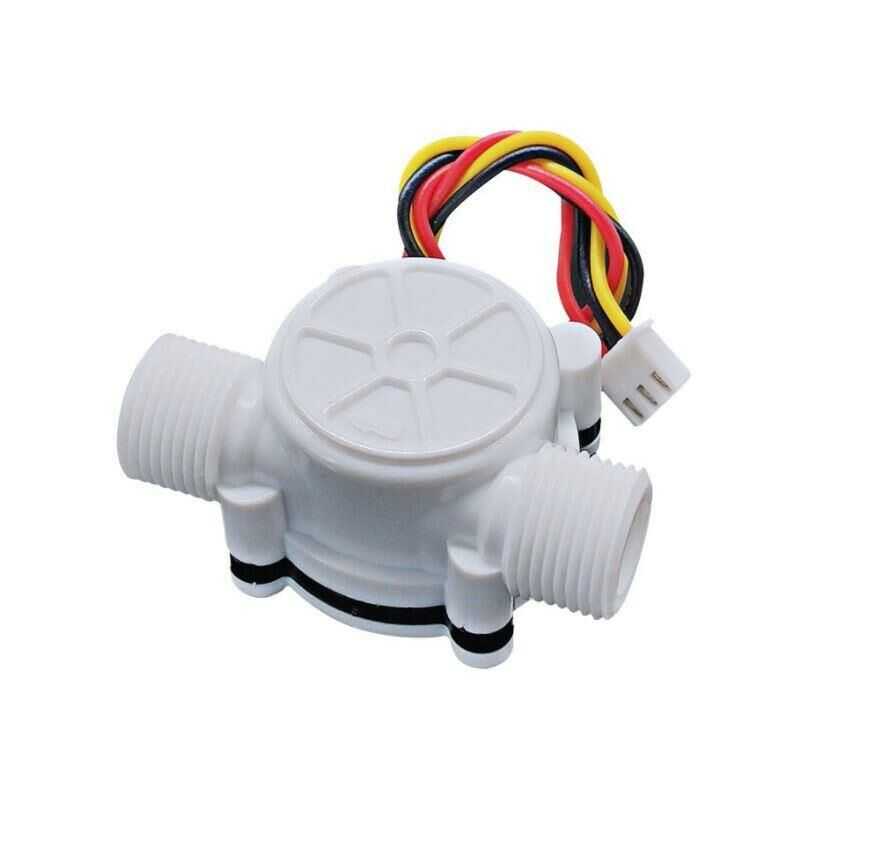

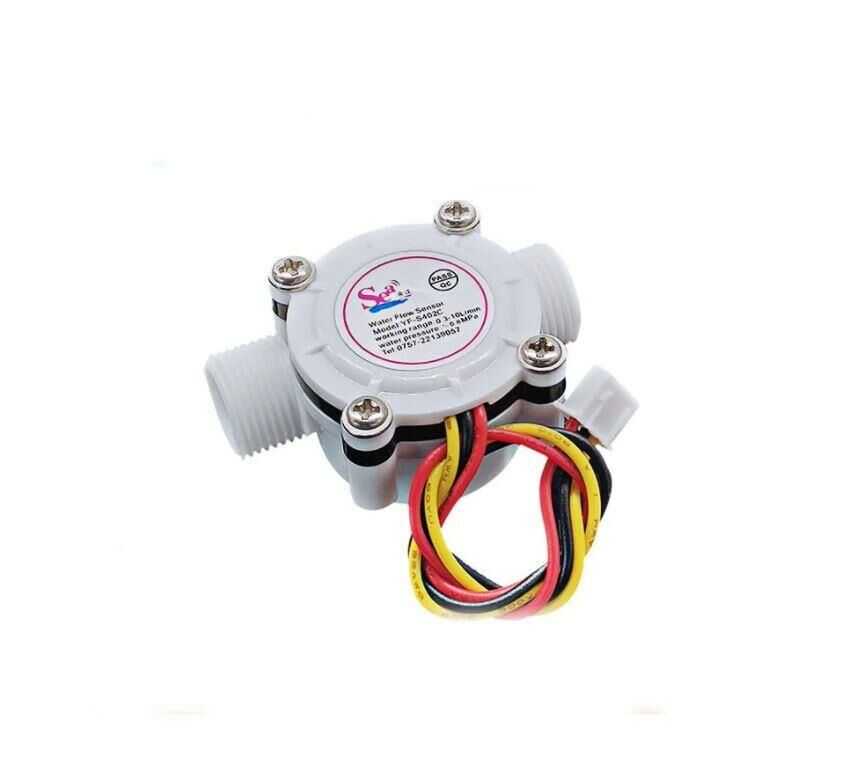

YF-S402C 5-18V Water Flow Sensor (Marine) Flowmeter G3/8 0.3-10L/Dk

YFS402C 5-18V Water Flow Sensor It mainly consists of a plastic valve, water flow rotor assembly and a Holzer sensor. With the rotation of the magnetic rotor and the change of flow rate, the rotation speed changes, and the output of the Holzer sensor corresponds to the pulse signal by the controller, feedback to the controller to determine the size of the water flow. When water passes through the flow rotor assembly, the magnetic rotor will rotate and the Speed will change as the flow changes. The Hall current sensor output corresponds to the pulse signal and feedback to the controller, then the controller controls the flow. Can be used for water heaters, credit card machines, water vending machines, flow measurement devices.

< SPAN style="FONT-WEIGHT: bold">Cable Connections

Red: Positive(+)

Yellow: Signal output

Black: Negative(-)

Applications

In water heating systems, automatic Can be used in water dispensers and other flow measurement equipment.

Technical Specifications

Model: YF-S402C
Material: Plastic
Hydrostatic pressure: ≤ 0.8MPa
DIV>
Operating voltage range: 5 ~ 18V
Flow Range: 0.3-10L/min

Cable Length: 15 cm

Length (mm): 54
Analog Sensor
Up to 5% accuracy
Standard 1/8" Nozzle Size

< DIV>
