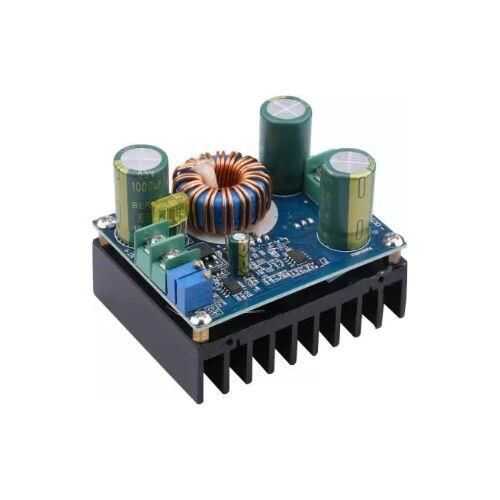

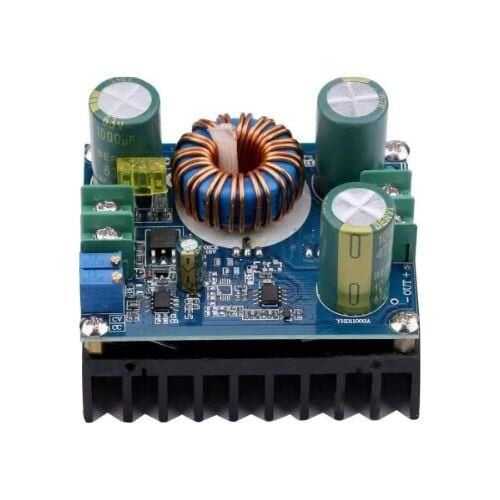

YHD11003A DC-DC 600W Voltage Amplifier Boost Module
YHD11003A DC-DC 600W Voltage Amplifier Boost Module.For solar panel regulator, battery charger, high power LEDs It is suitable. It has short circuit protection and overcurrent protection. Output voltage: adjustable between 12-80V (default output 19V). Constant current range: 0.1-12A. It works with 12-60V. It has a size of 76x60x56mm.
Features
- Operating Voltage: 12-60VDC
- Output Voltage: 12-80V (Default Output: 19V)
- Recommended Input Amperage: >10A (Max: 16A)
- Output Power: 600W Max
- Conversion Efficiency: 95%
- Dimension: 76x60x56mm
- Weight: 205g
- Operating Frequency: 150 KHz
- Operating Temperature Range: -40 ~ 85°C
Guide
