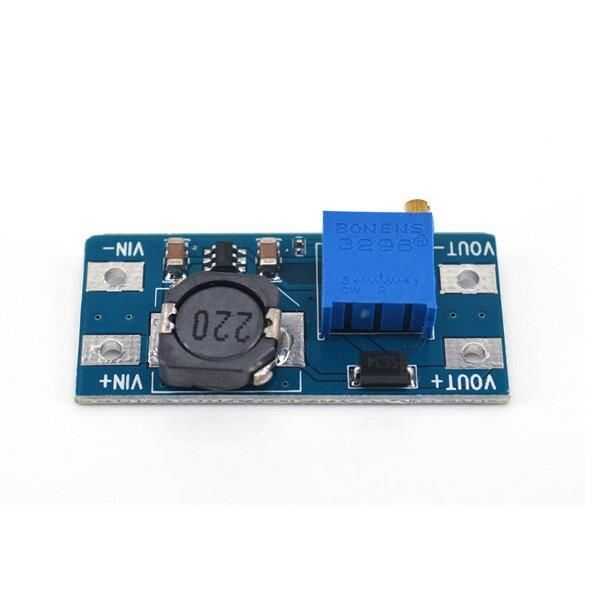

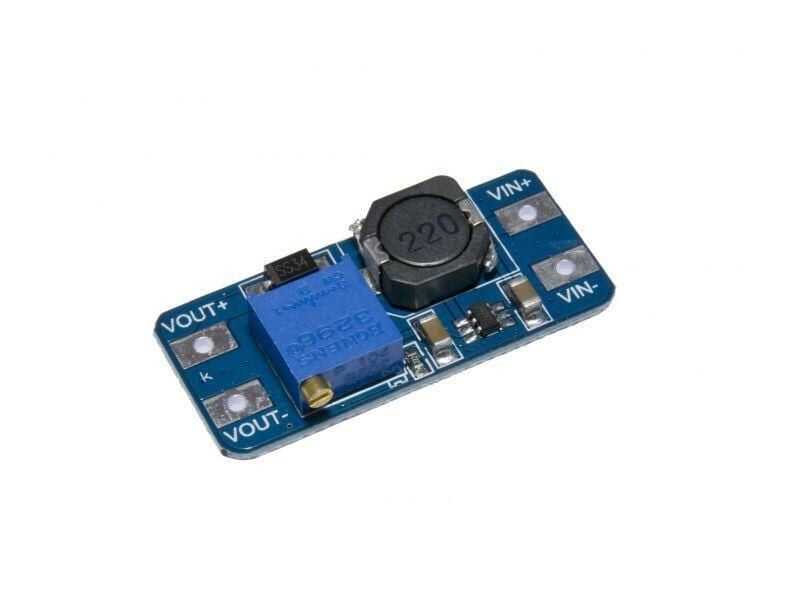

MT3608 2A Adjustable Voltage Booster Card



It can take input voltage as low as 2V and output up to 28V. It has a removable MT3608 2A step-up boost converter. The MT3608 has automatic switching to signal frequency modulation mode under light loads. It includes low voltage lockout, current limiting and thermal overload protection.



In this module, you can adjust the output voltage. There is a potentiometer you can use. Since the Trimpot has 25 settings, you can easily adjust the module's output to the voltage you need.



Boost converters allow for specific It's a great way to easily step up a voltage, but this increase comes at the cost of less output current compared to the input current.



This is a step-up converter. Since ;r, the output voltage must be higher than the given input voltage.
