DC-DC Adjustable High Voltage Module

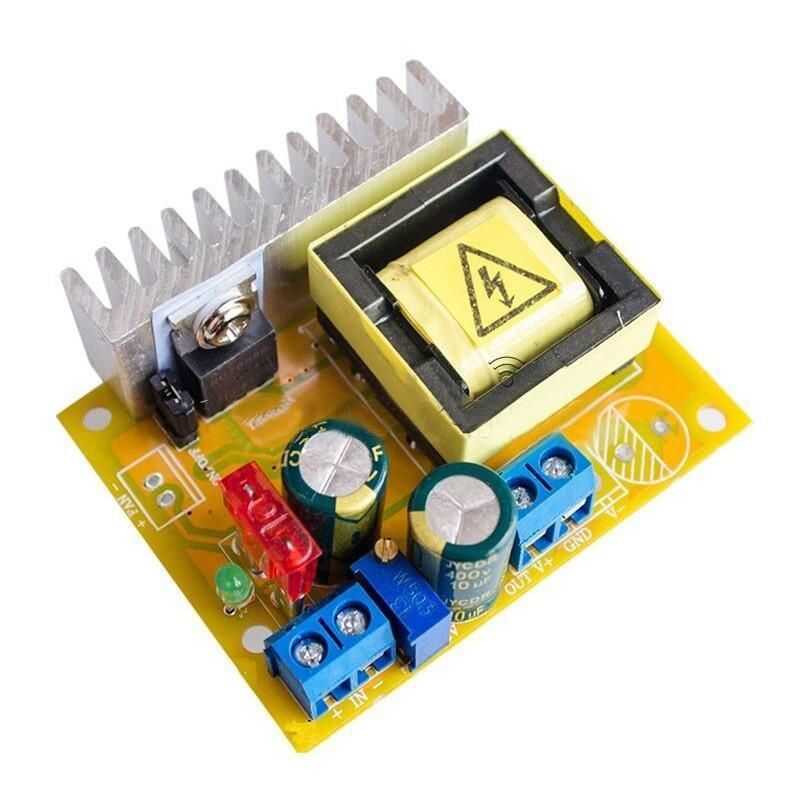

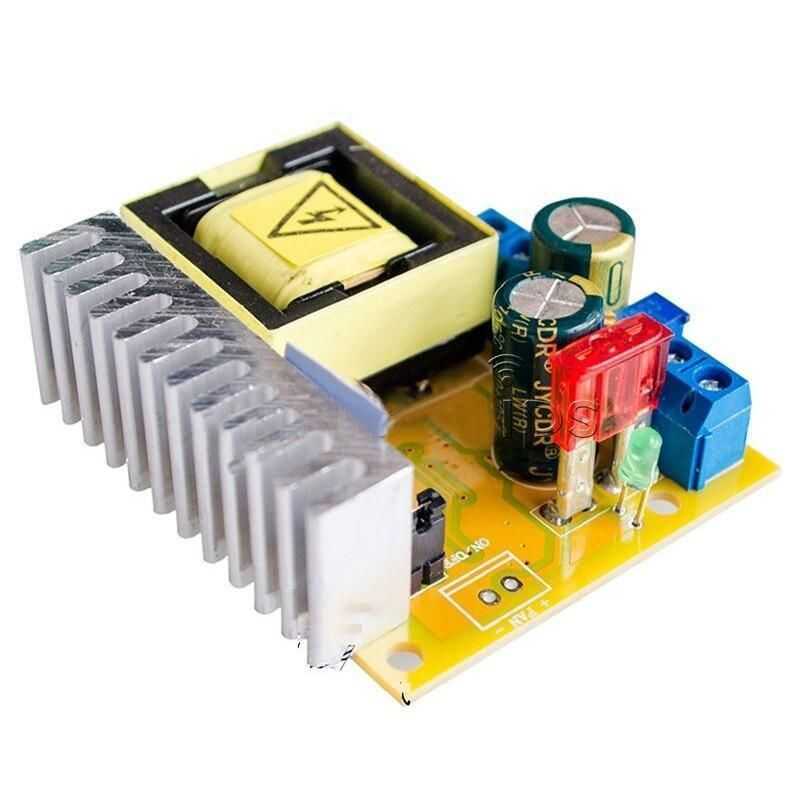

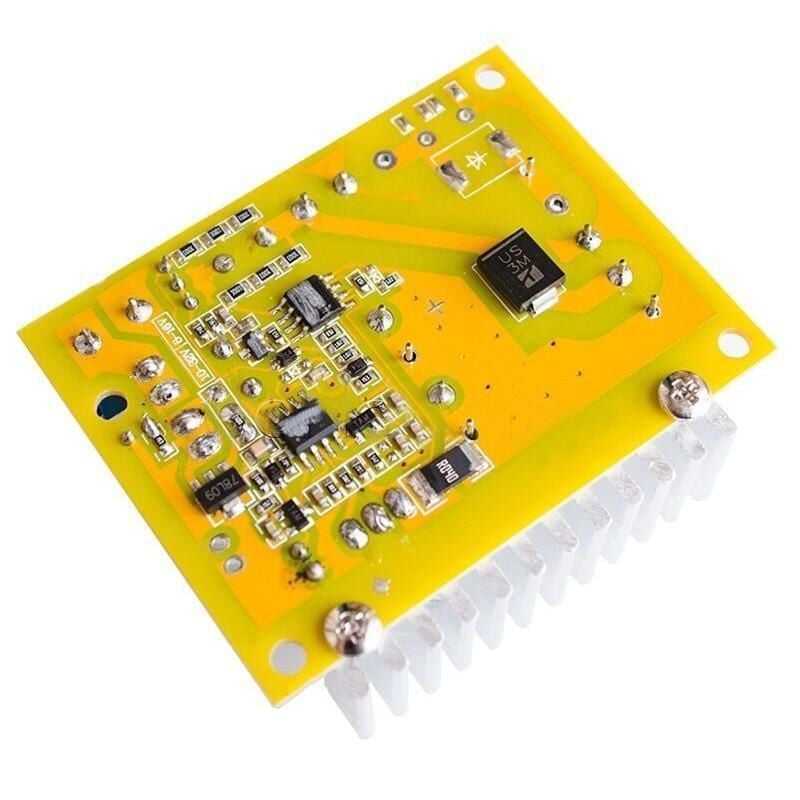

Step up, which increases the DC Voltage entered between 10-32V via the transformer on it, to an adjustable voltage value between +45~390V It is a boost card. Since there is high voltage on the card, it should be used with caution. The product has terminal blocks for voltage input and output and a trimpot for voltage adjustment.
Technical Specifications:
- Input Voltage: 8 ~ 32V input (default is 10 ~ 32V input.)
- Input Current: 3A (Max)
- Output Voltage: + 45 ~ 390V continuously adjustable (default output ± 50V )
- Output Current: 0.2A Max (As the output voltage increases, the current decreases)
- Output Power: 40W (Peak 70W)
- Operating Temperature: -40 ~ + 85 degrees
- Operating frequency: 75 KHz
- Conversion efficiency: up to 88% (related to efficiency and input and output voltage, current, pressure)
- Brief circuit protection: Yes
- Overcurrent protection: Yes (If the input current exceeds 4.5A, it reduces the output voltage)
- Overvoltage protection: Yes (If the output voltage exceeds 410V, dropping output voltage)
- Input reverse polarity protection: Yes
- Dimension (L * W * H): 60 x 50 x 20 mm
