YM-20-C02SX-02-401 2-Pin Waterproof Connector - Male

Ratings & Reviews (0)
Comment
Brand: CNLINKO
Product Code: KOM.KNN.05.000141
Stokta son 4 ürün
249.22 TL + VAT
VAT Included: 299.06 TL

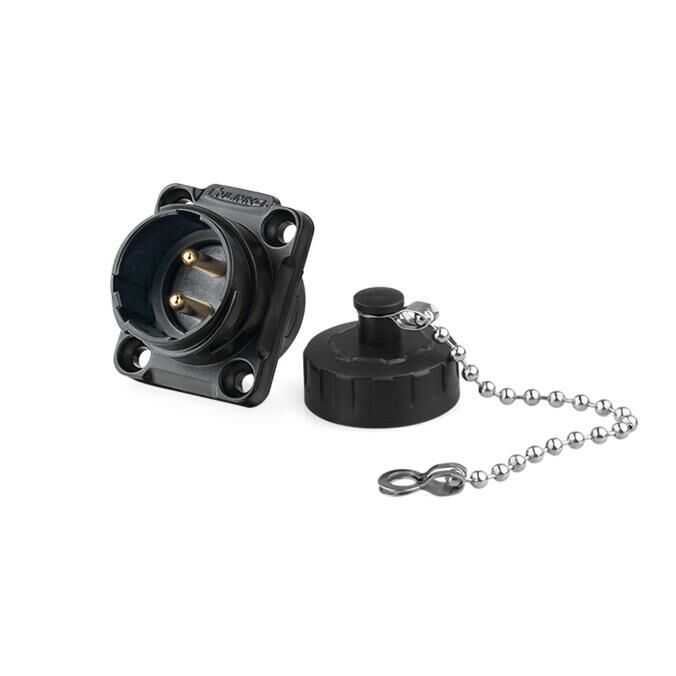

YM-20-C02SX-02-401 2-Pin Waterproof Connector - Male


YM-20 series connectors are characterized by their small size, flexible operation and automatic Due to their insertion and removal, they are widely used in various harsh environments and situations such as audio-visual equipment, medical equipment, industrial control, inspection and measurement. Compact components, simple operation, fast and stable connection, IP67-rated outdoor waterproof performance. It meets the quality and environmental protection requirements of international industrial equipment. Quick plug design allows one-handed insertion/removal. The copper needle of the power adopts gold plating technology, which can resist corrosion and is suitable for high low temperatures.


Technical Specifications

  • High temperature and pressure resistance
  • IP65/67 rating when connected
  • Number of Pins: 2
  • Pin Diameter - 2.7 mm
  • Cable Connection - 8-12 AWG
  • Rated Current - 20 Amperes
  • Operating Voltage - 500V AC
  • Contact Resistance - <500mOhm
  • Withstand Voltage - 2500V
  • Input Protection - IP65/67
  • Operating Temperature - -40 C - 80 C
  • Body Material - High Performance Plastic
  • Flammability Rating- UL94-V0


YM20 Waterproof Connector Datasheet

Weight(Kg)
0.1
Features
Connector Pin
2-Pin
