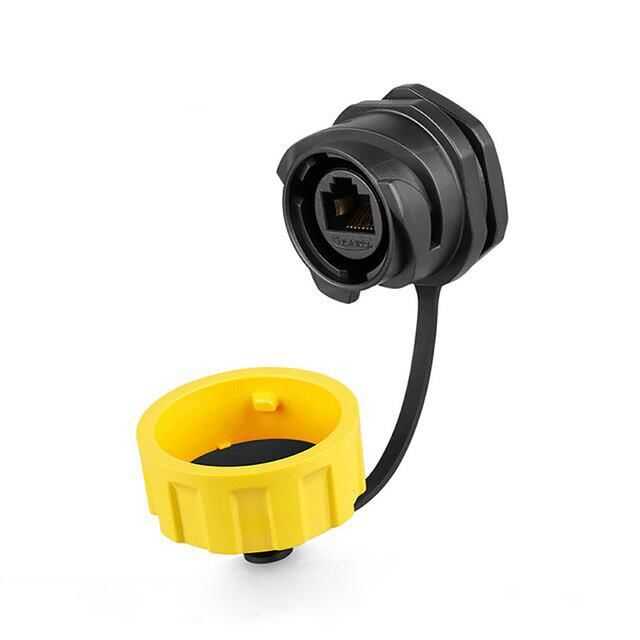

YM-24-J/RJ45/213/SX-42-101 Waterproof RJ45 Connector - Female
High speed lock for secure signal and data transmission performance RJ45 connector. IP67 connector in plastic housing in size 24 YM series. The RJ45 connector is waterproof and dustproof according to protection class IP67. It provides a locked, secure connection and protects against data and power outages. The maximum rated power for the data connector is 0.5 amps. The plug has a quick plug connection. Quick-connect design allows one-handed attachment and removal.
Technical Specifications
-
High temperature and pressure resistance
-
IP65 when connected/ Class 67
-
Wiring - 24-26 AWG
-
Ingress Protection - IP65/67
-
Operating Temperature - -40 C - 80 C
-
Body Material - High Performance Plastic
-
Flammability Rating- UL94-V0
YM24 Waterproof Connector Datasheet
