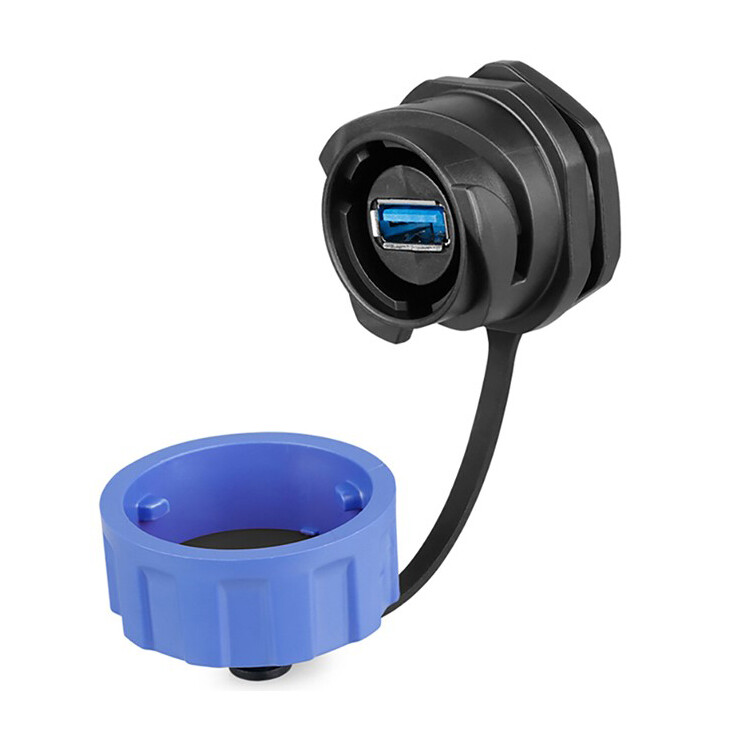

YM-24-J/USB3/213/SX-42-101 Waterproof Data Connector - Female
High speed lock for secure signal and data transmission performance USB connector. IP67 data connector in plastic housing in size 24 YM series. Black plastic construction with gold-plated contacts ensures a long service life. The USB connector is waterproof and dustproof according to protection class IP67. Kilitki provides a secure connection and protects against data and power outages. The maximum rated power for the data connector is 0.5 amps. The plug has a quick plug connection. Quick-connect design allows one-handed attachment and removal.
Technical Specifications
-
High temperature and pressure resistance
-
IP65/67 class when connected
-
Cable Connection - 24-26 AWG
-
Ingress Protection - IP65/67
-
Operation Temperature - -40 C - 80 C
-
Body Material - High Performance Plastic
-
Flammability Rating - UL94-V0

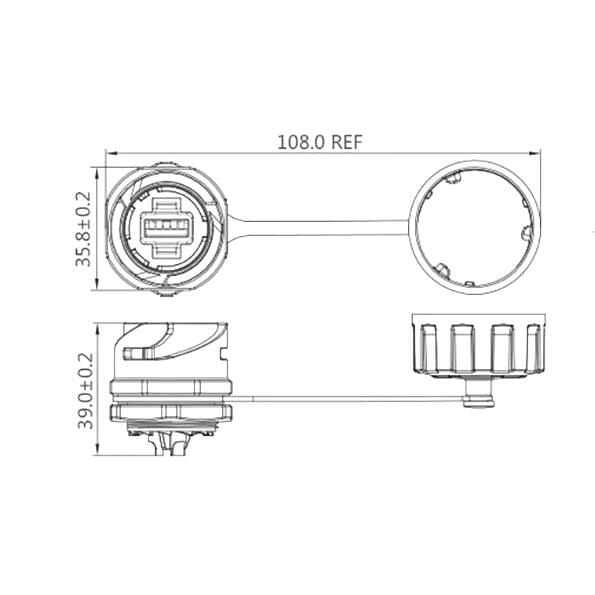

YM24 Waterproof Connector Datasheet
