ZK-1002L 2x100W 5.0 Bluetooth Amplifier Circuit
ZK-1002L 2x100W 5.0 Bluetooth Stereo Amplifier Circuit is a 2x100 W amplifier circuit with 5.0 Bluetooth version. Power supply can be easily done thanks to the 2.1mm adapter input on the circuit. Again, volume adjustment can be made with the potentiometer on the circuit. Thanks to 5.0 version bluetooth technology, it has a transmission distance of approximately 15 meters.
Technical Specifications:
- Supply Voltage: 5-24 VDC
- Output Power: 2x100W
- 4-8 ohm
- Output Type: Stereo dual channel

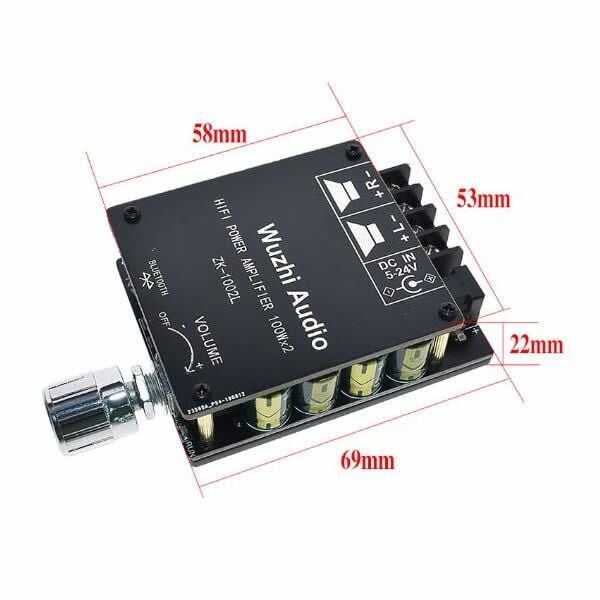

- Dimension: 69x53x22mm

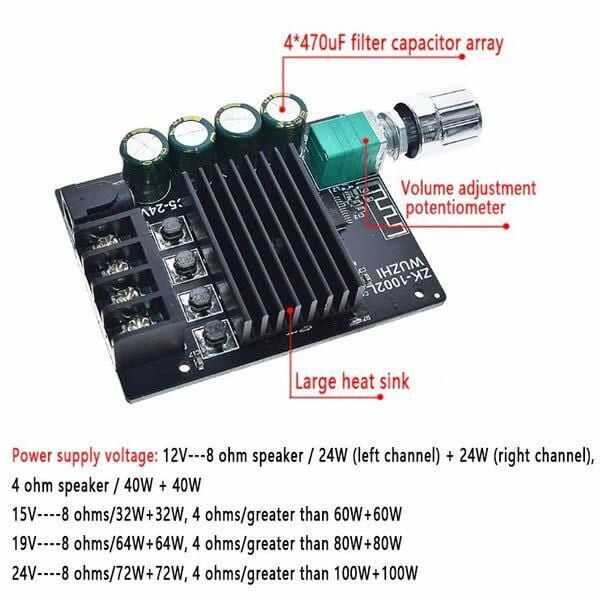

Ideal Feeding Options:
- 2x24W 8 ohms at 12V or 2x40W 4 ohms
- 2x32W 8 ohms or 2x60W 4 ohms at 15V
- 2x64W 8 ohms at 19V or 2x80W 4 ohm
- 2x72W 8 ohm or 2x100W 4 ohm at 24V
