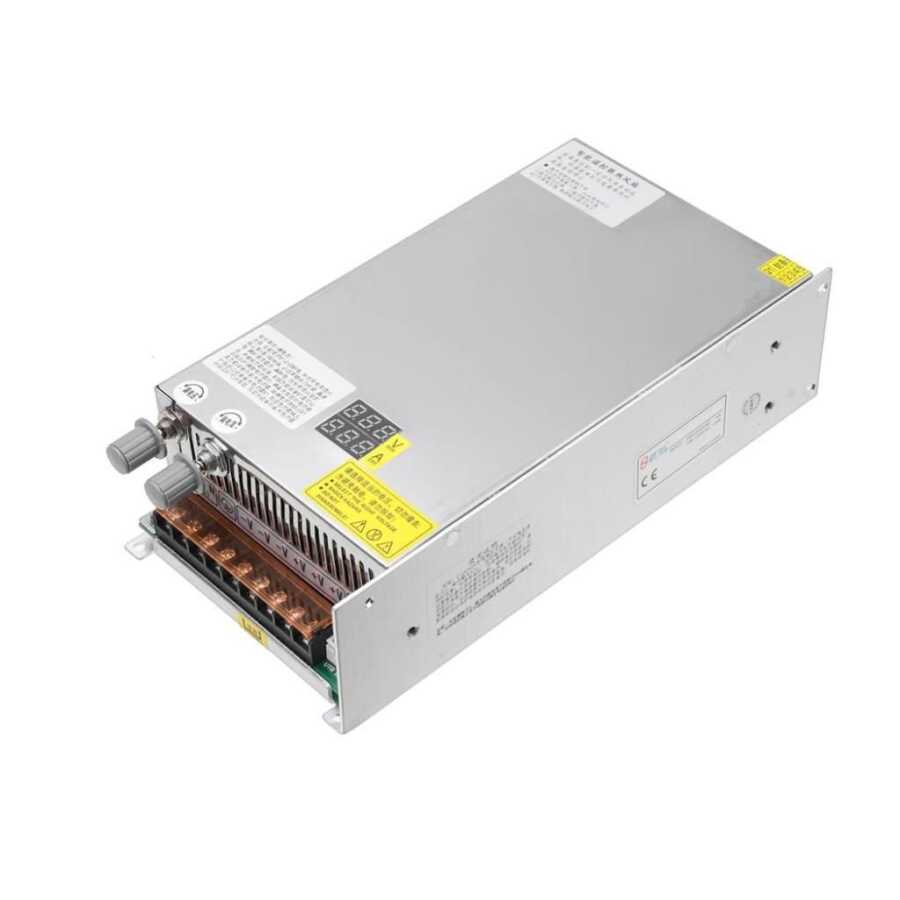

0-36V 28A 1000W Digitally Adjustable Metal Case Power Supply
0-36V 28A 1000W Digitally Adjustable Metal Case Power Supply. 0-36 with 80% output efficiency It is an adjustable power supply with a digital display that can adjust voltage between 0-28A and amperage between 0-28A. It is resistant up to 1000 watts of power.

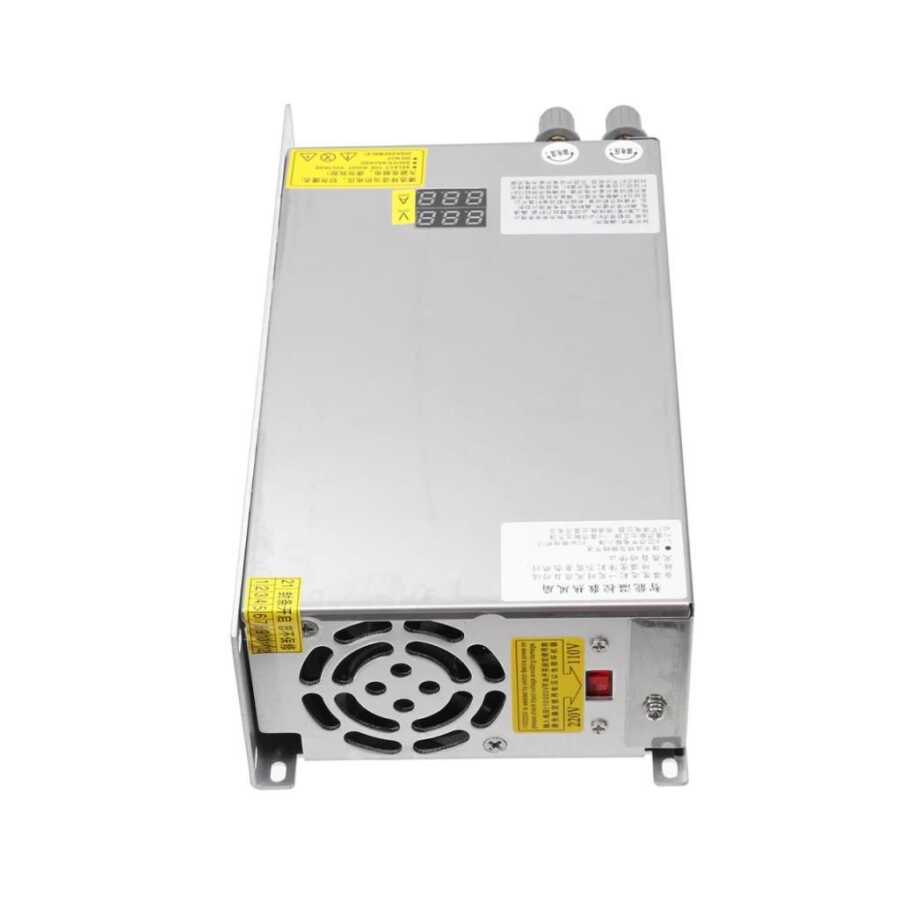

It has overload, overvoltage, high temperature and short circuit protection. When it reaches high temperatures, the fan inside automatically The left potency on the power supply allows you to adjust the voltage and the right potency allows you to adjust the amperage. You can review the guide below to adjust the amperage.
Technical Specifications
- Input Voltage: 220V AC
- Output Voltage: 0 - 36V
- Output Amperage: 0 - 28A
- Power: 1000W
- Frequency: 47-63 Hz
- Efficiency: 80%
- Operating Humidity Range: 20 ~ 90% RH
- Operating Temperature Range: -20 ~ 75°C
- Dimension: 215 x 115 x 50 mm
Protection
- Overload: 150% ~ 200% usage It automatically shuts down when the voltage reaches 115-135%.
- High Voltage: It shuts down with automatic recovery mode when the voltage reaches 115-135%.
- Over-Temperature Protection: Over-temperature protection up to 100°±5°C.
- Short Circuit Protection
How to Adjust Current?

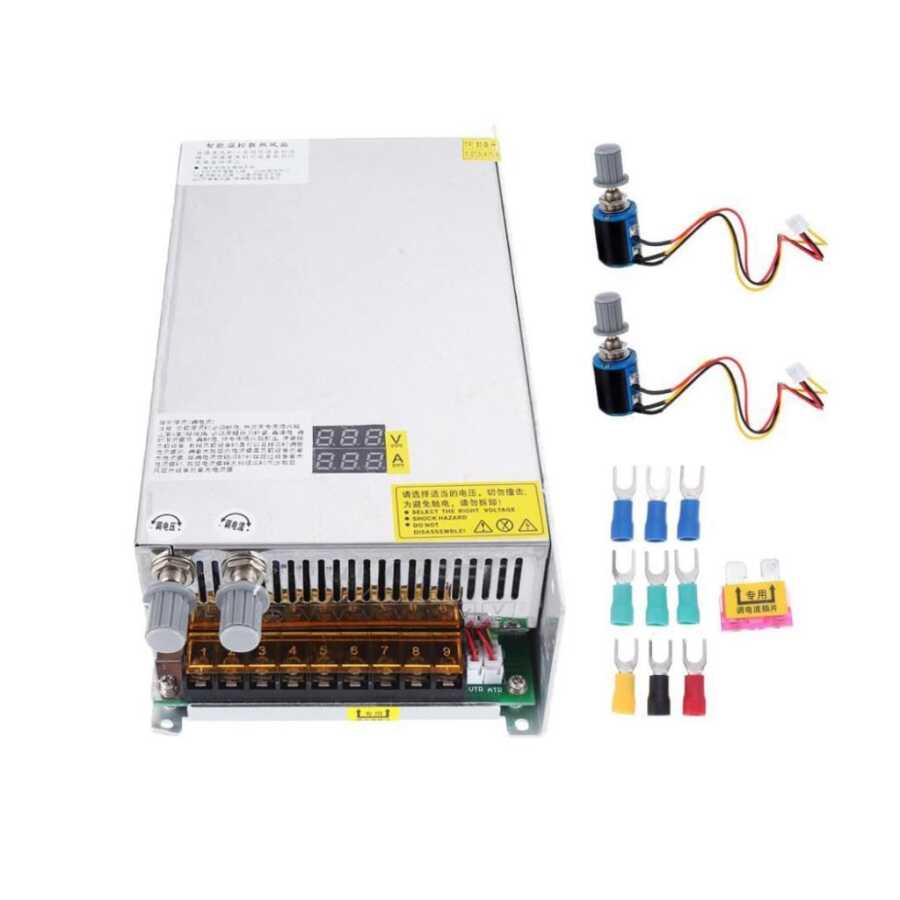

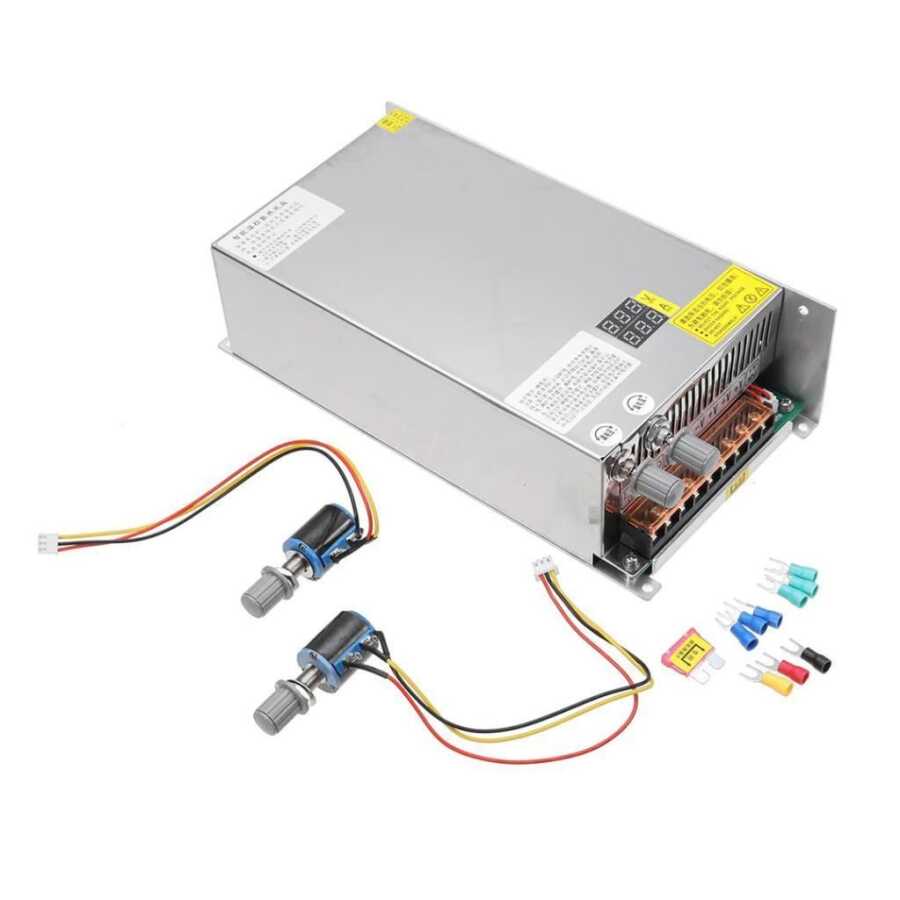

Turn off the power of the power supply. Loosen the 6th and 7th terminals of the power supply and connect the current switch included in the product to the 6th and 7th terminal connection point.
After connecting the current switch to the terminal and tightening the terminals, connect the power switch. turn it on.
Adjust the desired current within the current range supported by the device with the device's current adjusted potency and turn off the power.
After the current setting is made and the power is turned off, remove the current switch and then you can connect it to the load.
