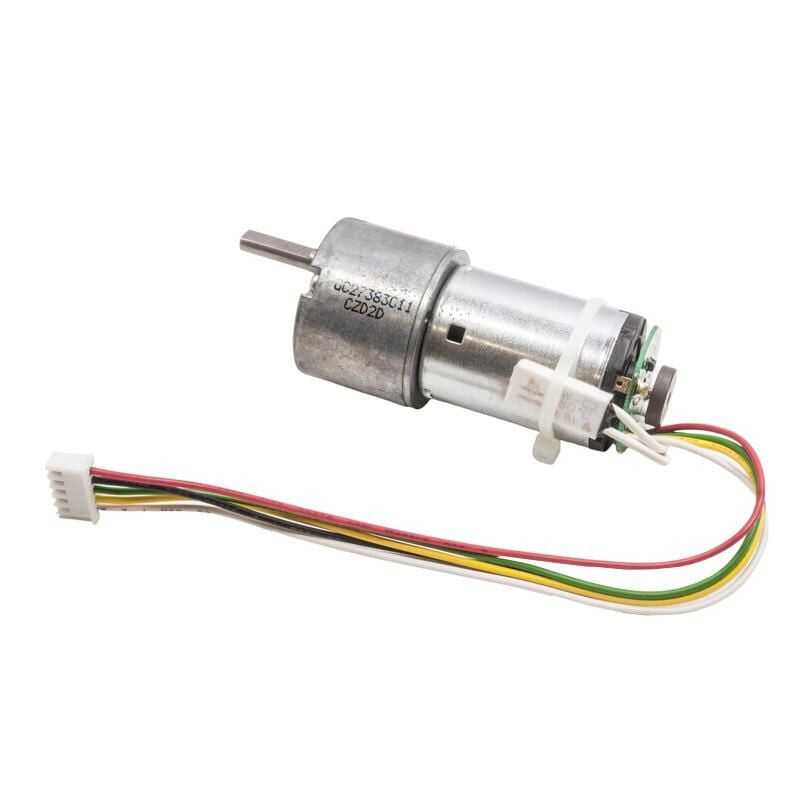

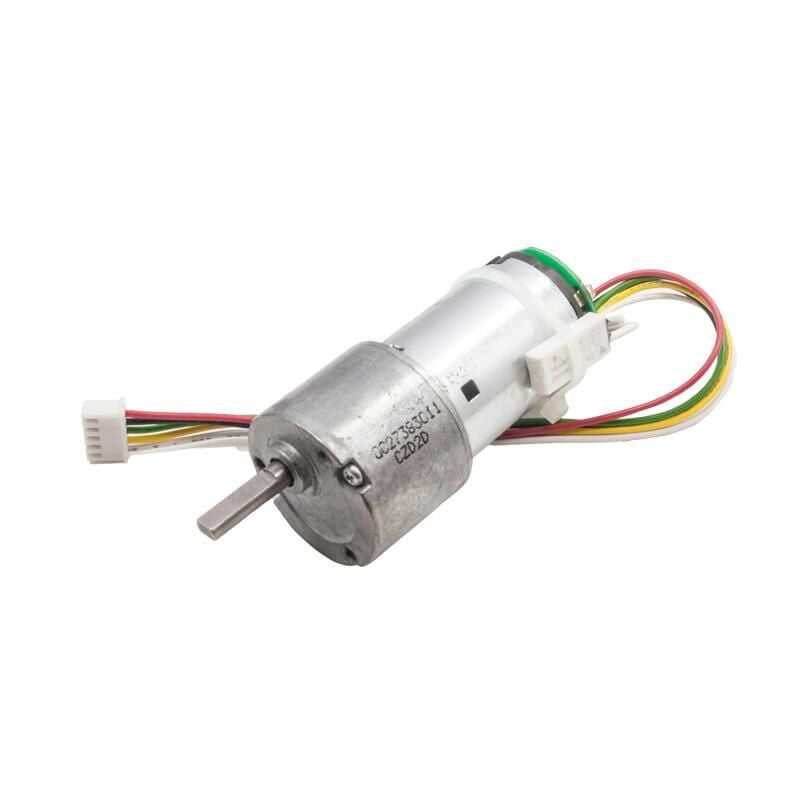

12V 20Rpm 33mm Dc Motor with Gearbox and Encoder
12V 20Rpm 33mm Dc Motor with Gearbox and Encoder. It has 12V DC operating voltage and 20 rpm rotation speed. Thanks to the Hall sensor on it, it converts the position and movement of the shaft into digital data and turns it into a signal.
Technical Specifications:
- Operating Voltage: 12VDC
- Speed: 20RPM
- Idle Current : 0.04 A
- Stress Current: 0.15A
- Power: 1.8W (Stress power)
Product Dimensions:
- Motor Diameter: 33mm
- Motor Body Length: 71mm (Excluding Shaft)
- Shaft Length: 17.4mm
- Shaft Diameter: 5mm / (both surfaces are flat. Distance between flat surfaces: 3mm)

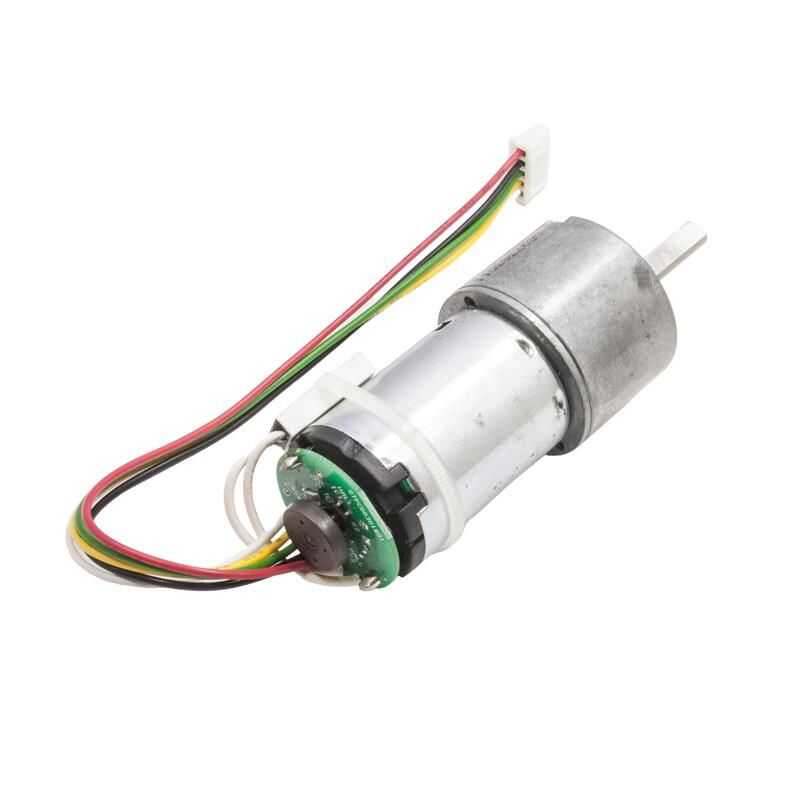

Encoder Connection:
- Red: 12V +
- Black: Motor -
- Green: Hall Sensor -
- Yellow: Signal
- White: Hall Sensor + 5V
