MP5BFN 12V DC Motor with Encoder and Without Gearbox

Ratings & Reviews (0)
Comment
Brand: NICHIBO
Product Code: MTR.ENC.01.000007
Stokta 100+ ürün
246.40 TL + VAT
VAT Included: 295.68 TL

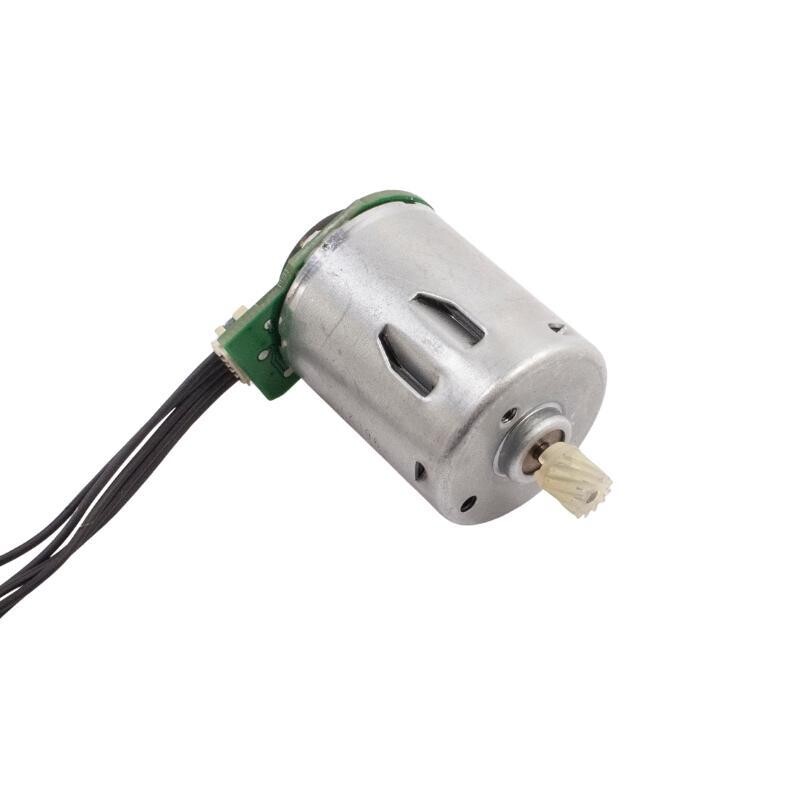

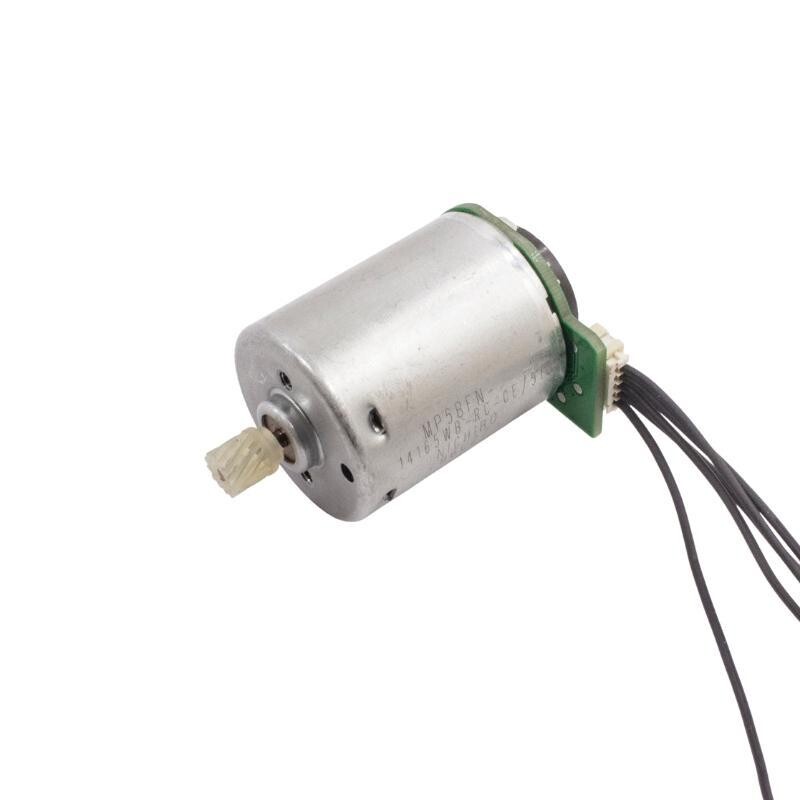

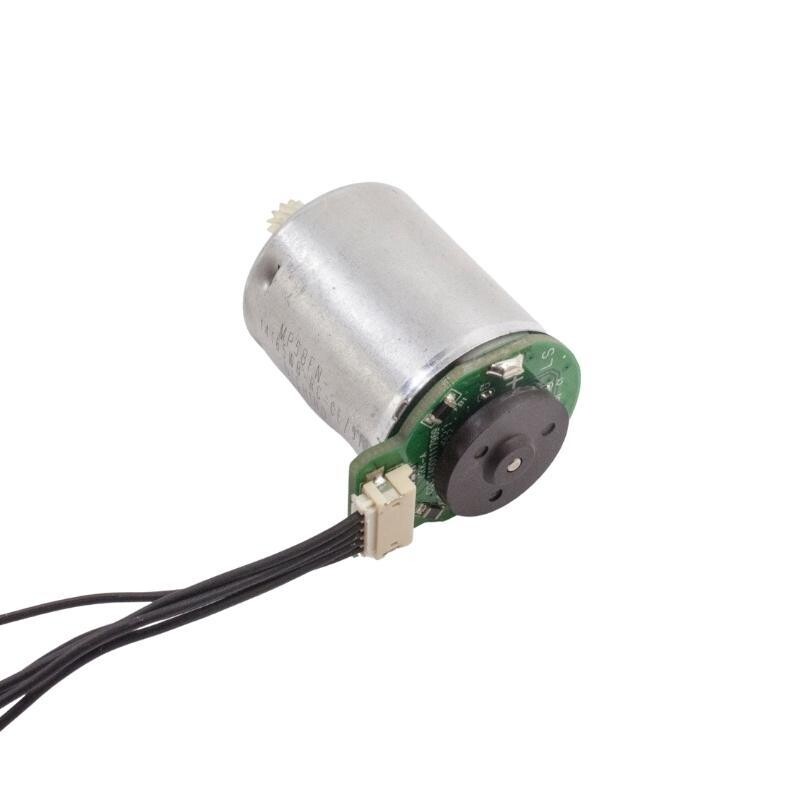

MP5BFN 12V DC Motor with Encoder and without Gearbox


MP5BFN 12V DC Motor with Encoder and without Gearbox. It has 12V DC operating voltage and 20 rpm rotation speed. Thanks to the Hall sensor on it, it converts the position and movement of the shaft into digital data and turns it into a signal.


Technical Specifications:

  • Operating Voltage: 6-24VDC (Recommended 12VDC)
  • Speed: 5000RPM
  • Idle Current: 0.07 A
  • Stress Current: 0.26A
  • Torque: 232 g.cm / 22.75nM
  • Power: 3.12W (Strength power)


Product Dimensions:

  • Motor Diameter: 27.5mm
  • Motor Body Length: 34mm (Excluding Shaft)
  • Shaft Length: 8.5mm
  • Shaft Diameter: 6mm

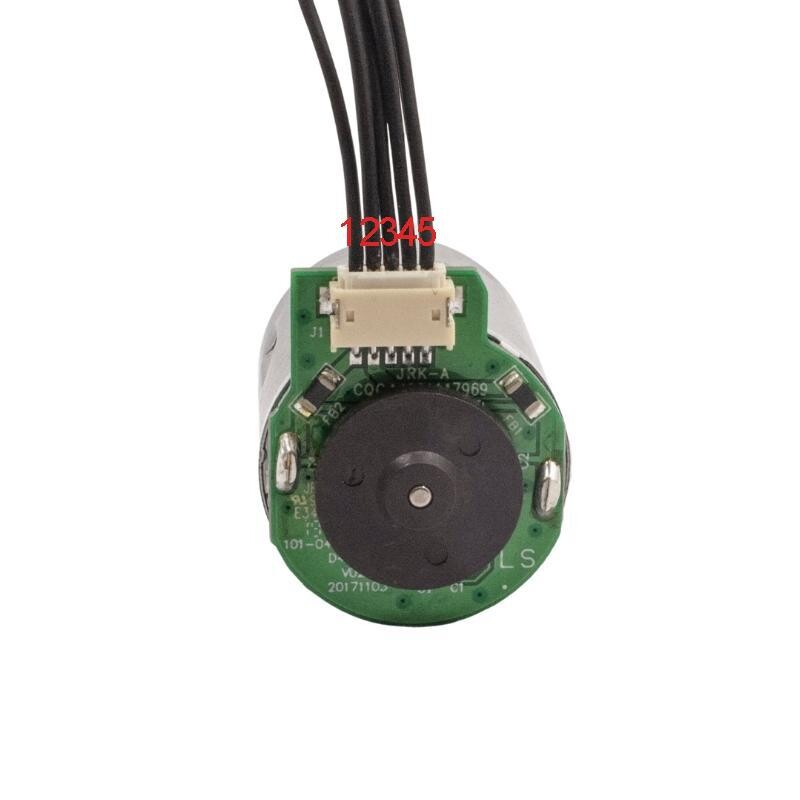

Encoder Connection:

  • 1: Motor +
  • 2: Motor -
  • 3: Encoder +
  • 4: Encoder -
  • 5: Signal
Weight(Kg)
0.1
