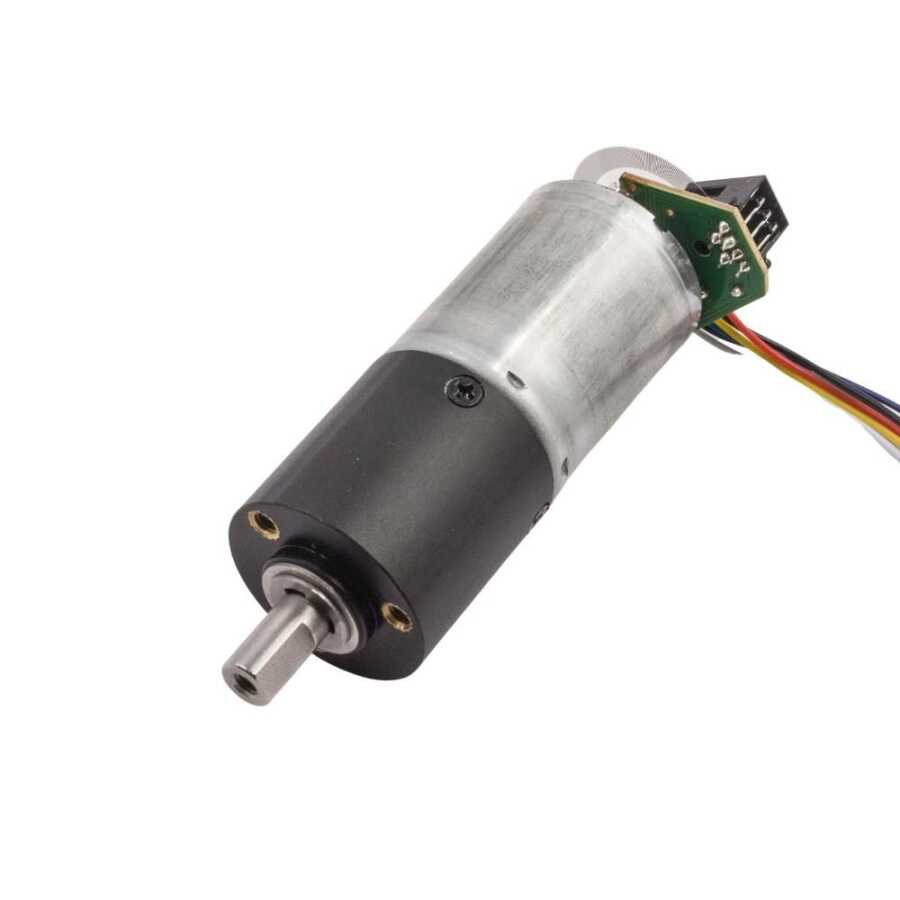

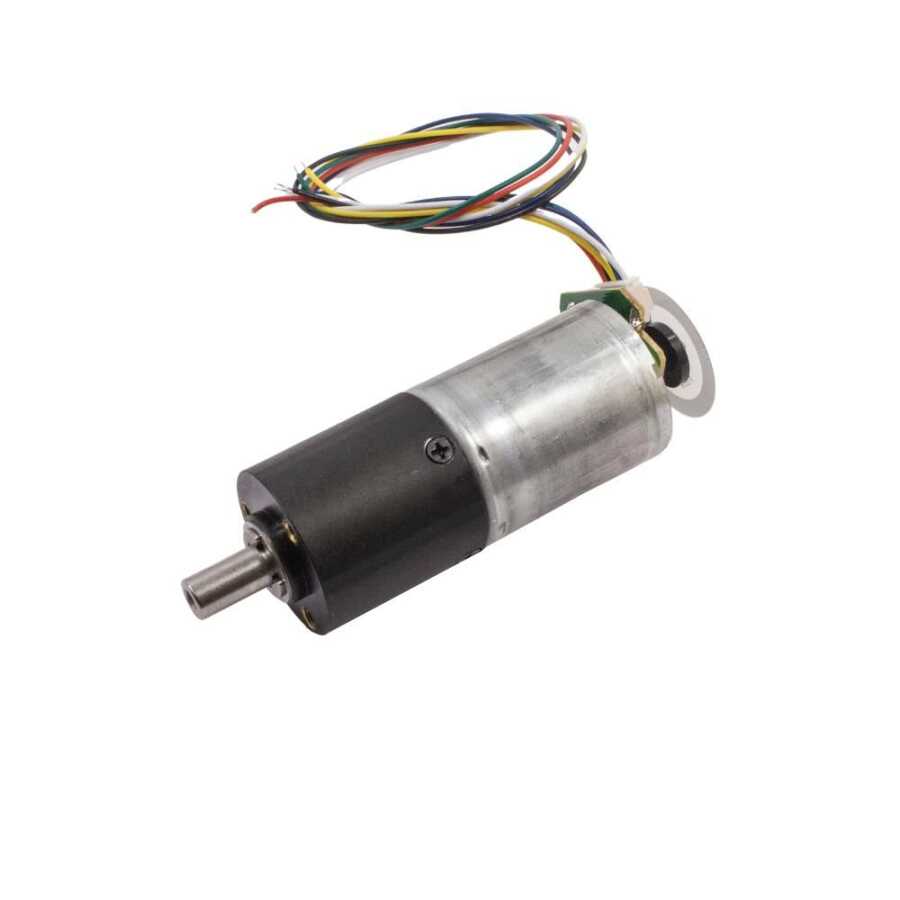

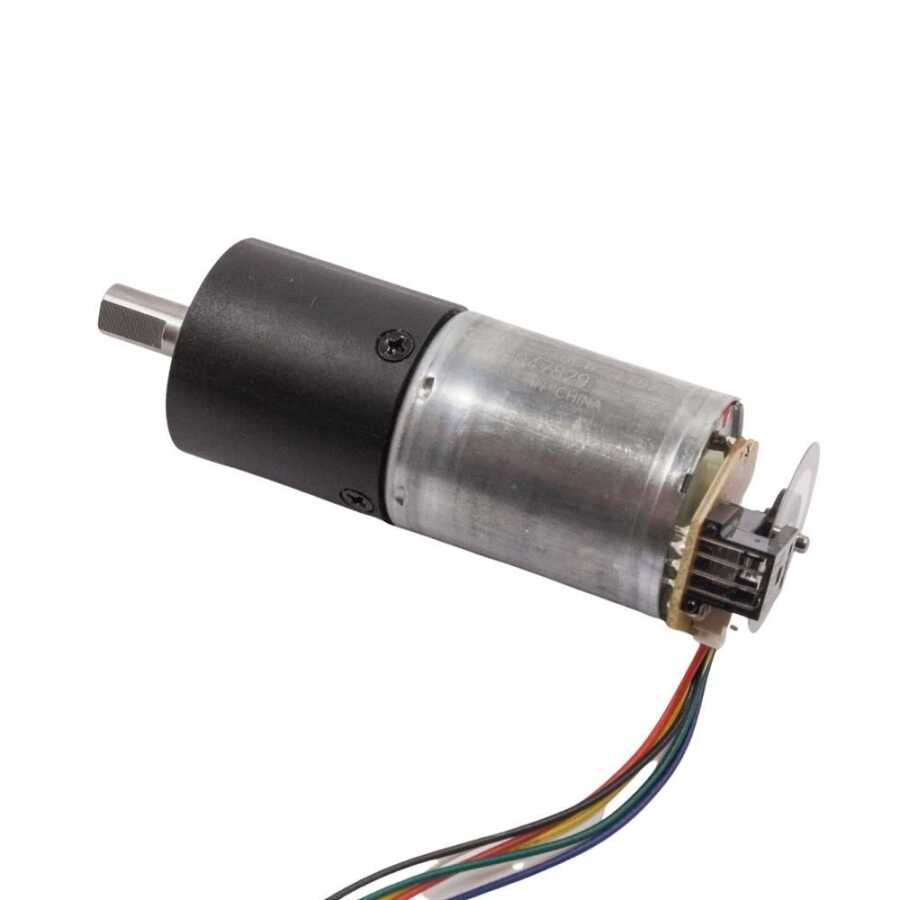

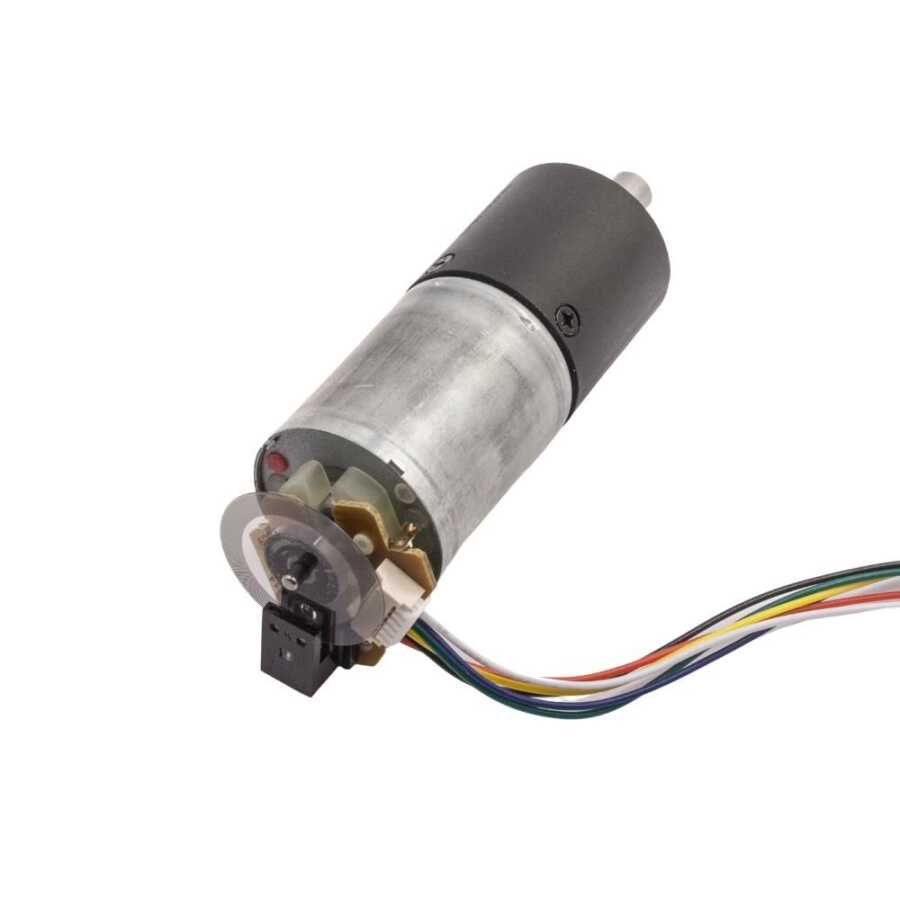

DC Motor with 12V Encoder
DC Motor with 12V Encoder. Thanks to the Hall sensor located on it, it converts the position and movement of the shaft on it into digital data and turns it into a signal. It has high precision. It gives 12000 pulses when the shaft rotates 1 turn.
Technical Specifications:
- Operating Voltage: 12VDC
- Idle Current: 0.01 A
- Power: 0.12W
- Rotation Speed: 80RPM
- Gear Ratio: 36:1
- 0.029 degree precision
- Weight: 75g
Product Dimensions
- Motor Diameter: 24.5mm
- Motor Body Length: 65mm (Excluding Shaft)
- Shaft Length: 11mm
- Shaft Diameter: 5.4mm
Encoder Connection:
- Red: 12V +
- Black: Motor -
- Yellow: Out A Signal
- Green: Ground
- Blue: Hall Sensor + 5V
- White: Out B Signal
