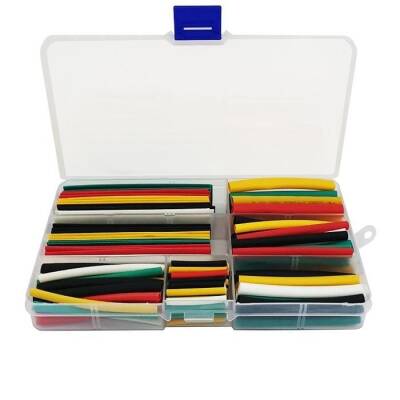

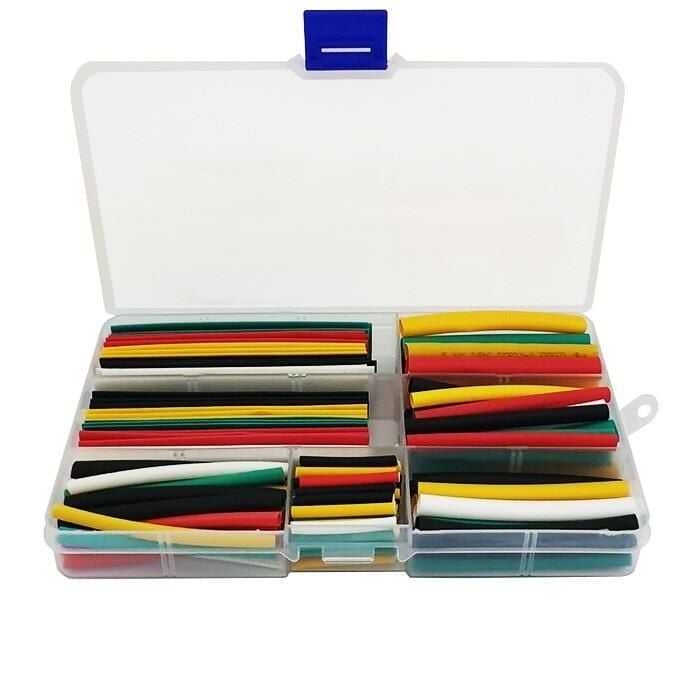

140 Piece Boxed Colored Sleeve Set
It is a tubing set created in 140 small pieces, with 7 different diameters and 5 different color options. Black, 5-color heat shrink tubing including Red, Blue, Yellow, Green is shipped in a storage box for easy access and transport.
Supplied inner diameter: 2.0mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm, 8.0mm, 10.0mm
Fully collapsed inner diameter: 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 4.0 mm, 5.0 mm
Color: Black, Red, Yellow, Blue, Green.
Technical Specifications
Shrink Ratio: 2:1
Material: Polyolefin
Minimum Tensile Temperature: + 70 ° C
Maximum Tensile Temperature: + 110 ° C
Operating Temperature: -55 ° C to + 125 ° C
Tensile strength: 10.4 Mpa
Dielectric strength: 15kV / mm
Package included:
- 50pcs x φ2.0 x 30mm
- 25pcs x φ3.0 x 65mm
- 15pcs x φ4.0 x 65mm
- 10pcs x φ5.0 x 65mm
- 10pcs x φ6.0 x 65mm
- 15pcs x φ8.0 x 90mm
- 15 pcs x φ10.0 x 90mm
