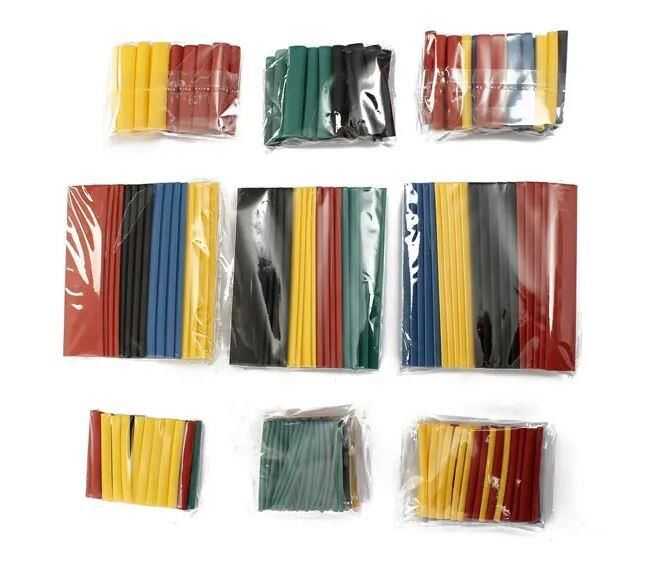

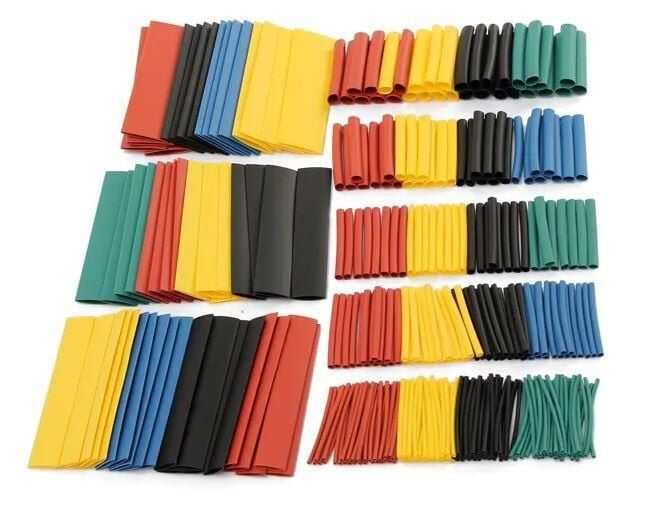

328 Piece Colored Sleeve Set
It is a tubing set created in 328 small pieces, with 8 different diameters and 5 different color options.
Supplied inner diameter: 1.0mm, 2.0mm, 3.0mm, 4.0mm, 6.0mm, 8.0mm, 10.0mm, minimum 14.0mm,
Fully collapsed inner diameter: 0.5 mm, 1.0 mm, 1.5 mm, 2.0 mm, 3.0 mm, 4.0 mm, 5.0 mm, 7.0 mm maximum
Color: Black, Red, Yellow, Blue, Green.
Technical Specifications
Shrink Ratio: 2:1
Material: Polyolefin
Minimum Shrinkage Temperature: + 70 ° C
Maximum Shrinkage Temperature: + 110 ° C
Operating Temperature: -55 ° C to + 125 ° C
Tensile strength: 10.4 Mpa
Dielectric strength: 15kV / mm
Package included:
- (Quantity x Supplied inner diameter x Single length)
- 120pcs x φ1.0 x 40mm
- 60pcs x φ2.0 x 40mm
- 32pcs x φ3.0 x 40mm
- 32pcs x φ4.0 x 40mm
- 32pcs x φ6.0 x 40mm
- 20pcs x φ8.0 x 80mm
- 16pcs x φ10.0 x 80mm
- 16pcs x φ14.0 x 80mm
