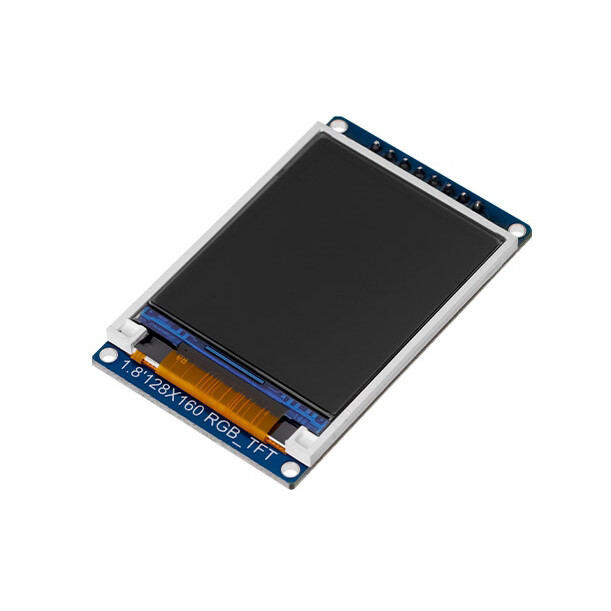

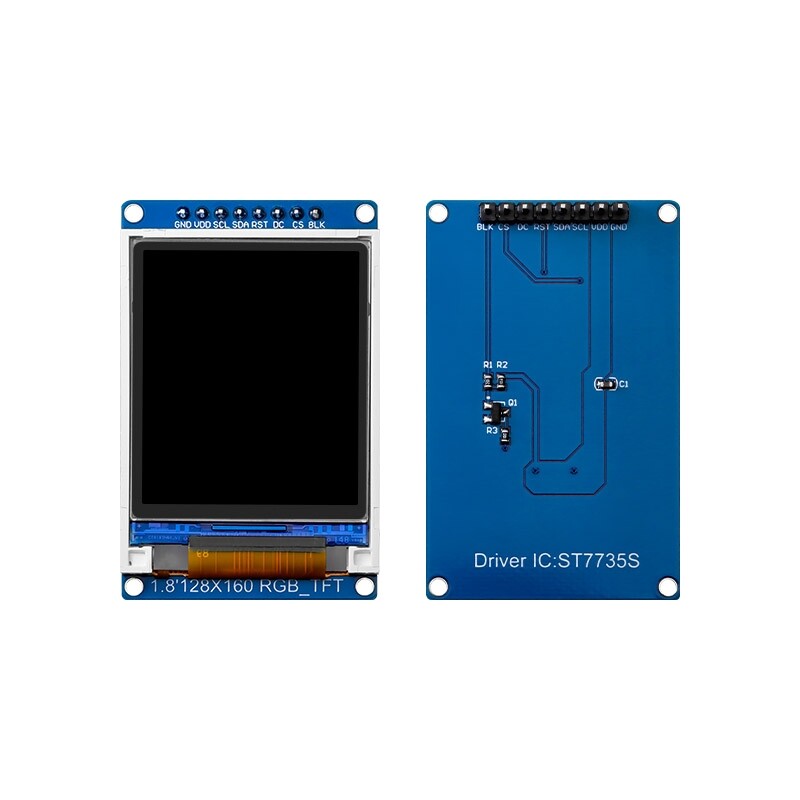

1.8" 128x160 SPI Full Color TFT LCD Display Module - ST7735S
1.8" 128x160 SPI Full Color TFT LCD Display Module - ST7735S.A-TFT display mode, It has a 128RGB x 160 Dot-matrix display format. Using the ST7735S IC driver, this display has a screen size of 1.8 inches.
Specifications:
- Screen Size: (Diagonal) 1.9 inches
- Display Mode: A-TFT
- Screen Format: 128x160

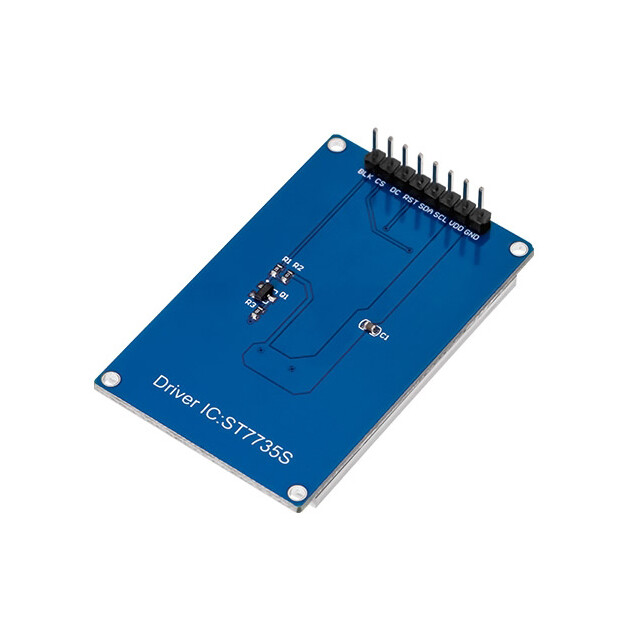

- Driver IC: ST7735S
- LCD Active Area: 28.03 (W) * 35.04 (H)
- Pixel Size: 0.219 (W) ) * 0.219 (H)
- Operating Temperature: -20 ~ 70°C
- Main line size: (WxHxT) 35 x 56 x 3.45 mm
