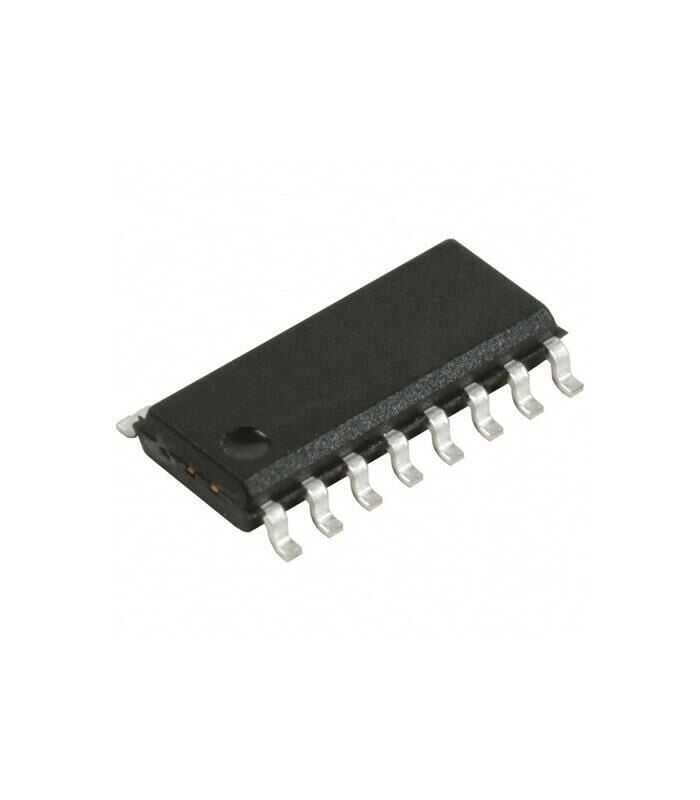

26LS31 - SO16 SMD EEPROM IC
AM26LS31, ANSI TIA / EIA-422-B and ITU (formerly CCITT) Recommendation V.11' It is a quad complementary output line driver designed to meet the requirements of 3-state outputs have high current capacity to drive balanced lines such as twisted pair or parallel cable transmission lines and are in a high resistance state in case of power down. The enable function is common to all four drives and offers the option of an active-high or active-low enable (G, G) input. Low-power Schottky circuit reduces power consumption without sacrificing speed.
Uses
- Motor Encoders
- Field Transmitters: Pressure Sensors and Temperature Sensors
- Military and Avionics Imaging
- Temperature Sensors or Controllers Using Modbus
| Series |
26LS31 |
| Input Voltage |
5V |
| TLL |
Compatible |
| Number of Pins |
16 |
| Package Type |
SO-16 |
