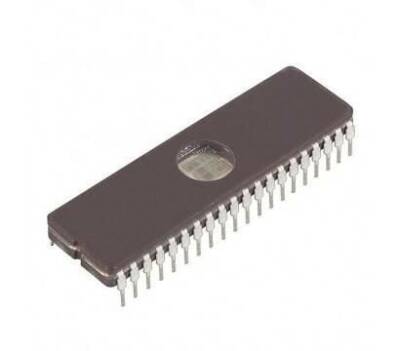

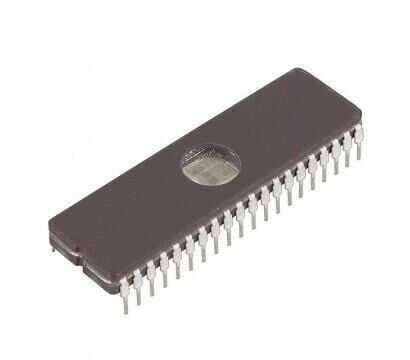

27C4001 - FDIP32W EEPROM Integrated
M27C4001 has two functions: UV (ultraviolet erasing) and OTP (one-time programmable). It is a 4 Mbit EPROM offered in December. It is ideal for microprocessor systems requiring large programs and is organized into 8-bit 524,288.
FDIP32W (window ceramic frit-seal package) and LCCC32W (lead-free chip carrier package) allow the user to It has a clear cover that allows it to expose the chip to ultraviolet light to erase the bit pattern. Then, a new pattern can be written to the device by following the programming procedure.
| Series | 27C4001 |
| Memory Size | 512kB |
| Organization | 512k x 8 (4Mbit) |
| Number of Pins | 32 |
| Package Type | FDIP-32W |
