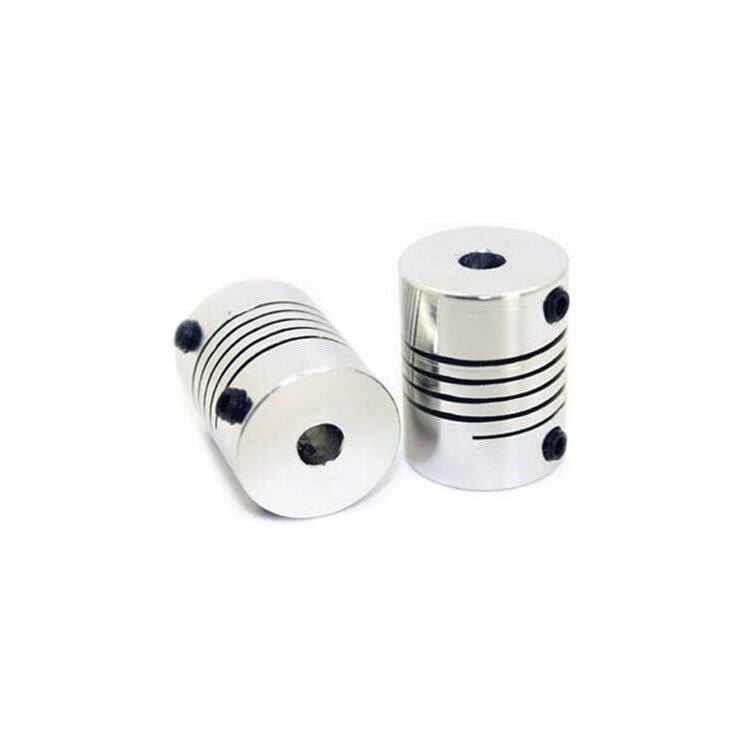

3D Printer Coupling 5mmx5mm
These flexible couplings are ideal for attaching a 5mm threaded rod or lead screw to standard NEMA 17 stepper motors. They have two screws per shaft, so they have a strong grip and do not slip! It is made of aluminum material.
It is used to convert the motor shaft from 5mm to 5mm. Flexible couplings allow slight misalignments in the shafts.
Application Fields DIV>
- Stepper motors
- Servomotors
- 3D Printer Systems
- CNC Projects
  ;
Technical Specifications
- Material: Aluminum
- Length: 25mm
- Outer diameter: 19mm LI>
- Inner diameter 1: 5mm
- Inner diameter 2: 5mm
- 4 x M3 fixing screws
