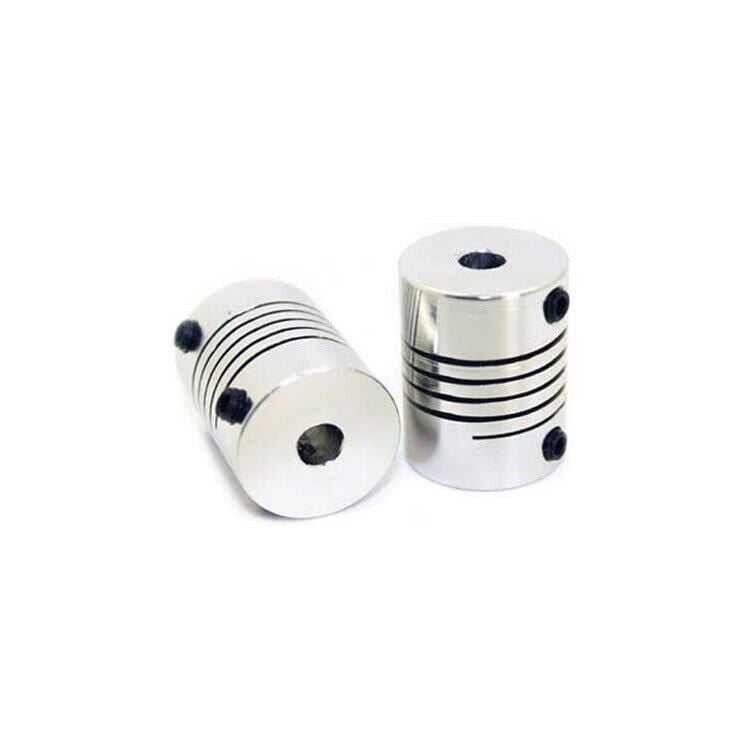

Aluminum Flexible Coupling 8x10mm
These flexible couplings are ideal for installing 8mm threaded rod or lead screw into standard NEMA 17 stepper motors. They have two screws per shaft, so they have a strong grip and do not slip! It is made of aluminum material.
It is used to convert the motor shaft from 8mm to 10mm. Flexible couplings allow slight misalignments on shafts.
Application Areas
- Stepper motors
- Servomotors
- 3D Printer Systems
- CNC Projects
Technical Specifications
- Material: Aluminum
- Length: 25mm
- Outer diameter: 19mm
- Inner diameter 1: 8mm
- Inner diameter 2: 10mm
- 4 x M3 fixing screws
