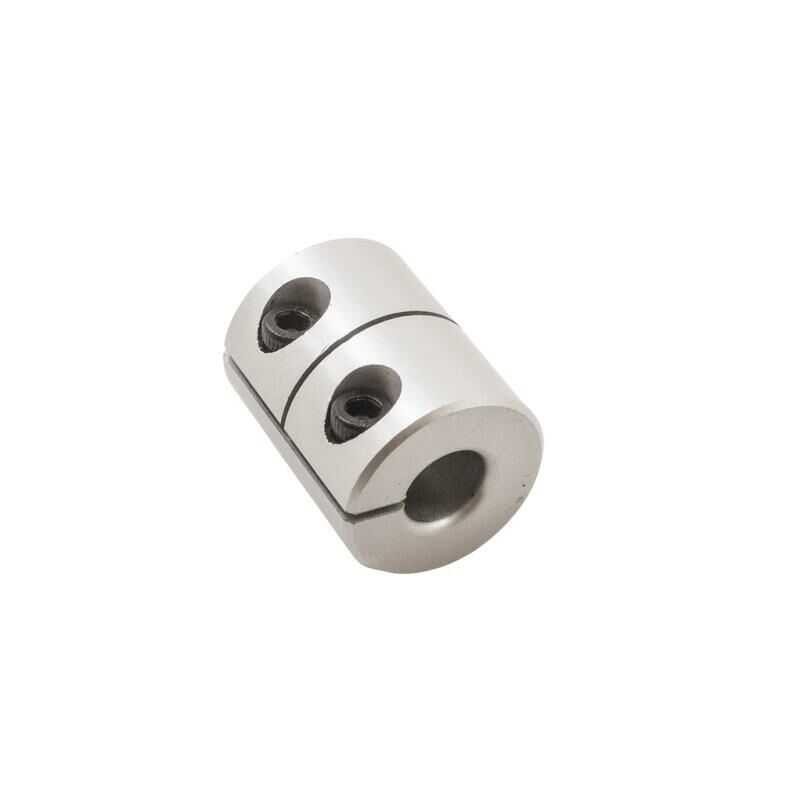

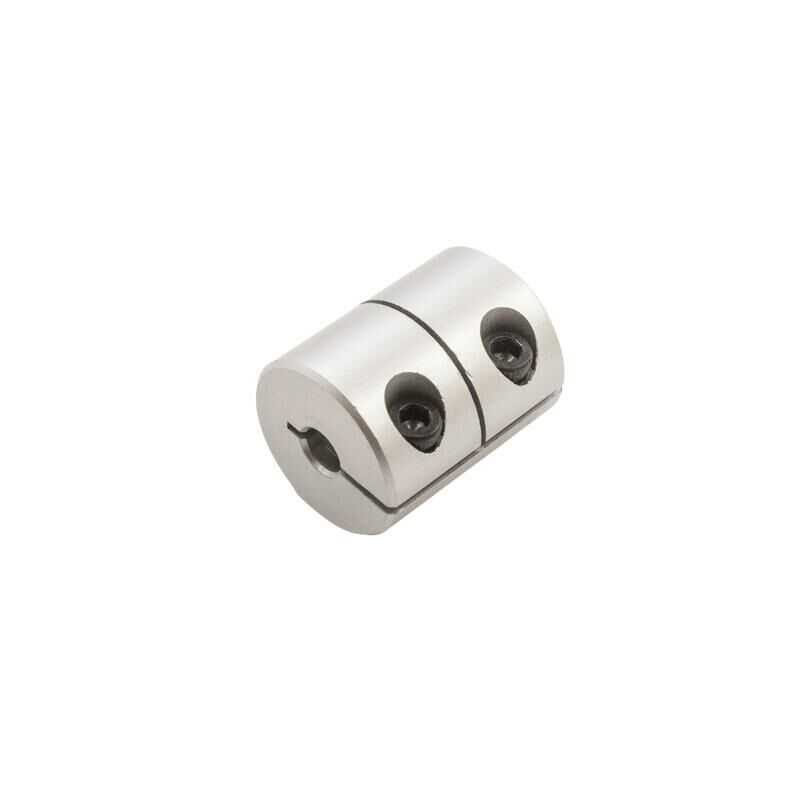

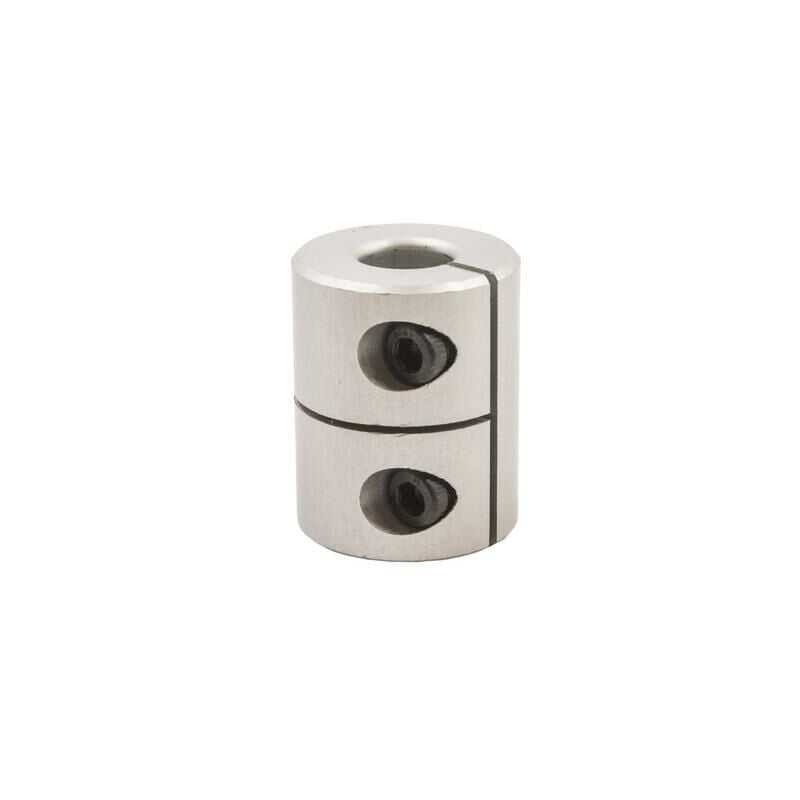

3D Printer Coupling 5mmx8mm
These flexible couplings are ideal for attaching a 5mm threaded rod or lead screw to standard NEMA 17 stepper motors. They have two screws per shaft, so they have a strong grip and do not slip! It is made of aluminum material.
It is used to convert the motor shaft from 5mm to 8 mm. Flexible couplings allow slight misalignments in the shafts.
Application Fields DIV>
- Stepper motors
- Servomotors
- 3D Printer Systems
- CNC Projects
  ;
Technical Specifications
- Material: Aluminum
- Length: 25mm
- Outer diameter: 20mm LI>
- Inner diameter 1: 5mm
- Inner diameter 2: 8mm
- 4 x M3 fixing screws
