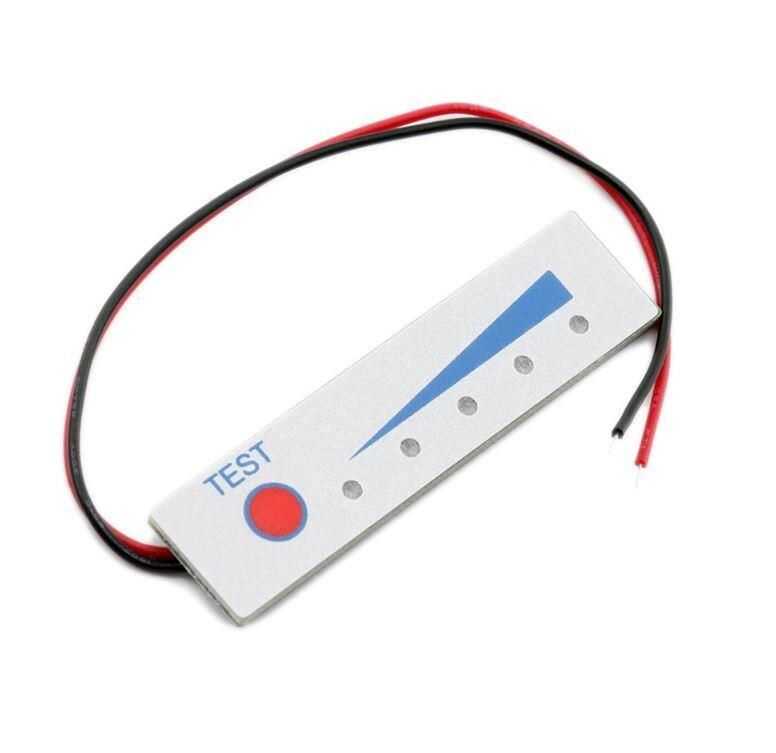

4S Lithium Battery Capacity Indicator
Allows you to instantly see the status of your battery with the Lipo battery capacity indicator. Compatible with 4S lipo batteries.
Connection
- The black cable is connected to the "-" end.
- The red cable is connected to the "+" end.

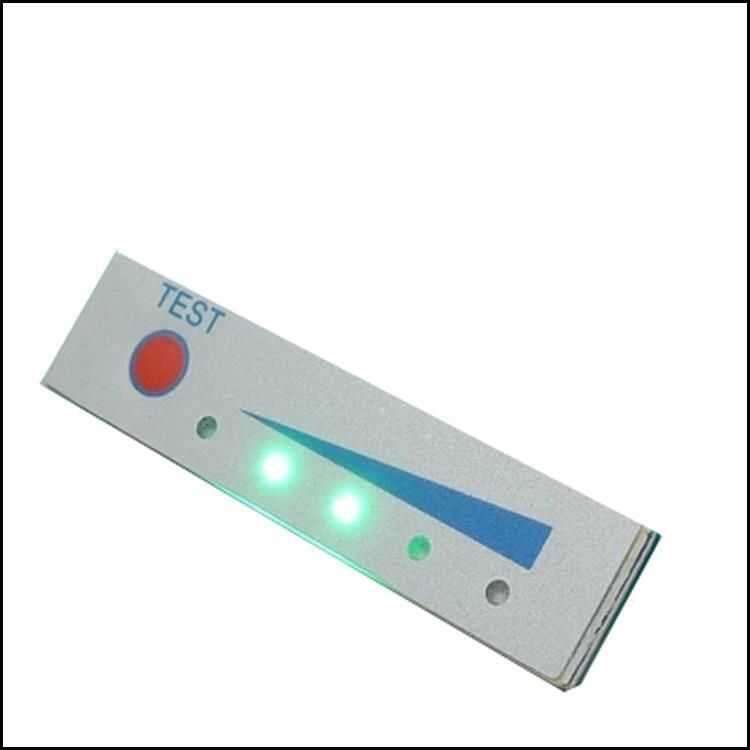

- After connecting the positive and negative terminals of the test panel to the positive and negative side of the tested battery, it will show the battery level when you press the TEST button.
- After 3-5 seconds, the battery display will turn off and there will be no power consumption.
NOTE: If you connect the cables in reverse, the instrument panel will be damaged.
Technical Specifications

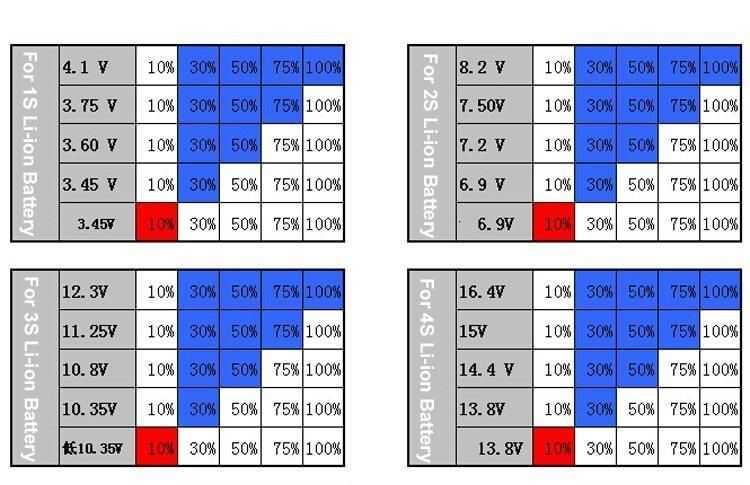

- Model: 4S(11.2V-16.4V)

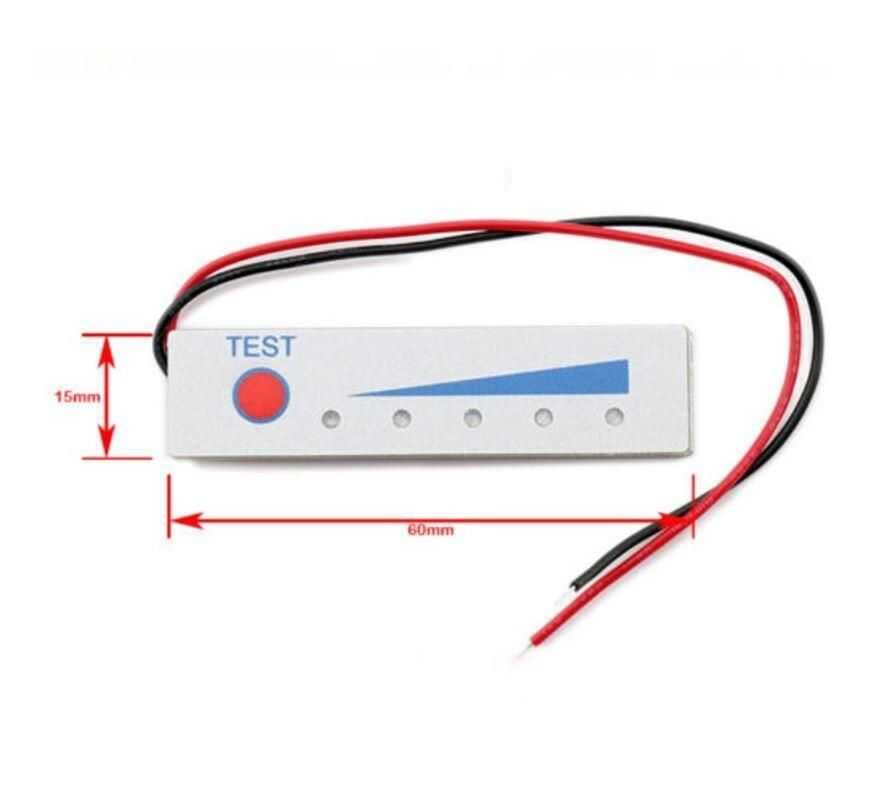

- Dimensions: 60x15x2.8mm
- Active Current: 10ma
