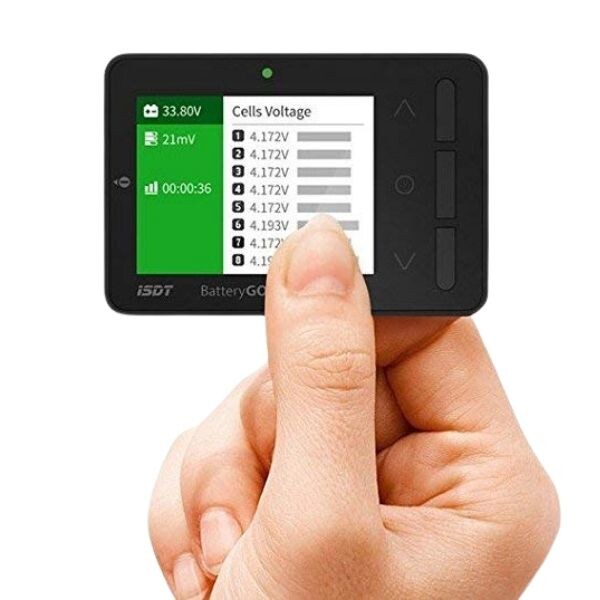

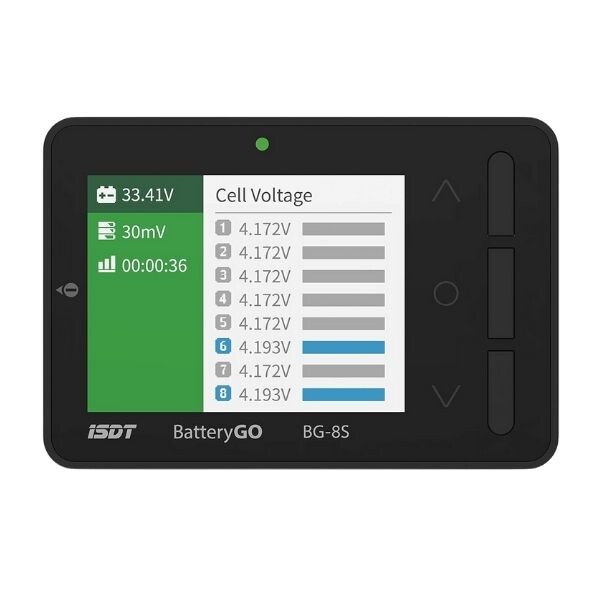

Notify me when its in stockWith the BatteryGo BG-8S Smart Battery Checker & Balancer, you can get full information about your battery’s detailed parameters just by connecting the XT60.
It is easy to read cell voltage, battery cycles, operating parameters and quickly adjust to your preferred settings.
Advanced auto-balancing algorithm balances each cell well. After completion, it will automatically switch to low power mode.
Supports Qualcomm QC 2.0/3.0, compatible with BC1.2 and Apple devices. Maximum output 12V/2A.
With standard 3-pin plug, BG-8S can detect BEC output voltage.
BG-8S also supports multiple protocol analysis including PWM, PPM&S.BUS etc.
Supports XT60/XT60i, XH2.54 1-8S balance cable, XH 2.54 3pin, JST ETC to measure voltage.
Supports LiHv, LiPo, Lilon, LiFe, NiMh/Cd battery and BEC output measurement.
"2" Menu button Short press to enter the setting menu. Long press "1" "3" Up/Down Button to enter smart battery menu Go up and down, select different setting options.
This product is suitable for lithium battery with XH 2.54 balance port, connect the balance port by aligning it from BAT as shown in the figure. When connecting 1S battery, the input voltage from XT60i should be more than 5V.
