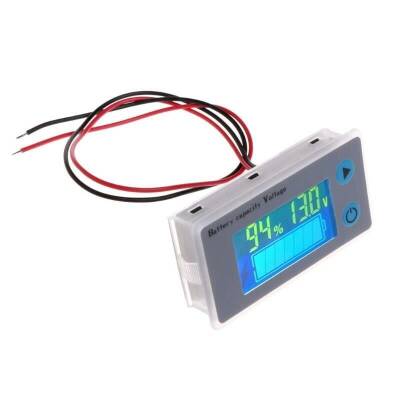

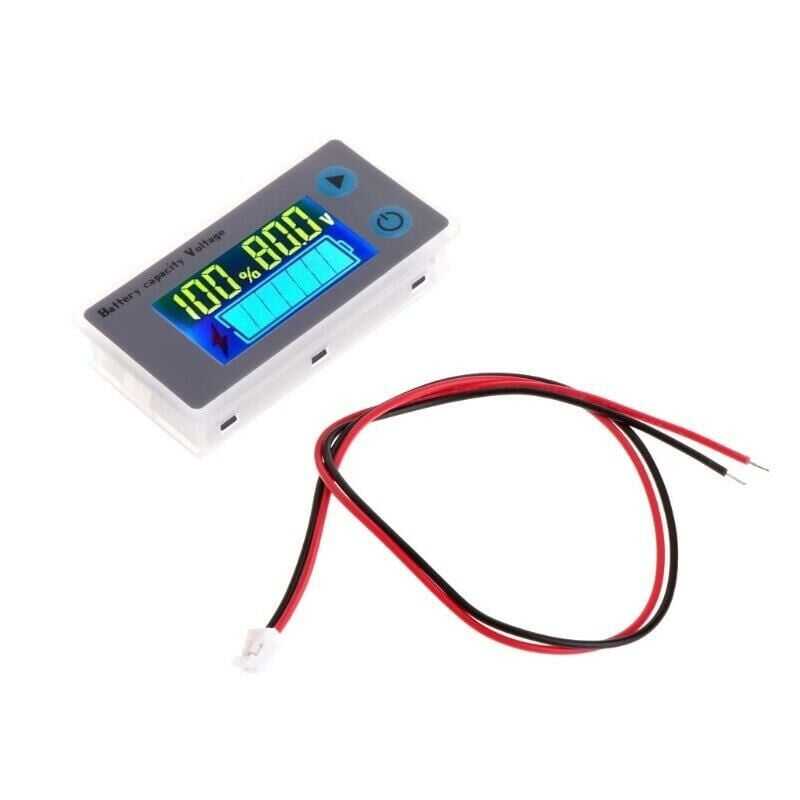

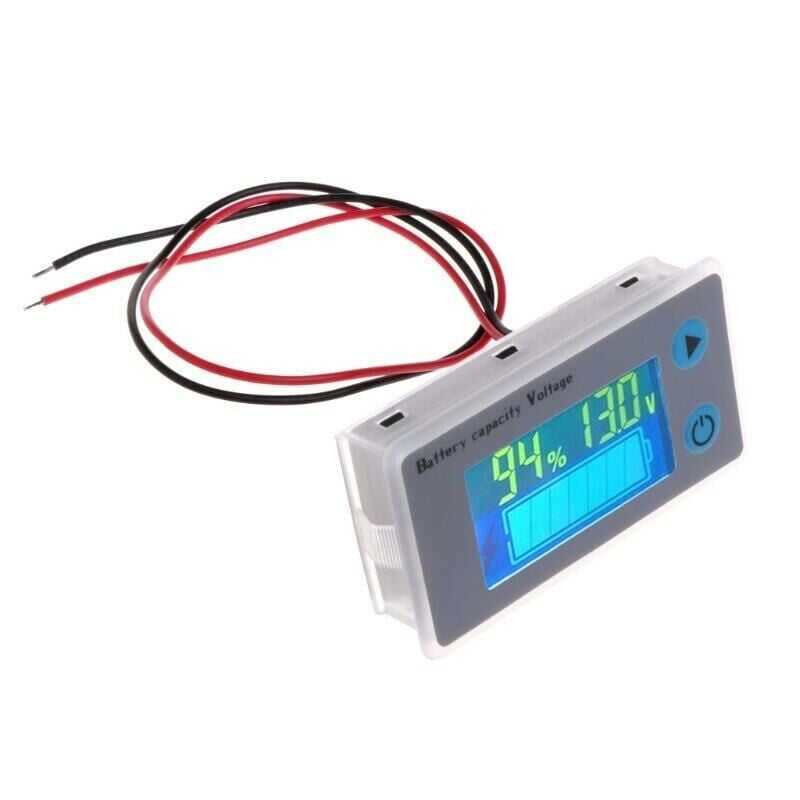

JS-C33 DC 10-100V Lithium Battery / Battery Capacity Indicator
JS-C33 DC 10-100V Lithium Battery / Battery Capacity Indicator. It is a product that allows you to monitor the voltage values and charge rates of lithium batteries and accumulators. The type of battery you want to measure is selected using the function keys on it and the measurement is performed. The screen is colored.
The menu is opened by pressing and holding the top button. While the menu is open, each time the top button is pressed, it moves to the next function. When you want to select a function, press the button below to switch to the voltage option. When the desired value is selected here, the button below is pressed again and waited. It is ready for use when the screen returns.
- P: Battery option. It can measure 12V - 24V - 36V - 48V - 60V - 72V - 84V batteries.
- L: Lithium battery option. It can measure between 3-20 batteries connected in series.
- F: Iron Lithium battery option. It can measure between 3-23 batteries.
