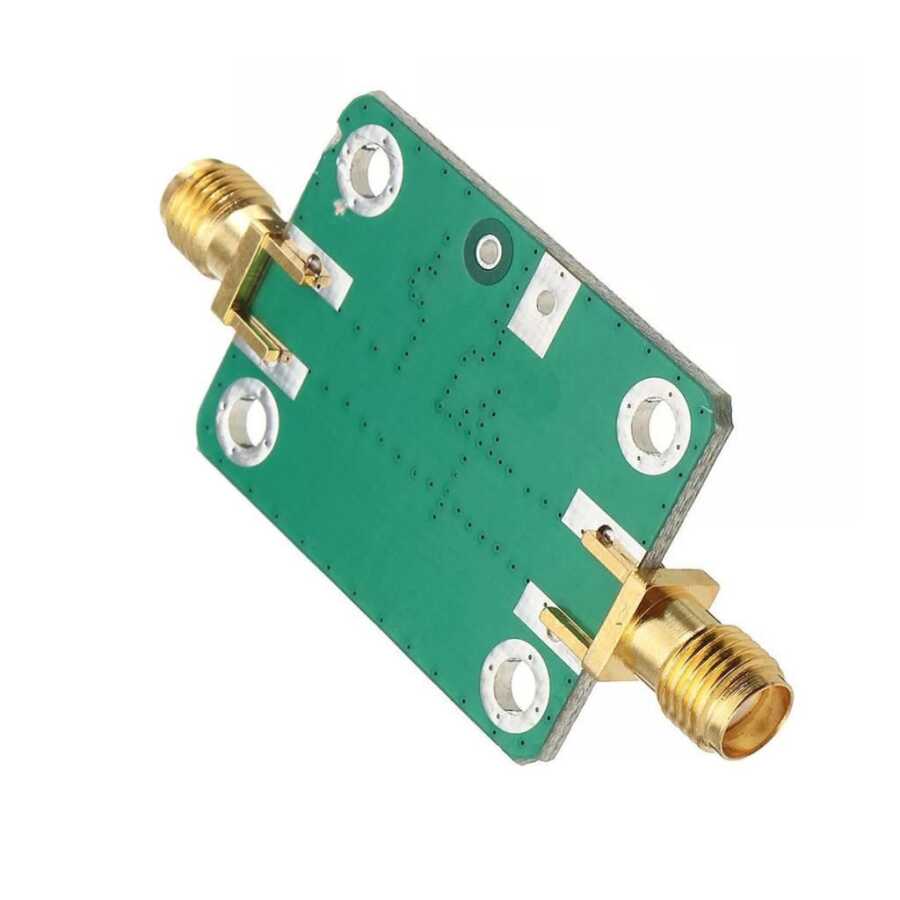

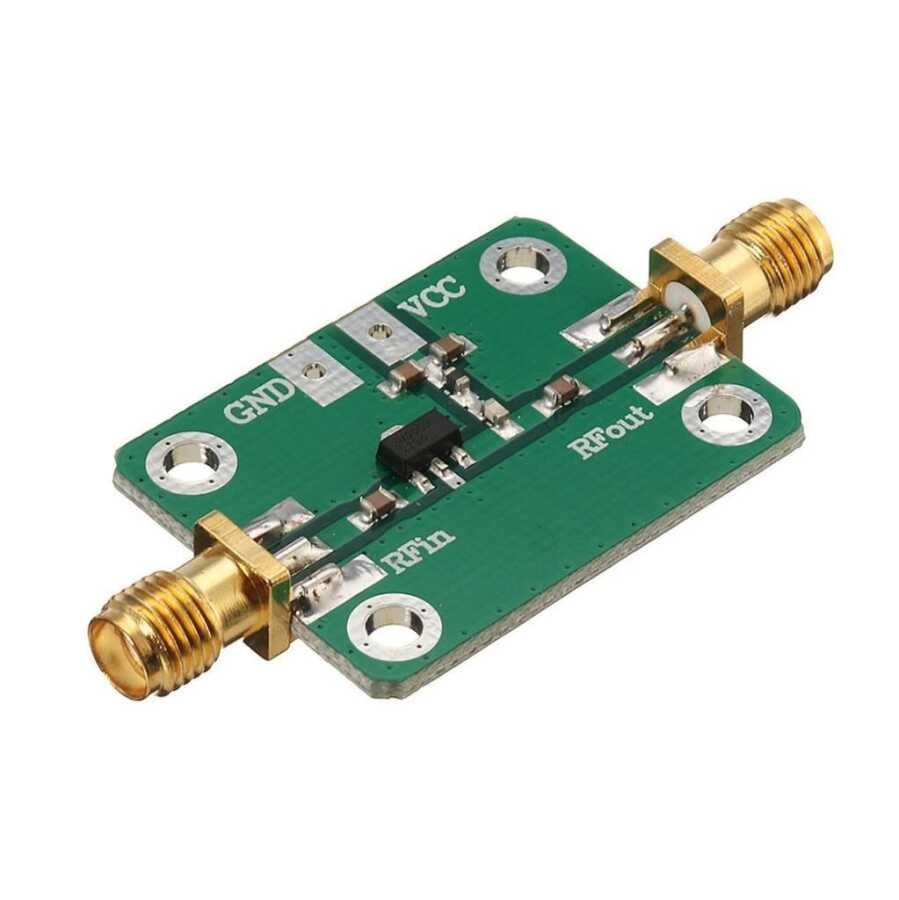

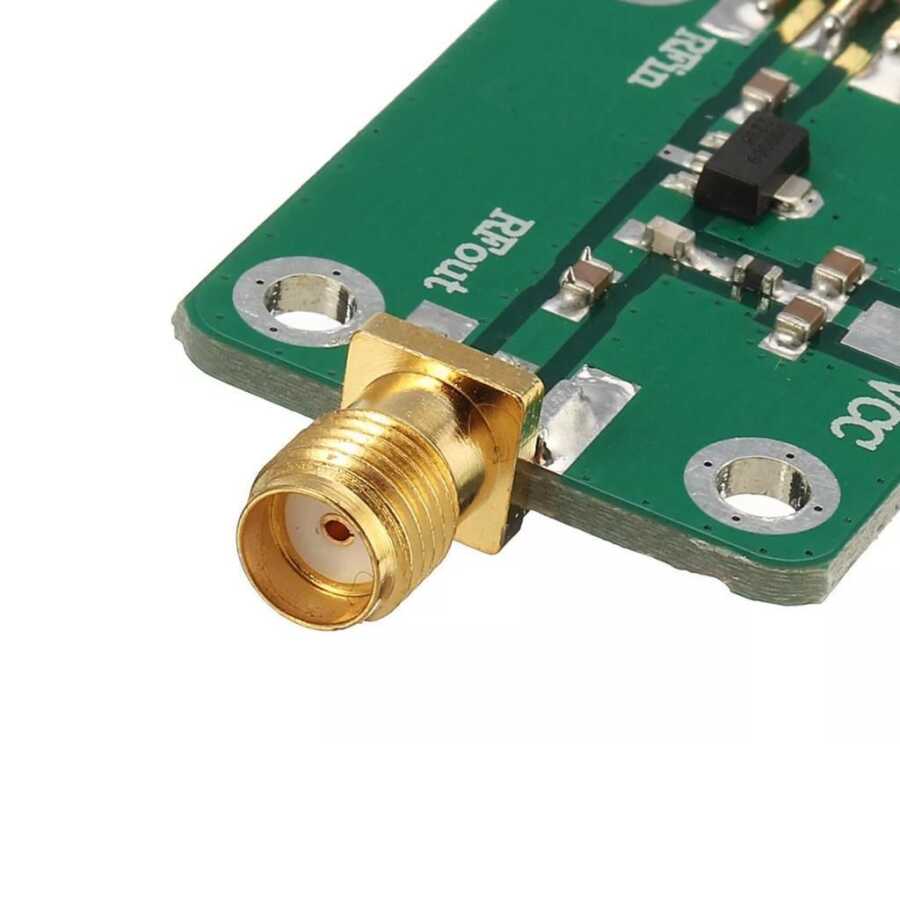

50-4000MHz 21.8dB RF Wideband Low Noise Amplifier
The low noise amplifier module has a higher gain and very low noise over a wide frequency range provides. It provides communication between the receiver and transmitter. The amplifier operates from a single +5V supply. It has very good stability and has a wide dynamic range and a wide operating frequency range. Suitable for constant gain amplification of various RF signals.
Technical Specifications
Operating frequency: 50-4000MHz
Amplification gain: 21.8dB (typ.)
Noise rating: 1.3dB (typ.)
Maximum power: +22dBm (150mW) @1dB compression point
Operating current: 125mA (5V)
Power supply voltage: 5VDC
System impedance: 50 ohm
