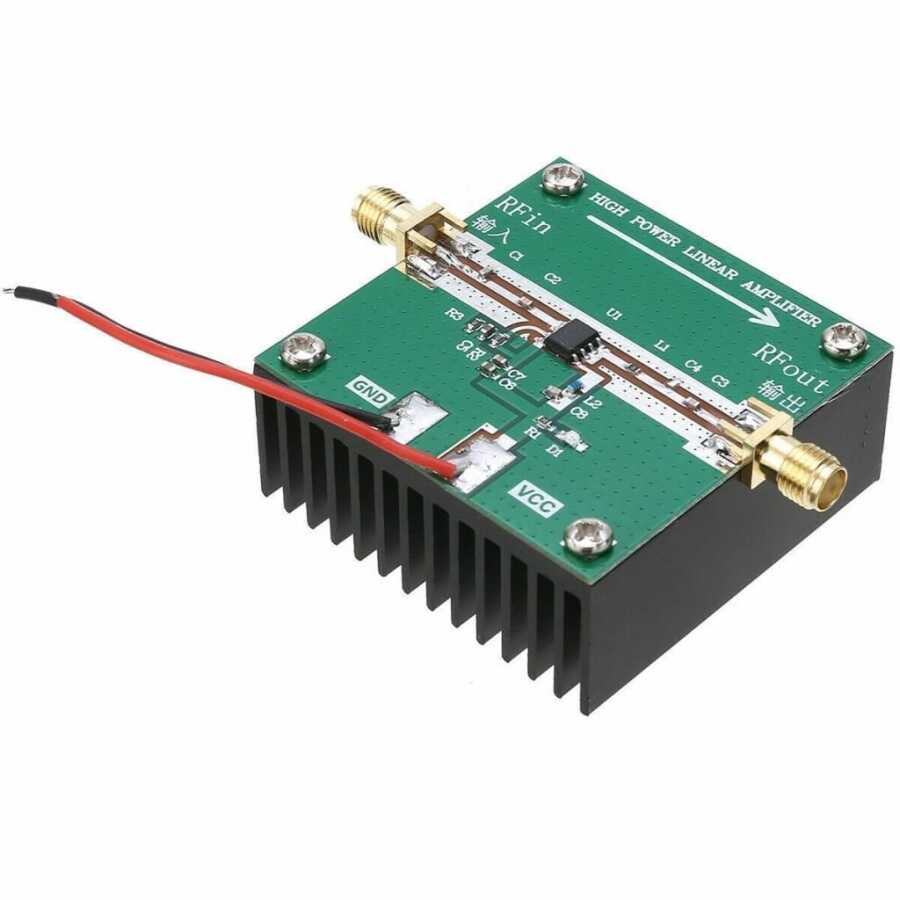

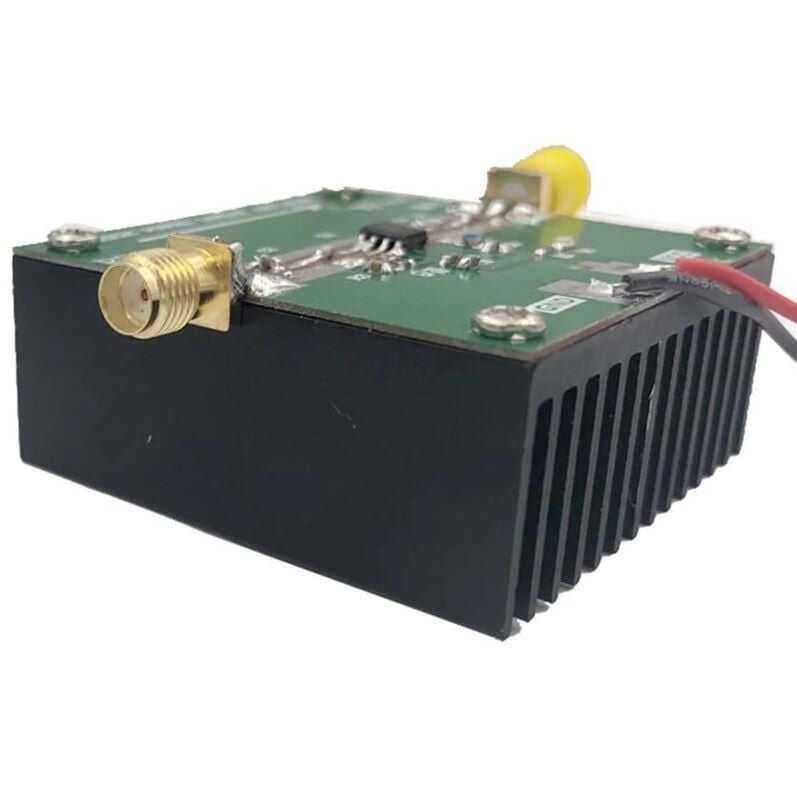

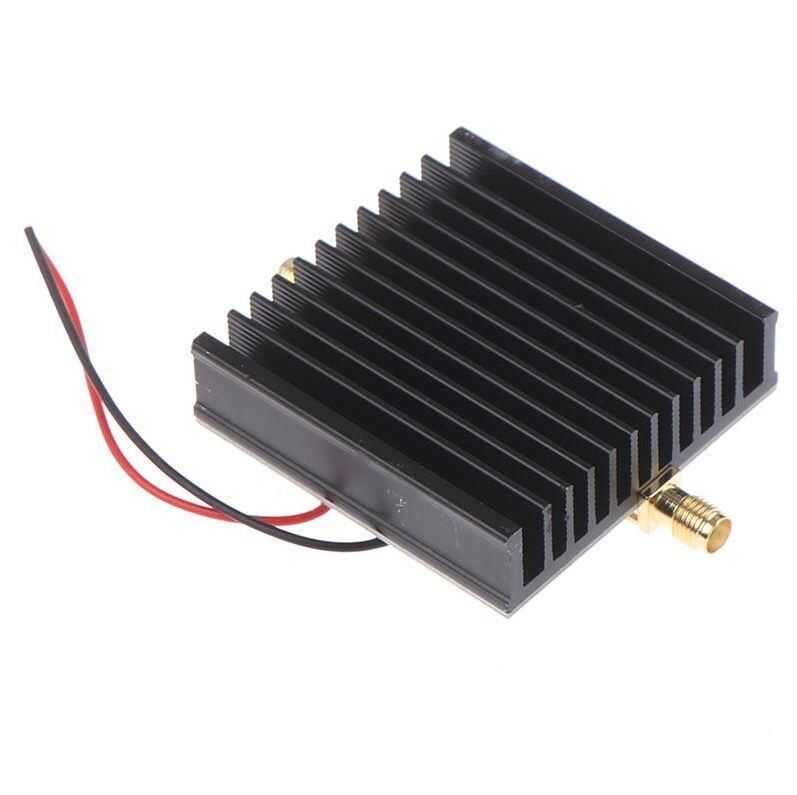

RF2126 400M-2700MHZ RF Power Amplifier
RF2126 400M-2700MHZ RF Power Amplifier. It is a high power, high efficiency, linear amplifier IC. The device is manufactured with the advanced Gallium Arsenide Heterojunction Bipolar Transistor (HBT) process and is designed for use as the final RF amplifier in 2.45 GHz ISM applications. This part will also function as the final stage in transmitters requiring linear amplification operating between 400MHz and 2700MHz. The device is packaged in a back-grounded 8-lead plastic package.
Specifications:
- Voltage: 6V
- Current: 500mA
- Gain: 12DB@2450MHz
- Operating Frequency: 400-2700MHz
- Input and Output Impedance : 50Ω
- Dimension: 70x50x20mm
Application Areas
- 2.5GHz ISM Band Applications
- Digital Communication Systems
- PCS Communication Systems
