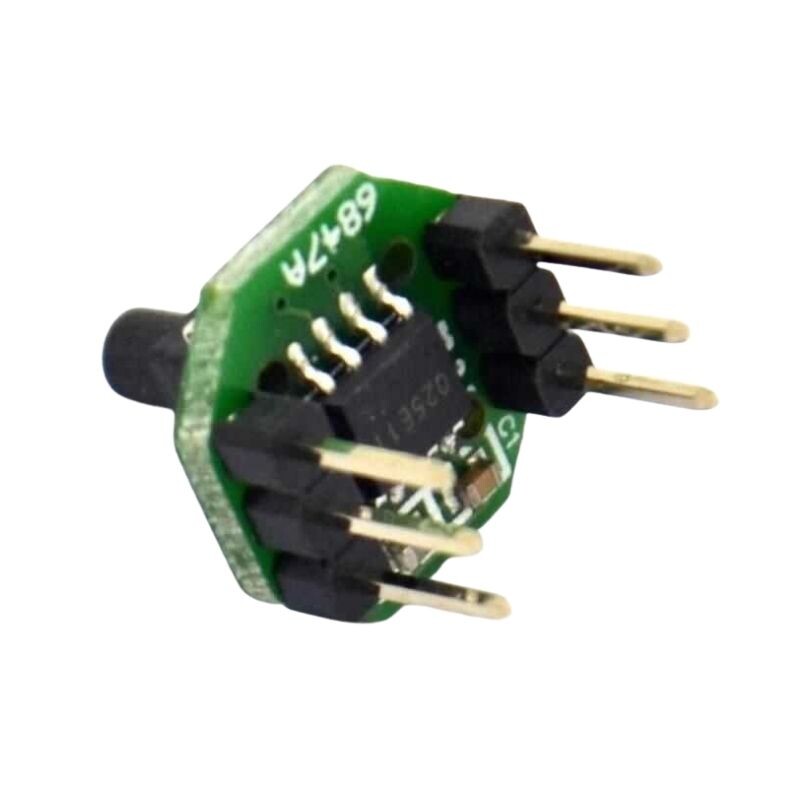

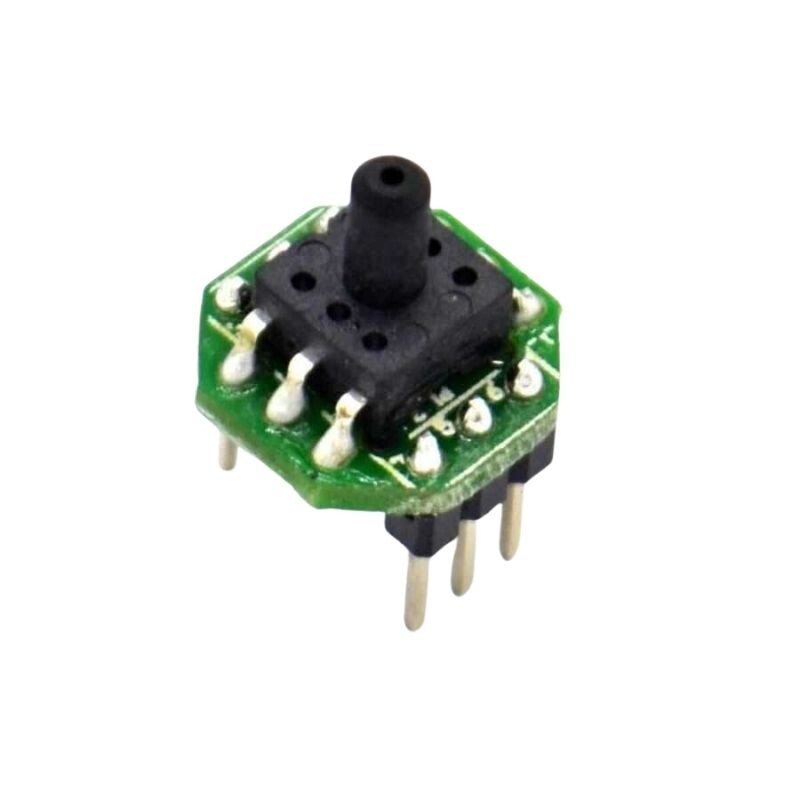

6847A 3.3V 0kPa - 40kPa Pressure Sensor Transmitter Module
6847A is an excellent silicon pressure sensor module that offers a proportional analog interface to read pressure over the specified full-scale pressure range and temperature range. It includes a silicon piezoresistive pressure sensor (XGZP SOP6) and an Application Specific Integrated Circuit (ASIC) built under the PC board with a DIP6 package.
6847A, offset, sensitivity, It is fully calibrated and temperature compensated for temperature and non-linearity, so the 6847A pressure sensor module meets excellent repeatability, linearity, stability and sensitivity, which can be directly applied to medical equipment, fitness machine, home electronics. and other pneumatic devices etc.
Features:
- Ranges: 0-40kPa
- Excellent Accuracy of full scale(±1.0%)
- Gage, Vacuum Type
- For non-corrosive gas or dry air
- Calibrated, Amplified analog output
- Temperature Compensated:0 +85 (32+185)
- Direct application, Low Cost.
