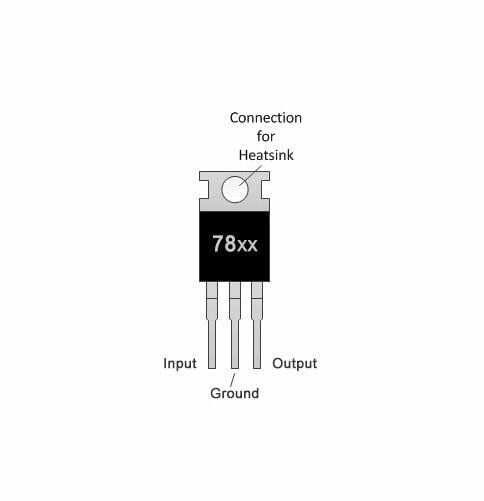

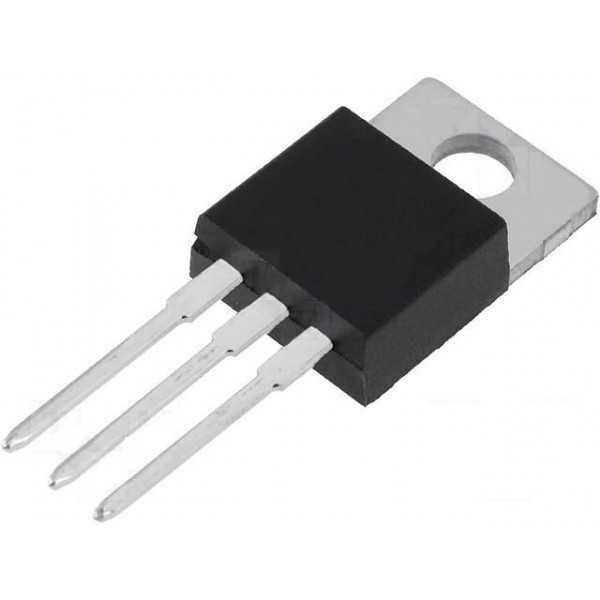

7824 Voltage Regulator - TO220
The 7824 is a three-terminal positive Voltage Regulator that limits voltage output to 24V, making it useful in a wide variety of applications.
Each type includes internal current limiting, thermal shutdown, and safe area protection, making it essentially indestructible. If sufficient heat reduction is achieved, they can deliver 1A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to achieve adjustable voltages and currents.
Uses
Circuits requiring a constant 24v supply
| Series |
L78 |
| Output Type |
Solid |
| Output Voltage |
+ 24V DC |
| Input Voltage |
27.1 - 40VDC |
| Current Output |
1.5A |
| Package Type |
TO-220 |
