ADS2031H Digital Oscilloscope 30MHz 200Ms/s



2031H is a full-function, high-benefit, high-performance and cost-effective handheld oscilloscope for the maintenance industry and R&D industry . The oscilloscope has a real-time sampling rate of up to 200MS/s and an analog bandwidth of 30MHz. With full trigger function (single, normal, automatic), both periodic analog signal and aperiodic digital signal can be used freely. Large time-based scan mode can monitor slow level changes. Equipped with a high efficiency button AUTO, the measured waveform can be displayed without complex adjustment. Display 2.4inch High Definition LCD screen with 320*240 resolution. Extremely convenient and fast waveform storage function, built-in 16MB storage space, maximum storage of 500 waveform photos. Powerful waveform file manager supports thumbnail browsing, viewing, detail view, flipping, deleting and other functions. Built-in 1200mAh rechargeable lithium battery, can be continuously charged for 3 hours at a time.

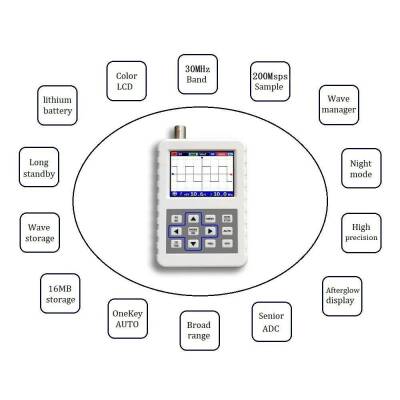

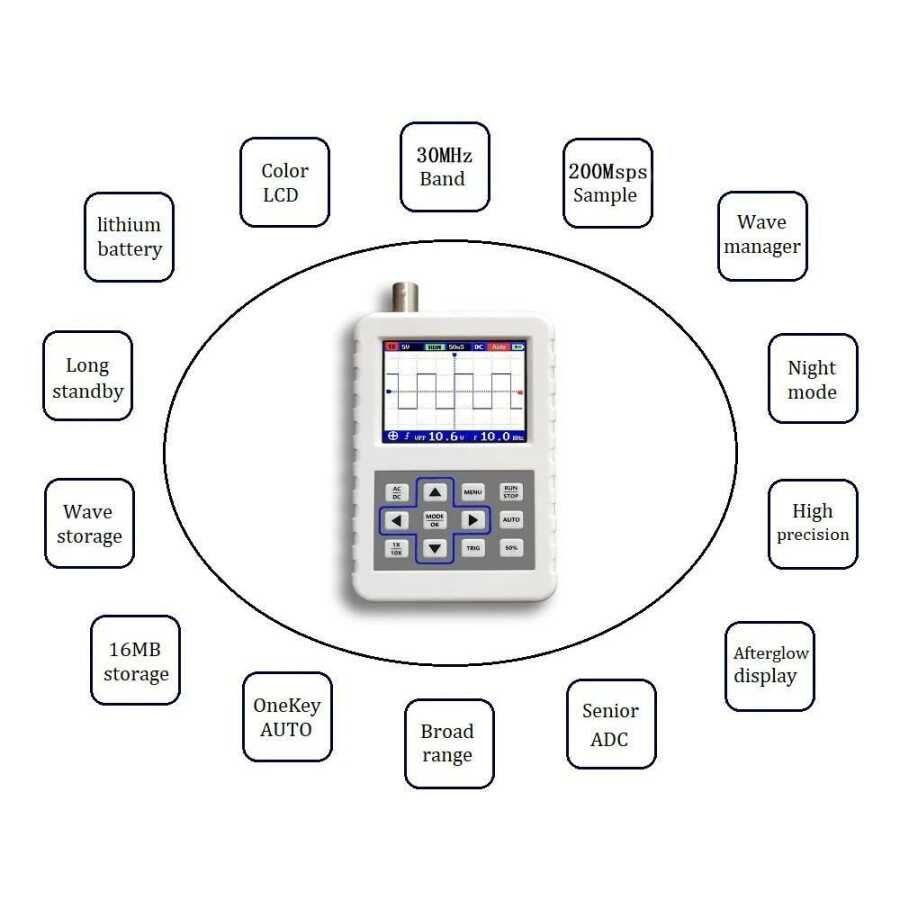

2031H Features:

• Memory compression technology, waveform refresh screen does not flicker.
• Extremely bright screen technology.
• 2.4 inch color screen.
• 30MHz analog bandwidth @ 200MS / s sampling rate.
• Fast waveform storage.
• Built-in 16M storage, maximum storage of 500 waveform photos.
• Powerful waveform file manager, thumbnail Supports scanning, viewing, detail view, flipping, deleting and other functions.
• High measurement voltage range, can measure 1X 0 ~ 40V, 10X 40 ~ 800V.
• Measurement of up to 11 parameters : VPP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty +, Duty-, Time +, Time-, Time.
• At any time, the waveform indicator (pause function) freezes.
• Equipped with a high-efficiency button AUTO.
• Full trigger function
• Built-in 1200mAh rechargeable lithium battery, can be continuously charged for 3 hours at a time.
• Day mode and night mode.
• Ultra small volume, easy to carry.
• Material: ABS
• Analog Bandwidth: 30MHz
• Maximum Realtime Sampling Rate: 200MS/s
• Vertical Sensitivity: 50mV/div ~ 200V/di
• Horizontal Time Base Range: 50S/div ~ 250nS/di
• Maximum Input Voltage: 40V
• Storage Depth: 40KB
• Input Resistance: 1M
• ADC Sensitivity: 8 bit
• Combining Mode: AC / DC
• Trigger Mode: Single, normal, automatic
• Trigger Edge: Rising / falling edge
• External Trigger Voltage: 0 ~ 40V
• Power Supply: 3.7V, 1200mAh lithium battery
• Oscilloprobe Bandwidth: 80MHz
• Oscilloprobe Max. Input Voltage: 600V (DC + ACp-p)
• Oscilloprobe Input Resistance: 10MΩ
• Oscilloprobe Attenuation Ratio: X1 m / 3.94in
