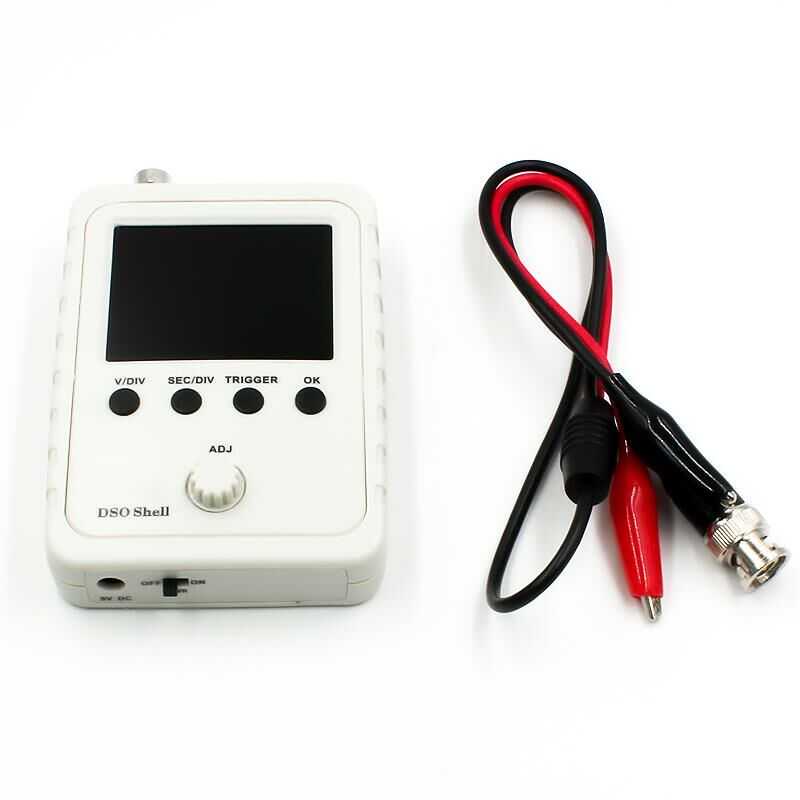

DSO150 Shell Mount Oscilloscope Kit

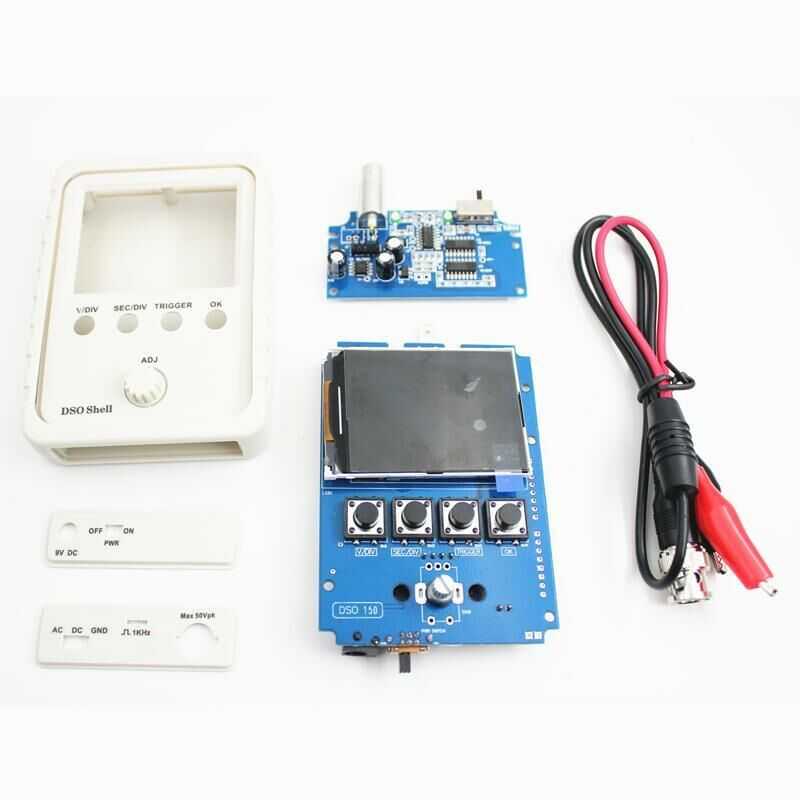

DSG SHELL (DSO150) digital oscilloscope kit includes ARM Cortex-M3 processor and 2.4 inch TFT screen. The protective case is fully compatible with the assembled oscilloscope kit. It is easy and reliable for circuit operation. It can display waveform parameters such as frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.

Features:

• Adopt ARM Cortex-M3 processor (STM32F103C8) and 2.4 inch color TFT with display.
• This is used for secondary development on a kit basis, for example Millivoltmeter can be changed to data logger.
• Comes with instructions easy to install and use.
• Automatic / It is easy to capture the moment waveform with Normal / Single trigger modes.
• Current rising or falling edge trigger.
• Observed previous waveform before triggering (negative delay).
• Can freeze the waveform image at any time (HOLD function).

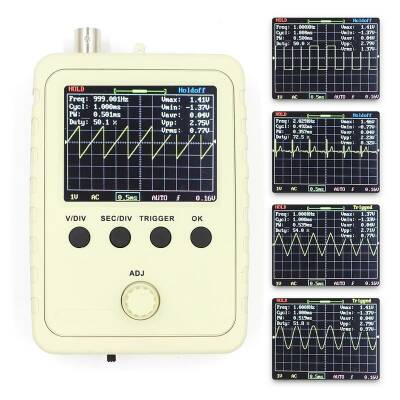

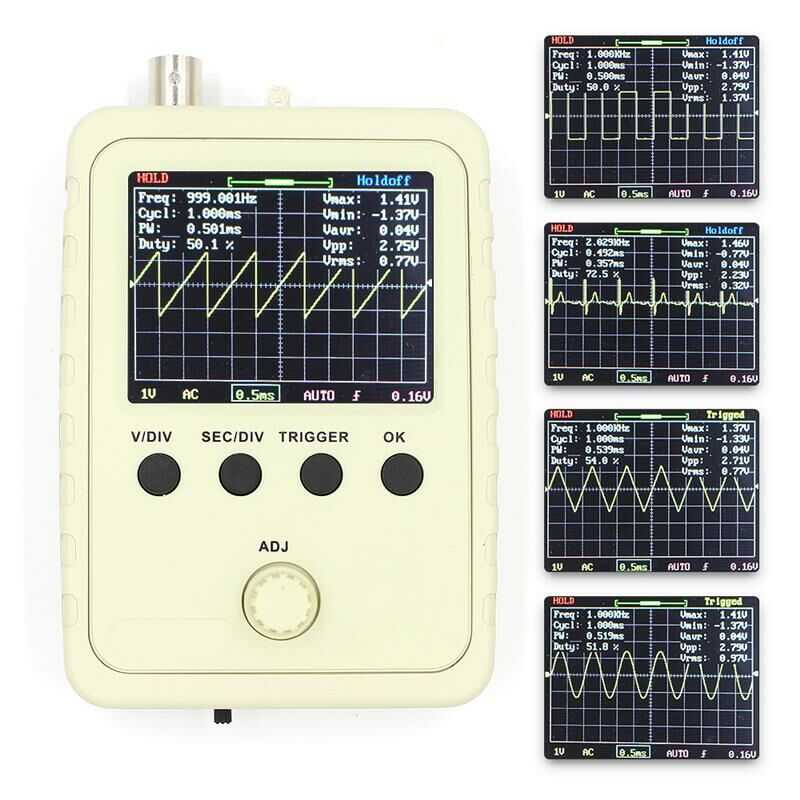

• The waveform parameter contains frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values. digital display.
• Waveform storage function: does not lose the waveform after turning off.
• Short circuit and open circuit detection: can help the user find the soldering error.
• TFT controller recognition function.
• SMD soldered, more suitable for beginners.
• Maximum Real-Time Sampling Rate: 1MSa/s
• Analog Bandwidth: 0- 200KHz
• Sensitivity Range: 5mV / div-20mV / idv
• Maximum Input Voltage: 50Vpk (1X probe)
• Input Impedance: 1M ohm / 20pF
• Accuracy: 12 bit
• Record Length: 1024 points
• Combining Modes: DC / AC / GND
• Time Base Interval: 500s / Div - 10us / Div
• Trigger Modes: Auto, Normal and Single
• Trigger Position: Buffer Center
• Supply Voltage: DC 9V (8-10V)
• Current Consumption: ~ 120mA @ 9V
• Main board size: 94 * 65mm / 3.7 * 2.56in
• Analog Board Size: 65 * 47mm / 2.56 * 1.85in
• Screen Size: 52 * 40mm / 2 * 1.57in

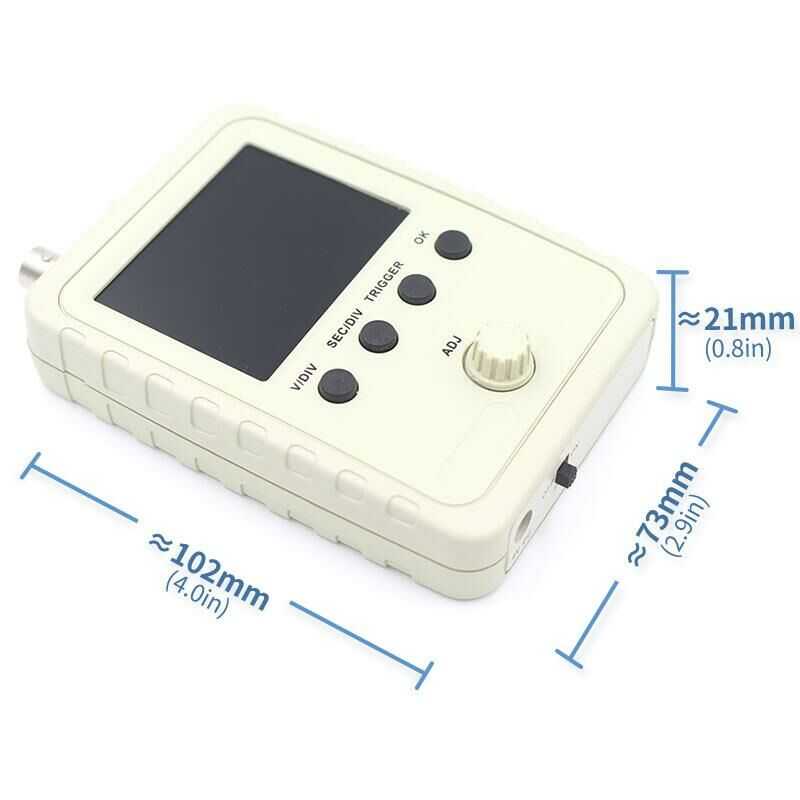

• Package Size: 14.5 * 10 * 3.7cm / 5.7 * 3.94 * 1.45in
• Package Weight : 179g / 6.33oz
