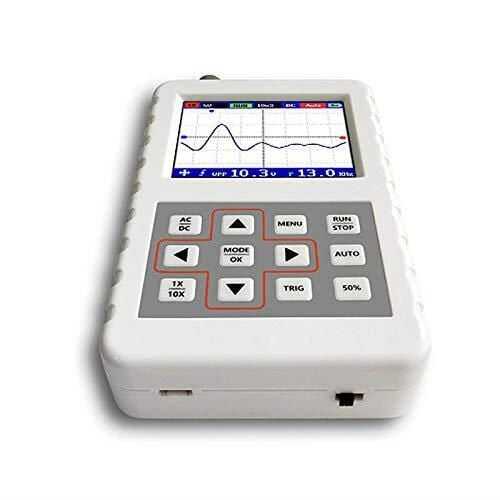

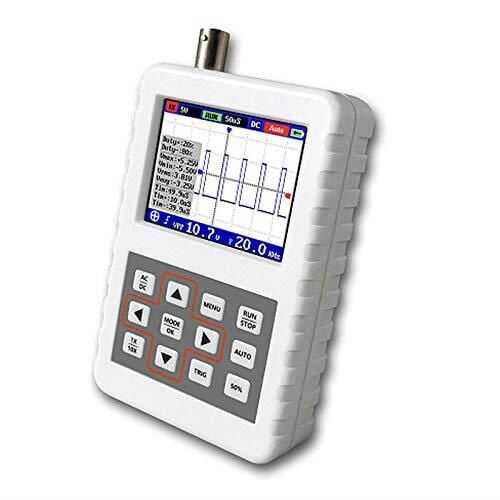

DSO PRO Digital Oscilloscope 5MHz 20MS/s



DSO FNIRSI PRO is a full-function, high-benefit, high-performance and cost-effective for maintenance industry and R&D industry It is a handheld oscilloscope. The oscilloscope has a real-time sampling rate of up to 20MS/s and an analog bandwidth of 5MHz. With full trigger function (single, normal, automatic), both periodic analog signal and aperiodic digital signal can be used freely. Large time-based scan mode can monitor slow level changes. Equipped with a high efficiency button AUTO, the measured waveform can be displayed without complex adjustment. Display 2.4 inch High Definition LCD screen with 320*240 resolution. Extremely convenient and fast waveform storage function, built-in 16MB storage space, maximum storage of 500 waveform photos. Powerful waveform file manager supports thumbnail browsing, viewing, detail view, flipping, deleting and other functions. Built-in 1200mAh rechargeable lithium battery, can be continuously charged for 3 hours at a time. Day mode and night mode can be changed according to their own preferences.



DSO PRO Features:

• Memory compression technology, waveform refresh screen does not flicker
• Afterglow display technology
• 2.4 inch color screen
• 5MHz analog bandwidth @ 20MS/s sampling rate
• Fast waveform Storage
• Built-in 16M storage space, maximum storage of 500 waveform photos
• Powerful waveform file manager, supporting thumbnail browsing, viewing, detail viewing, flipping, deleting and other functions
• High measuring voltage range, 1X can measure 0~40V, 10X can measure 40~800V
• Measurement of up to 11 parameters: VPP, Vmax, Vmin, Vavg, Vrms, Frequency, Duty+, Duty-, Time +, Time-, Time
• At any time, the waveform display (pause function) is frozen
• Equipped with a high-efficiency button AUTO
• Full trigger function (single, normal, automatic)
• Built-in 1200mAh rechargeable lithium battery, can be continuously charged for 3 hours at a time
• Day mode and night mode
• Ultra-small volume, easy to carry
• Analog bandwidth: 5 MHz
• Maximum real-time sampling rate: 20MS/s
• Vertical sensitivity: 50 mV/ div ~ 200 V / div
• Horizontal time base range: 50S / div ~ 250nS / div
• Maximum input voltage: 40 V (1X probe), 800 V (10X probe)
• Storage depth: 40KB
• Input resistance: 1M
• ADC precision: 8 bit
• Coupling mode: AC / DC
• Trigger mode: Single, Normal, Auto
• Trigger edge: Rising / falling edge
• External trigger voltage 0 - 40 V
• Display: 2, 4 inches @ 320 * 240
• Power supply: 1200 mAh lithium battery
• Dimension: 107 x 70 x 24 mm
• Weight: 150g
