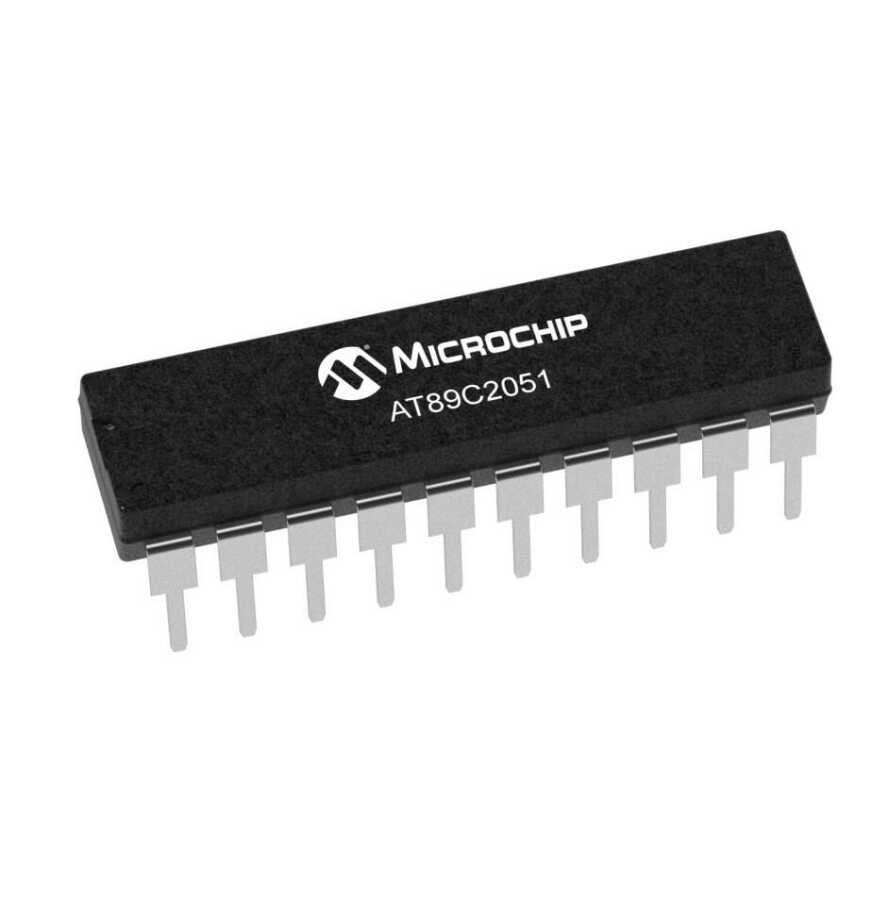

AT89C2051-24PU DIP-20 24MHz Microcontroller
Low-voltage, high-performance CMOS 8-bit microcomputer with 2KB flash programmable and erasable read-only memory. The device is manufactured using Microchip high-density non-volatile memory technology and is compatible with the industry standard MCS-51 instruction set. This versatile 8-bit CPU with flash provides a highly flexible and cost-effective solution for many embedded control applications.
Specifications
Product Code |
AT89C2051-24PU |
Core Processor |
8051 |
Core Size |
8 bit |
Speed |
24MHz |
I/O Count |
15 |
Voltage - Feed |
4V ~ 6V |
Program Memory Size |
2KB (2K x 8) |
Program Memory Type |
FLASH |
RAM Size |
128x8 |
Number of Pins |
20 |
