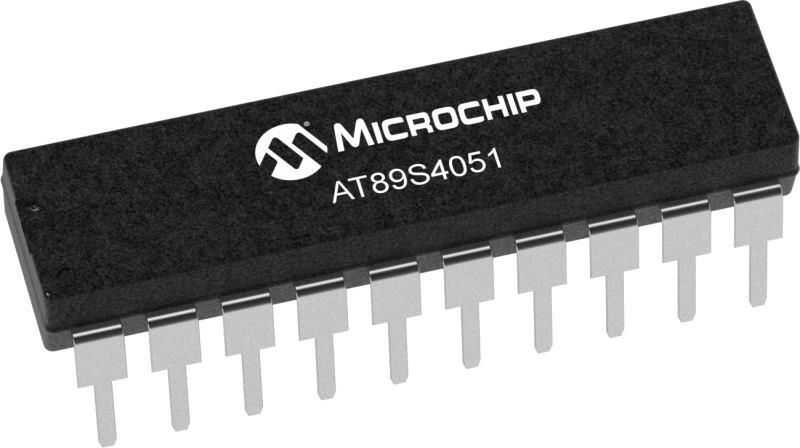

AT89S4051-24PU DIP-20 24MHz Microcontroller

Ratings & Reviews (0)
Comment
Brand: Atmel
Product Code: KOM.MKD.02.000052
Stokta son 1 ürün
158.40 TL + VAT
VAT Included: 190.08 TL

AT89S4051-24PU DIP-20 24MHz Microcontroller

AT89S2051/S4051 is a low-voltage, high-performance CMOS 8 with 2K/4K byte In-System Programmable (ISP) Flash program memory bit is a microcontroller. The device is built using Atmel's high-density non-volatile memory technology and is compatible with the industry standard MCS-51 instruction set. The Atmel AT89S2051/S4051 is a powerful microcontroller that combines a versatile 8-bit CPU and Flash on a monolithic chip, providing a highly flexible and cost-effective solution to many embedded control applications. Additionally, the AT89S2051/S4051 is designed to be compatible with AT89C2051/C4051 devices respectively.

AT89S2051/S4051 provides the following standard features: 2K/4K bytes Flash, 256 bytes RAM, 15 bytes I/O line, two 16-bit timer/counters, six-vector, four-level interrupt architecture, full-duplex enhanced serial port, a precision analog comparator, on-chip and clock circuitry. Hardware support for PWM with 8-bit resolution and 8-bit prescaler is achieved by reconfiguring two on-chip timer/counters. Additionally, the AT89S2051/S4051 is designed with static logic for operation down to zero frequency and supports two software-selectable power saving modes. Idle Mode shuts down the CPU while allowing the RAM, timer/counters, serial port, and interrupt system to continue operating. Shutdown mode saves the contents of RAM but freezes all other chip functions until the next external interrupt or hardware reset.

Technical Specifications

Poduct Code  AT89S4051-24PU
Program Memory Type  Flash
Program Memory Size 4 kB
Bus Width 8-Bit
Max Clock Frequency 24MHz
Data RAM Size 256 B
I/O Count 15
Timer/Counter 2
 Operating Voltage Range (V) 2.7 - 6V
Number of Pins 20

Weight(Kg)
0.02
