ATMEGA324A-PU DIP-40 20MHz Microcontroller

Ratings & Reviews (0)
Comment
Brand: Atmel
Product Code: KOM.MKD.02.000033
Stokta 10+ ürün
880.00 TL + VAT
VAT Included: 1,056.00 TL

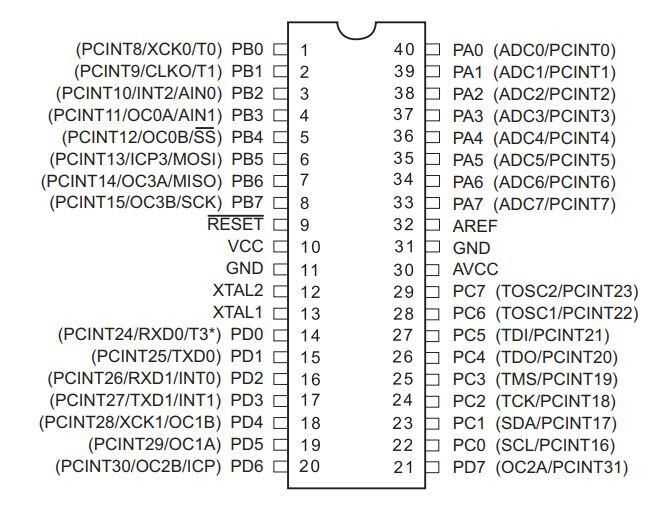

ATMEGA324A-PU DIP-40 20MHz Microcontroller

High performance Microchip 8-bit AVR RISC based microcontroller, 32KB ISP Flash memory, read-write features, 1KB EEPROM, 2KB SRAM, Combines 32 general-purpose I/O lines, 32 general-purpose operating registers, real-time counter, three flexible timers/counters with comparison modes and PWM, two USARTs, one byte-oriented 2-wire serial interface, optional differential input stage with programmable gain Featuring an 8-channel 10-bit A/D converter, programmable watchdog timer with internal oscillator, SPI serial port, a JTAG (IEEE 1149.1 compliant) test interface for on-chip debugging and programming, and six software-selectable power-saving modes. The device operates between 1.8-5.5 volts. Executing powerful instructions in a single clock cycle, the device achieves throughput approaching 1 MIPS per MHz by balancing power consumption and processing speed.

Technical Specifications

Poduct Code  ATMEGA324A-PU
Program Memory Type  Flash
Program Memory Size 32 kB
Bus Width 8-Bit
Max Clock Frequency 20 MHz
Data RAM Size 2 kB
I/O Count 32
Timer/Counter 3
 Operating Voltage Range (V) 1.8 - 5.5V
Number of Pins 40

Weight(Kg)
0.02
