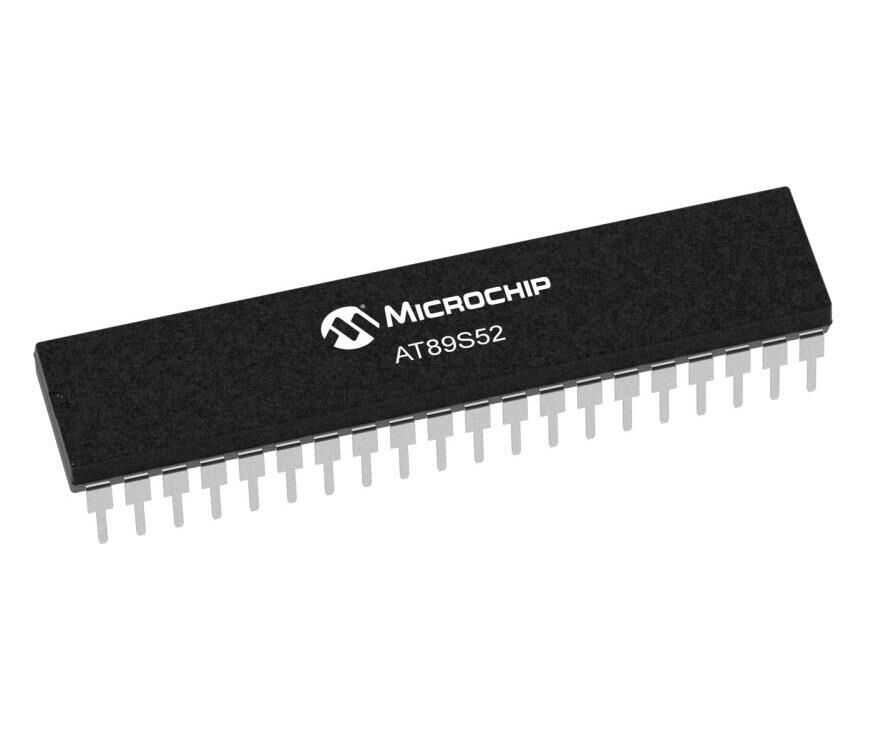

AT89S52-24PU DIP-40 24MHz Microcontroller
Low power, high performance CMOS 8-bit microcontroller with 8KB ISP flash memory. The device uses Microchip high-density, non-volatile memory technology and is compatible with the industry standard 80C51 instruction set and pinout. On-chip flash allows program memory to be reprogrammed within the system or by a conventional non-volatile memory programmer. This powerful microcontroller is suitable for many embedded control applications.
Technical Specifications
| Product Code |
AT89S52 |
| Core |
8051 |
| Program Memory Size |
8kB |
| Data Width |
8-Bit |
| Max Hours Frequency |
24 MHz |
| Data RAM Size |
256 B |
| I/ Number O |
32 |
| Number of Counters |
3 |
| Operating Voltage Range (V) |
4 - 5.5V |
| Number of Pins |
40 |
