ATMEL USB AVRISP XPII AVR Programmer

Ratings & Reviews (0)
Comment
Brand: Motorobit
Product Code: ELK.PRK.01.000026
Stokta son 6 ürün
651.20 TL + VAT
VAT Included: 781.44 TL

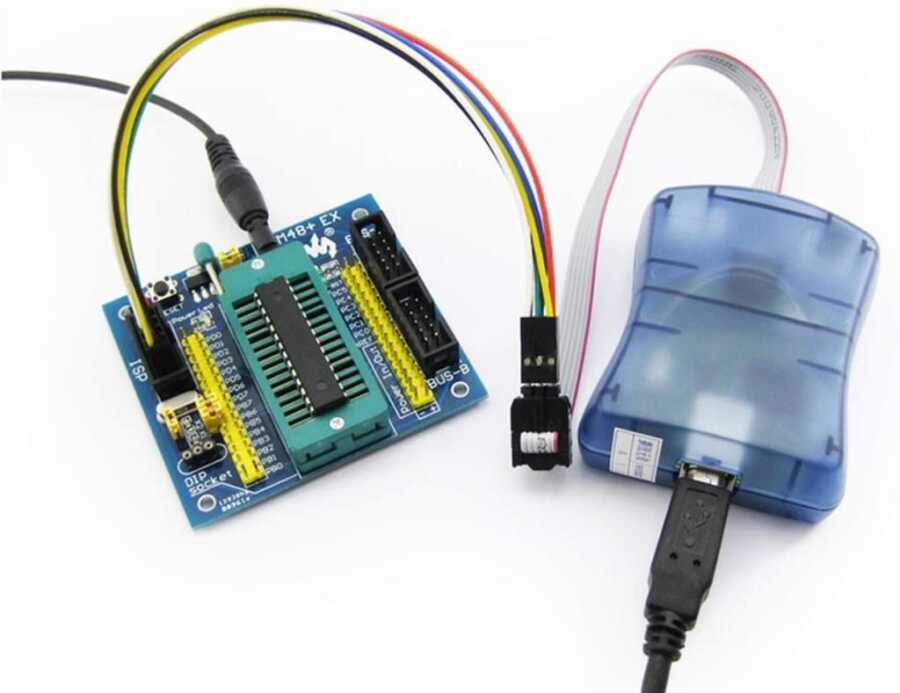

ATMEL USB AVRISP XPII AVR Programmer

ATMEL USB AVRISP XPII AVR Programmer.

  • With ISP or PDI interface Supports all AVR devices and select 51 Devices
  • Programs both Flash and EEPROM
  • Supports Fuses and Lock Bit Programming
  • Based on AT AVRISP mkII firmware< /LI>
  • Can Be Upgraded to Support Future Devices
  • Adjustable ISP programming speed up to 8M frequency
  • USB 2.0 compatible (full speed, 12Mbps)
  • To target panel 3 optional cables
  • USB bus powered, no external power supply required
AVRISP mkII compatible
- Compatible with AT AVR ISP , easy to use, stable and reliable

based on AT AVRISP mkII firmware
- defined as AVRISP mkII in AVRStudio, high-speed programming< /DIV>

Upgradable firmware
- Firmware can be upgraded to Support Future Devices
- Automatic Upgrade

Supported software
- AVR Studio 4/5/6 or WINAVR (GCC) used as front-end software
- IAR, ICCAVR Supports program files created by CVAVR

Device Support
- Supports all AVR devices with USB AVRISP XPII, ISP and PDI Interface. Support for new devices will be added with new versions of AVR Studio.
- Supports AT86RF401 / AT89S51 / AT89S52

Weight(Kg)
0.1
