Open Source LGT8F328P Control Module Development Board

Arduino compatible boards usually use Microphip At mel microcontrollers, but just like GD32 cloning STM32, some companies usually use some It makes MCU clones with improvements. LogicGreen's LGT8F328P microcontrollers are (mostly) designed with Atmel ATMega328P microcontrollers and add functions such as DAC output, PWM-specific functions, compute accelerator (DSC). The clock speed of the MCU is also doubled (32 MHz).

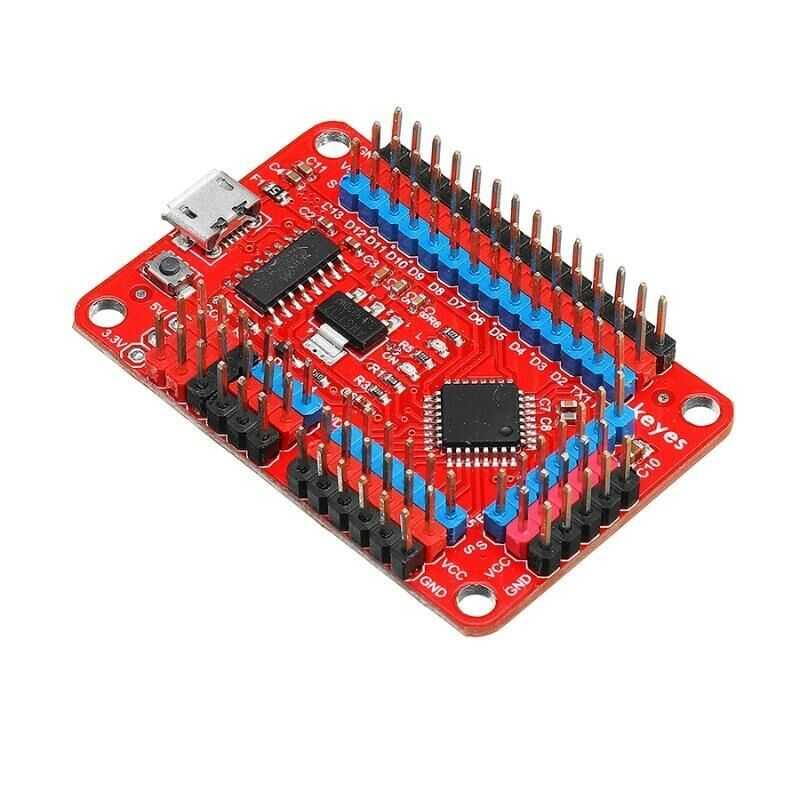

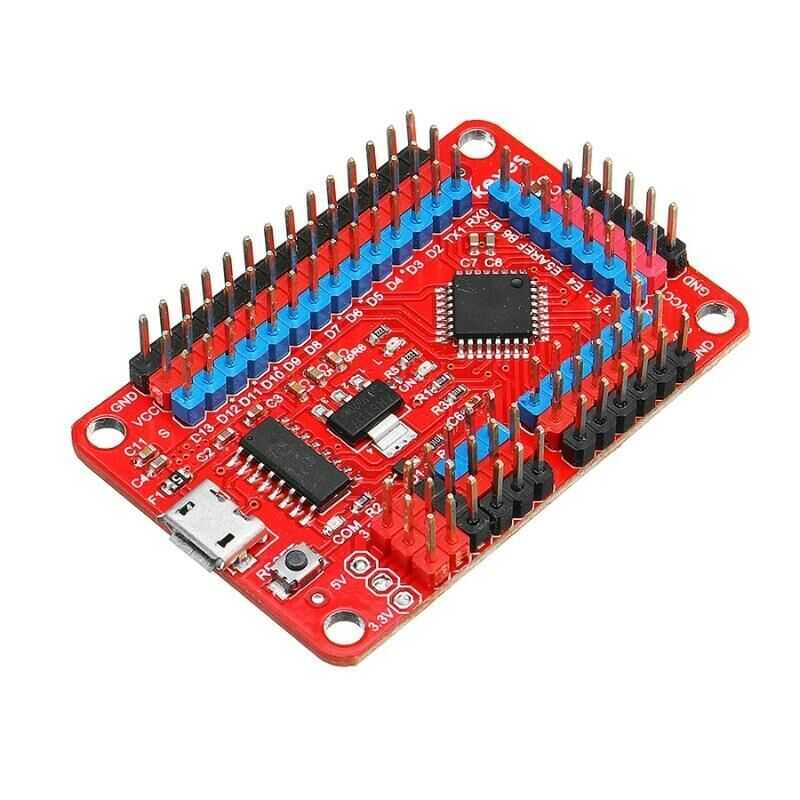

The Keyes LGT8F328P control board is a development board based on the LGT8F328P chip. It is compatible not only with OCROBOT 0.1.2 IDE but also with Arduino IDE. Before using, we need to install driver for the USB serial port chip of the control board. The USB serial port chip of the control board is HT42B534-1.



The control board uploads code and communicates through the Micro USB interface, for which we specifically provide a Micro USB cable. At the same time, in order to facilitate customers to connect the sensor module to the control board, some main signal terminals of our special board control board are extended to 3IN connection mode (GNC VCC signal terminal) where the voltage is The power of VCC terminal is 5V.
